Drawing
Problems
-
Chapter
12
Chapter 12 Arranging and Patterning Objects
385

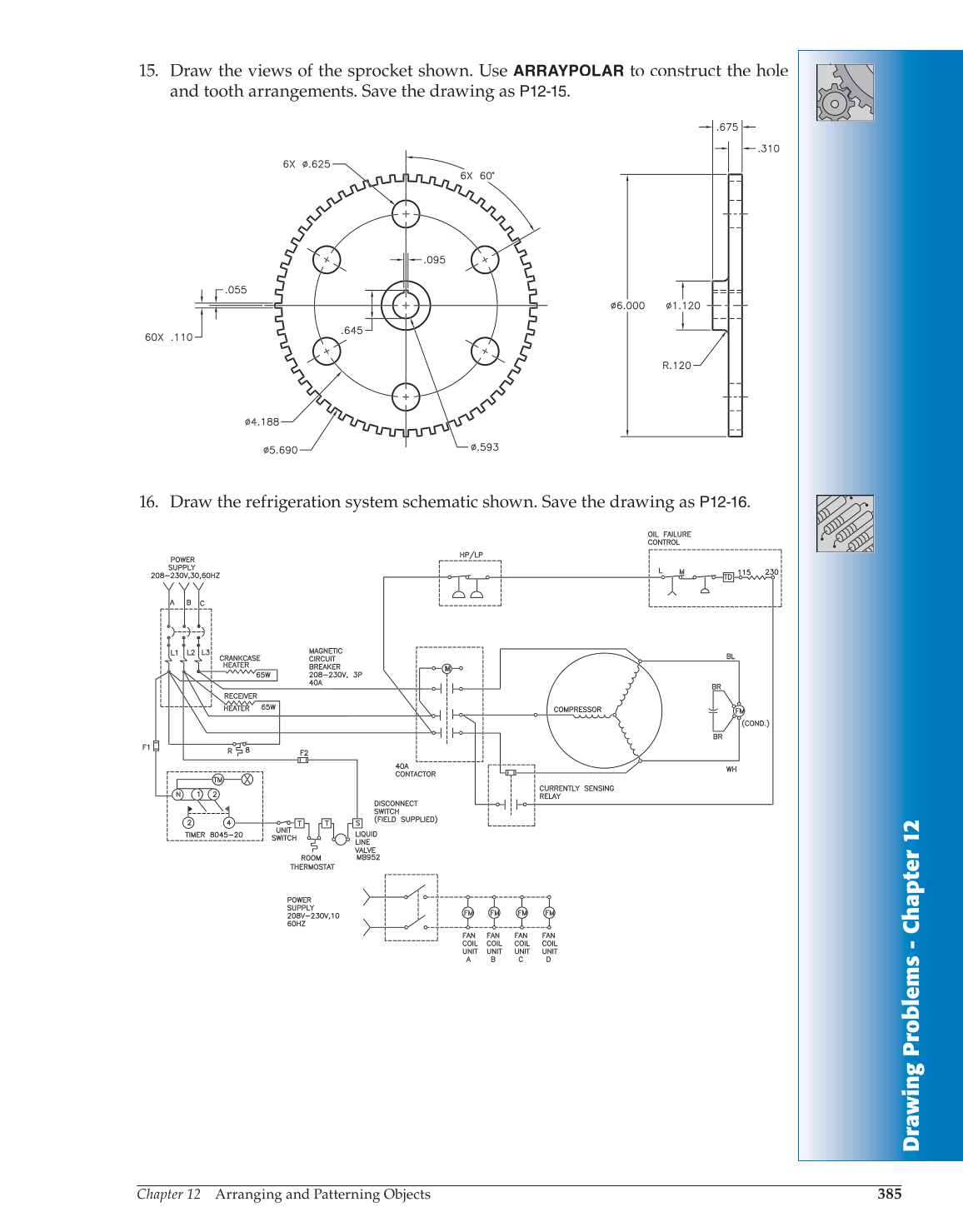

15. Draw the views of the sprocket shown. Use
ARRAYPOLAR
to construct the hole
and tooth arrangements. Save the drawing as P12-15.
16. Draw the refrigeration system schematic shown. Save the drawing as P12-16.
