Drawing
Problems
-
Chapter
11
Chapter 11 Modifying Objects
355
Copyright Goodheart-Willcox Co., Inc.
▼
Intermediate

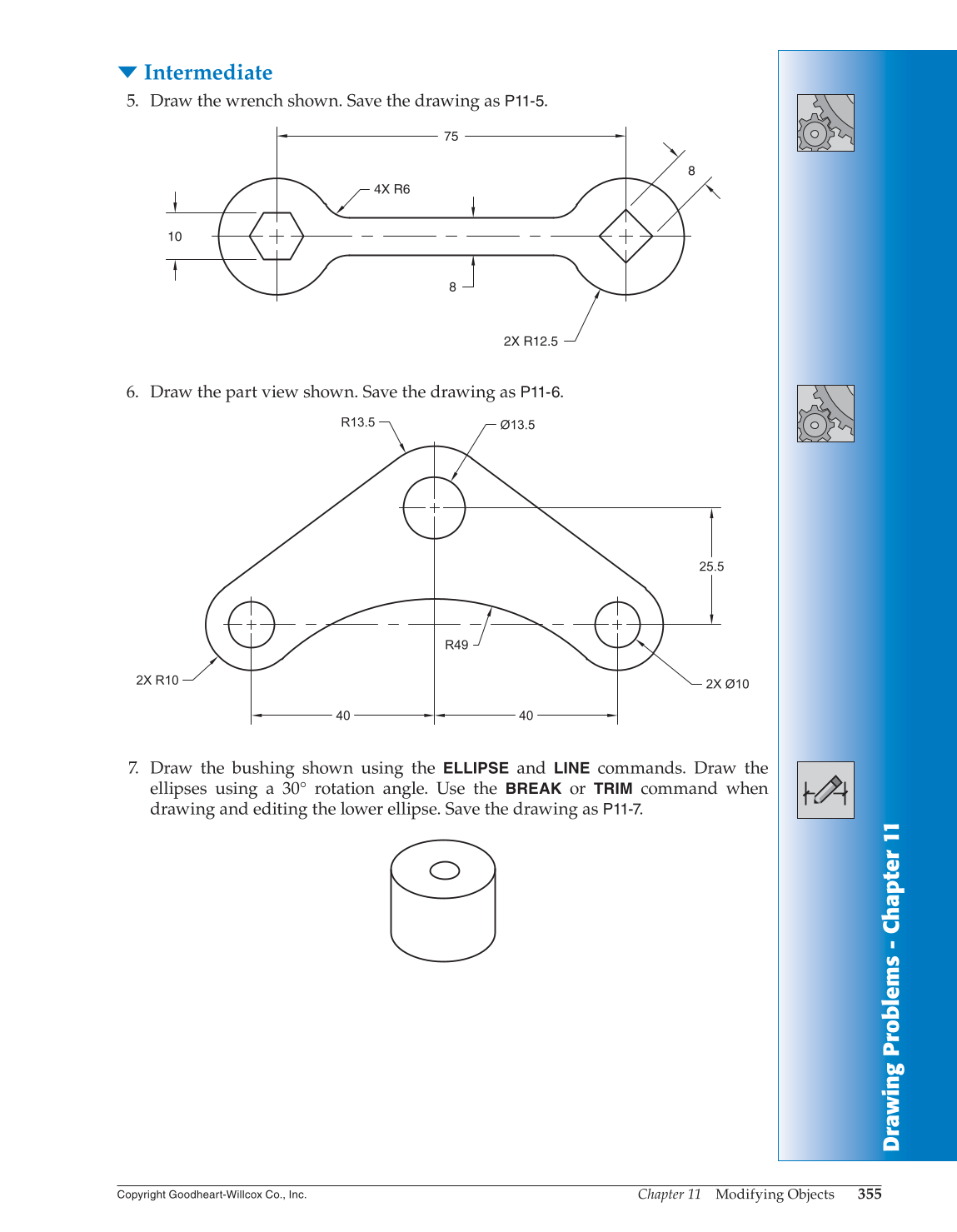

5. Draw the wrench shown. Save the drawing as P11-5.
8
4X R6
10
75
8
2X R12.5
6. Draw the part view shown. Save the drawing as P11-6.
Ø13.5
2X Ø10
25.5
40 40
R13.5
2X R10
R49
7. Draw the bushing shown using the
ELLIPSE
and
LINE
commands. Draw the
ellipses using a 30° rotation angle. Use the
BREAK
or
TRIM
command when
drawing and editing the lower ellipse. Save the drawing as P11-7.
