Drawing
Problems
-
Chapter
11
356
AutoCAD and Its Applications—Basics
Copyright Goodheart-Willcox Co., Inc.

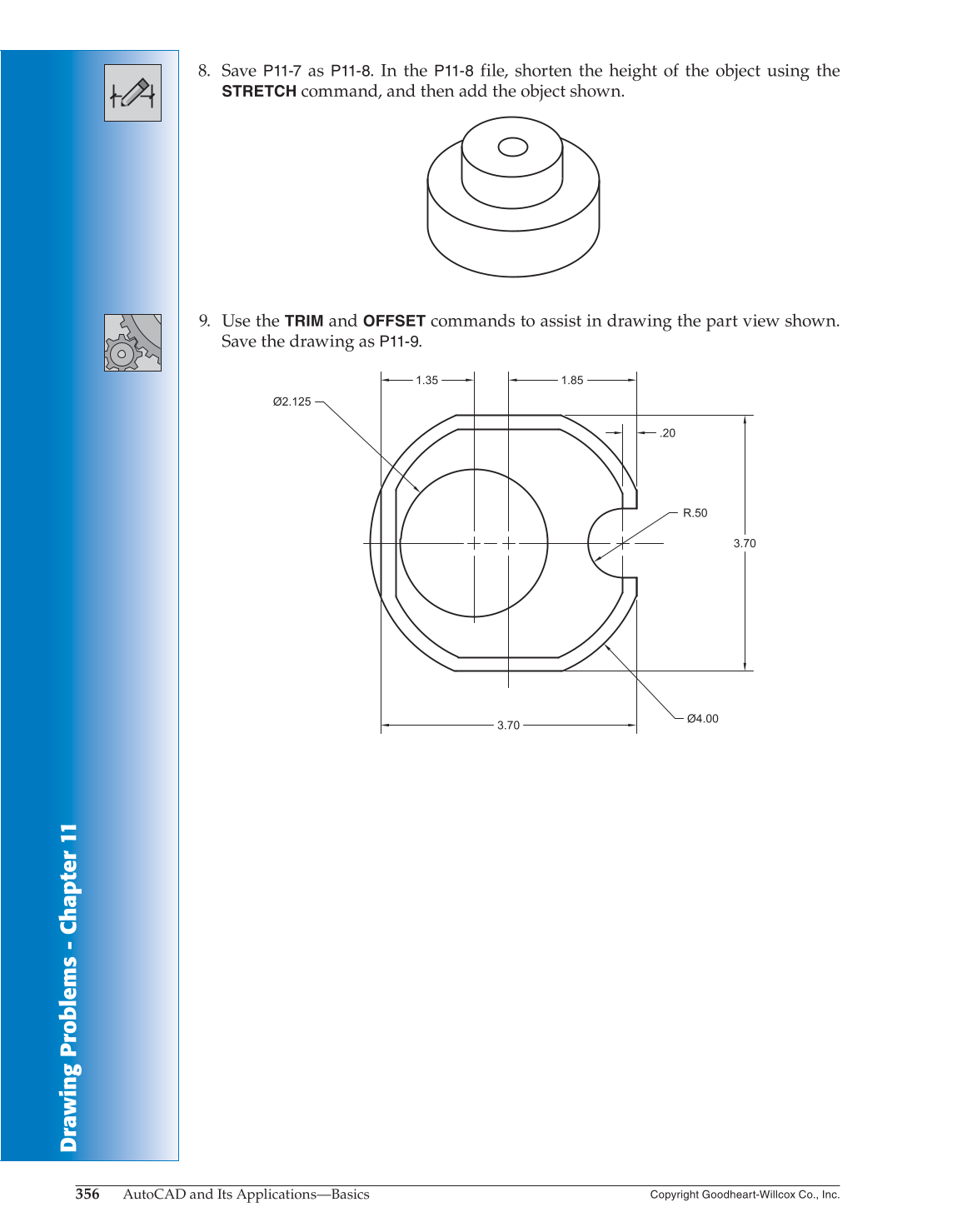

8. Save
P11-7
as P11-8. In the
P11-8
file, shorten the height of the object using the
STRETCH
command, and then add the object shown.
9. Use the
TRIM
and
OFFSET
commands to assist in drawing the part view shown.
Save the drawing as P11-9.
1.35 1.85
.20
3.70
R.50
Ø4.00
Ø2.125
3.70
