Drawing
Problems
-
Chapter
11
358
AutoCAD and Its Applications—Basics
Copyright Goodheart-Willcox Co., Inc.
▼
Advanced

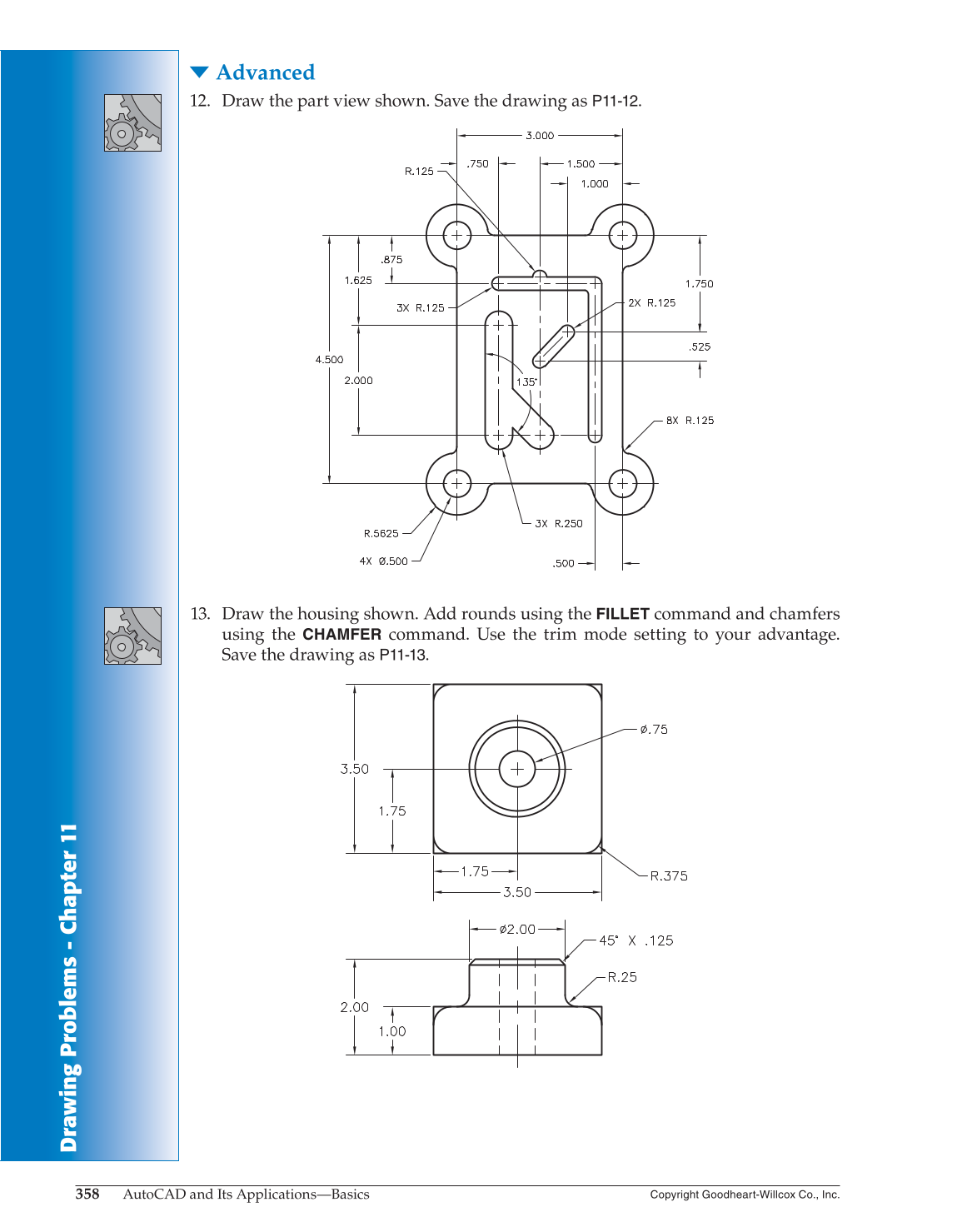

12. Draw the part view shown. Save the drawing as P11-12.
13. Draw the housing shown. Add rounds using the
FILLET
command and chamfers
using the
CHAMFER
command. Use the trim mode setting to your advantage.
Save the drawing as P11-13.
