Chapter 11 Modifying Objects
357
Copyright Goodheart-Willcox Co., Inc.

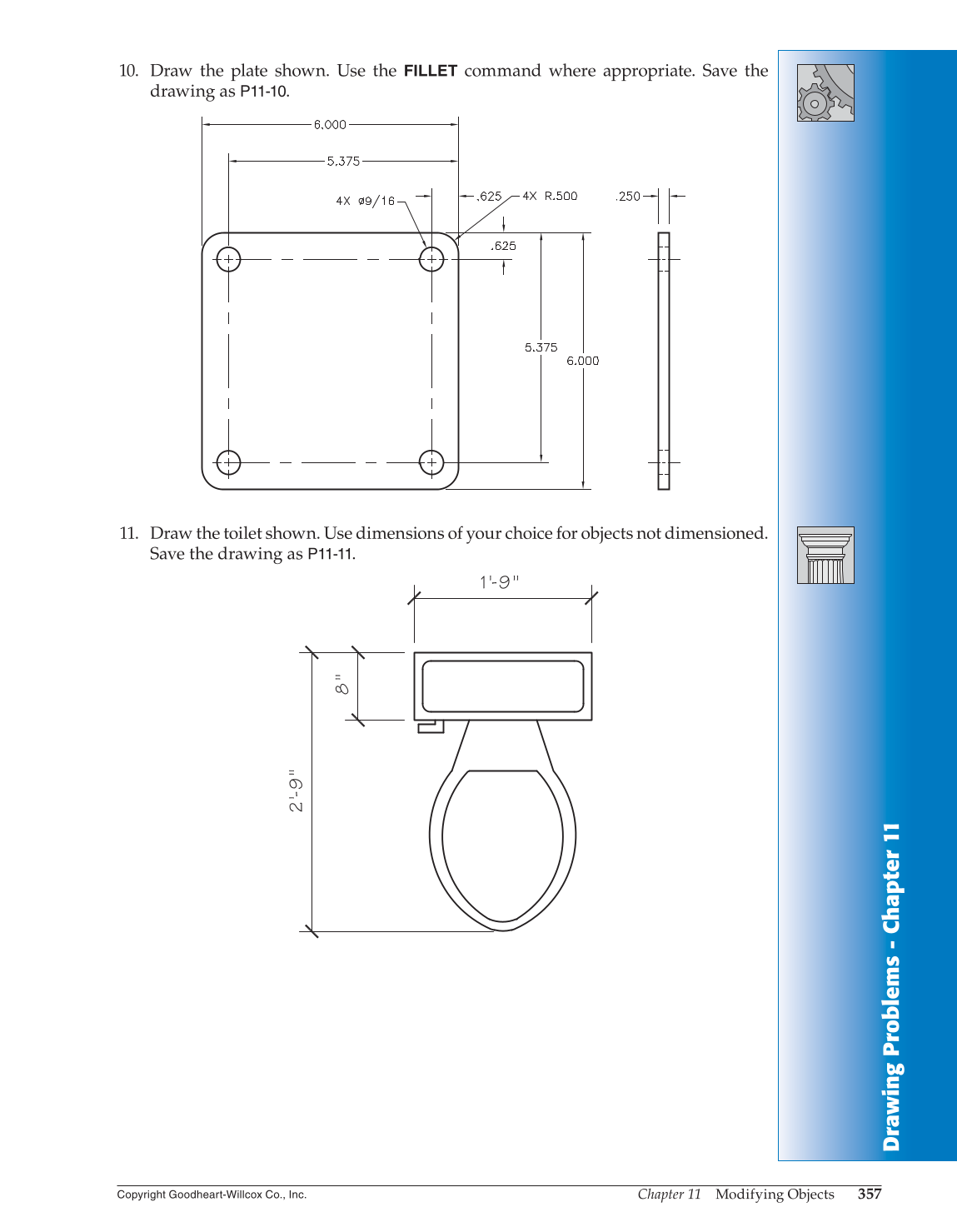

10. Draw the plate shown. Use the
FILLET
command where appropriate. Save the
drawing as P11-10.
11. Draw the toilet shown. Use dimensions of your choice for objects not dimensioned.
Save the drawing as P11-11.
2
'-9"
1 '-9"
8
"
