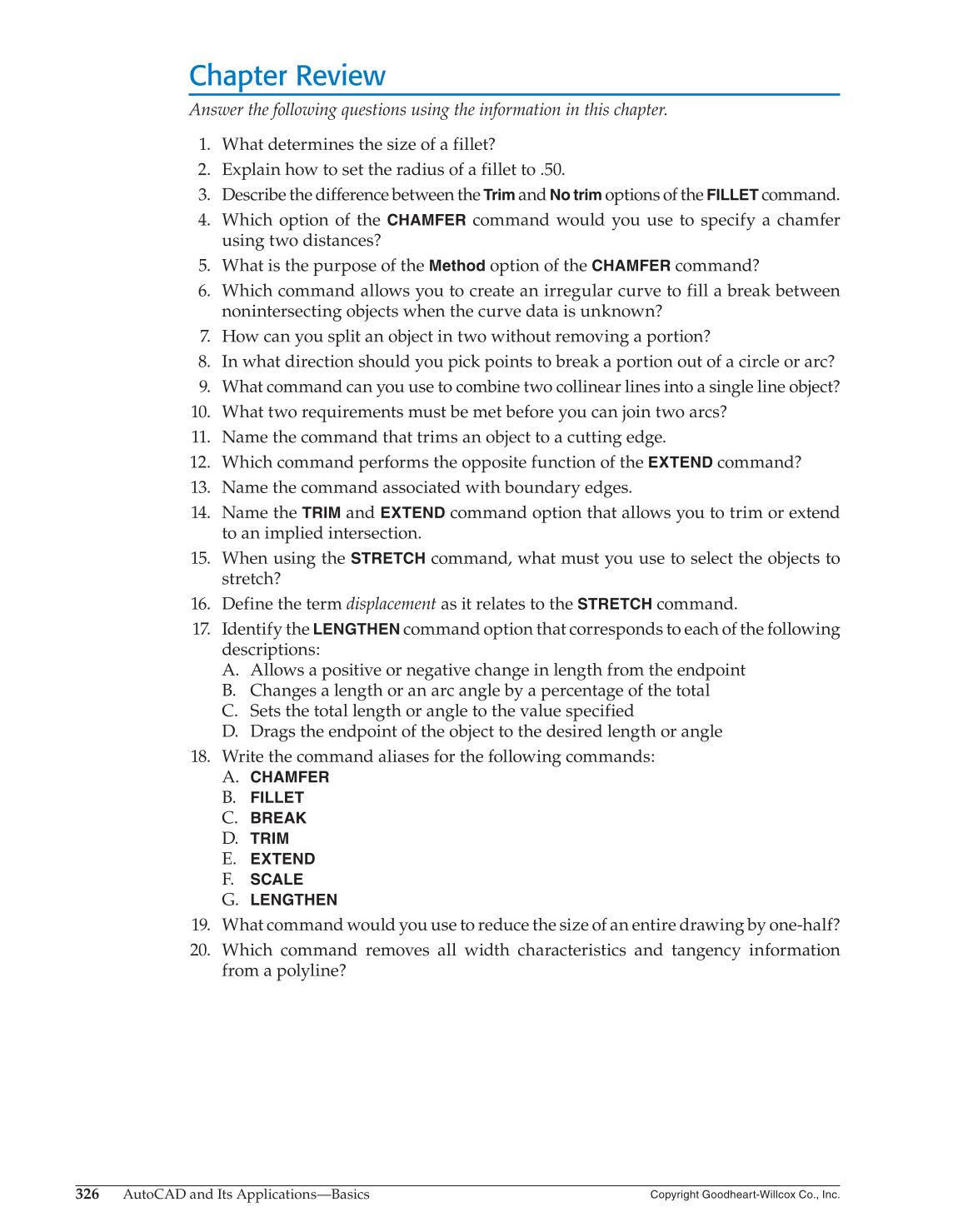

Chapter Review
Answer the following questions using the information in this chapter.
1. What determines the size of a fillet?
2. Explain how to set the radius of a fillet to .50.
3. Describe the difference between the
Trim
and
No trim
options of the
FILLET
command.
4. Which option of the
CHAMFER
command would you use to specify a chamfer
using two distances?
5. What is the purpose of the
Method
option of the
CHAMFER
command?
6. Which command allows you to create an irregular curve to fill a break between
nonintersecting objects when the curve data is unknown?
7. How can you split an object in two without removing a portion?
8. In what direction should you pick points to break a portion out of a circle or arc?
9. What command can you use to combine two collinear lines into a single line object?
10. What two requirements must be met before you can join two arcs?
11. Name the command that trims an object to a cutting edge.
12. Which command performs the opposite function of the
EXTEND
command?
13. Name the command associated with boundary edges.
14. Name the
TRIM
and
EXTEND
command option that allows you to trim or extend
to an implied intersection.
15. When using the
STRETCH
command, what must you use to select the objects to
stretch?
16. Define the term displacement as it relates to the
STRETCH
command.
17. Identify the
LENGTHEN
command option that corresponds to each of the following
descriptions:
A. Allows a positive or negative change in length from the endpoint
B. Changes a length or an arc angle by a percentage of the total
C. Sets the total length or angle to the value specified
D. Drags the endpoint of the object to the desired length or angle
18. Write the command aliases for the following commands:
A.
CHAMFER
B.
FILLET
C.
BREAK
D.
TRIM
E.
EXTEND
F.
SCALE
G.
LENGTHEN
19. What command would you use to reduce the size of an entire drawing by one-half?
20. Which command removes all width characteristics and tangency information
from a polyline?
