AutoCAD and Its Applications—Basics 2016, 23rd Edition Page 328 (348 of 1056)

Drawing
Problems
-
Chapter
1
Drawing
Problems
-
Chapter
11
328
AutoCAD and Its Applications—Basics
Copyright Goodheart-Willcox Co., Inc.
▼

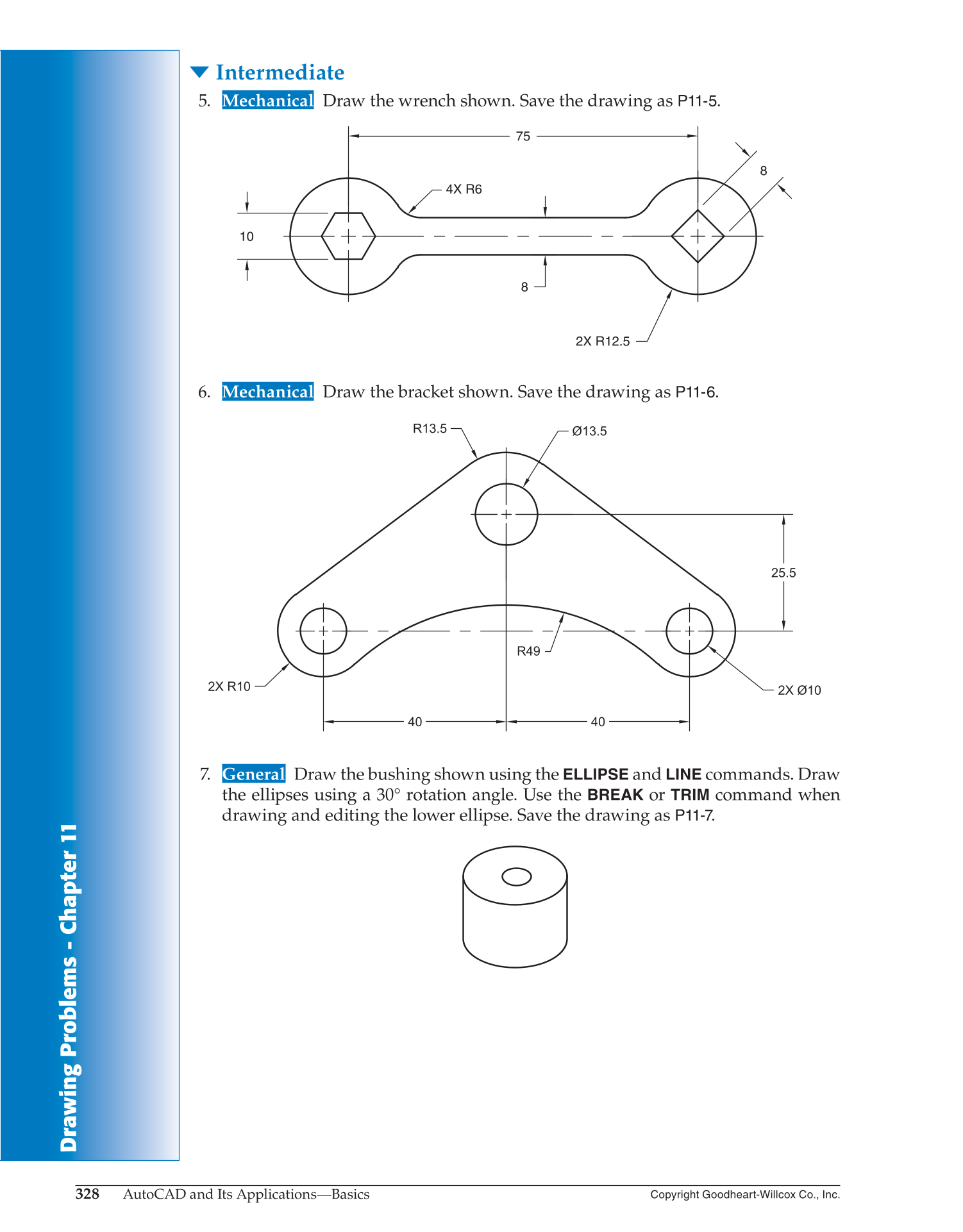

Intermediate
5. Mechanical Draw the wrench shown. Save the drawing as P11-5.
8
4X R6
10
75
8
2X R12.5
6. Mechanical Draw the bracket shown. Save the drawing as P11-6.
Ø13.5
2X Ø10
25.5
40 40
R13.5
2X R10
R49
7. General Draw the bushing shown using the
ELLIPSE
and
LINE
commands. Draw
the ellipses using a 30° rotation angle. Use the
BREAK
or
TRIM
command when
drawing and editing the lower ellipse. Save the drawing as P11-7.

Previous Page Next Page

Resources and Downloads

Attachments

Follow Link Companion Website

Extracted Text (may have errors)

Help

Drawing
Problems
-
Chapter
11
Chapter 11 Modifying Objects
329
Copyright Goodheart-Willcox Co., Inc.

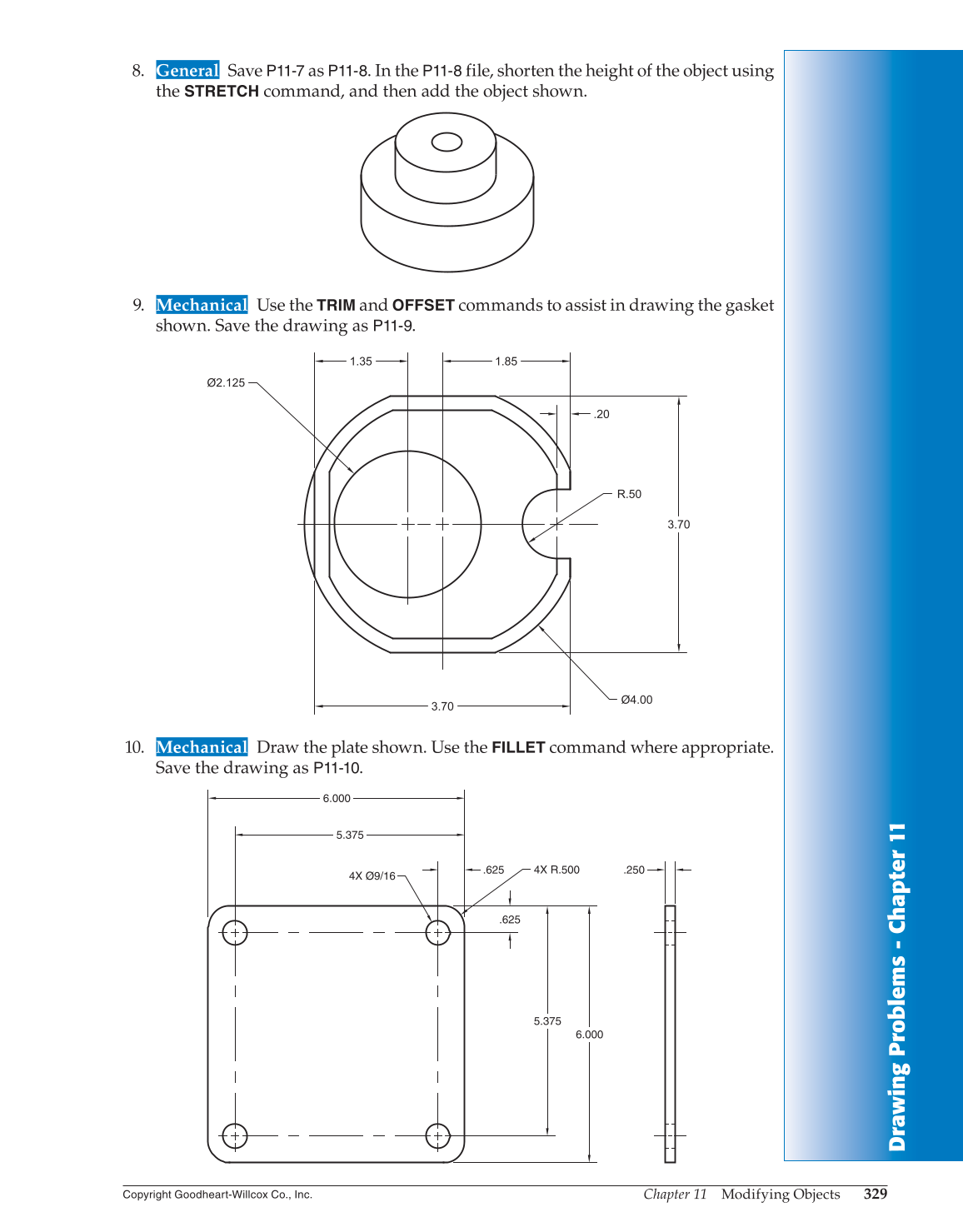

8. General Save
P11-7
as P11-8. In the
P11-8
file, shorten the height of the object using
the
STRETCH
command, and then add the object shown.
9. Mechanical Use the
TRIM
and
OFFSET
commands to assist in drawing the gasket
shown. Save the drawing as P11-9.
1.35 1.85
.20
3.70
R.50
Ø4.00
Ø2.125
3.70
10. Mechanical Draw the plate shown. Use the
FILLET
command where appropriate.
Save the drawing as P11-10.
.625
5.375
6.000
4X Ø9/16
.625
5.375
6.000
.250 4X R.500

Previous Page Next Page

Resources and Downloads

Drawing
Problems
-
Chapter
11
Chapter 11 Modifying Objects
327
Copyright Goodheart-Willcox Co., Inc.
Drawing Problems
Start AutoCAD if it is not already started. Start a new drawing for each problem using an appro-
priate template of your choice. The template should include layers and text styles for drawing the
given objects. Add layers and text styles as needed. Draw all objects using appropriate layers. Use
appropriate text styles, justification, and format. Follow the specific instructions for each problem.
Use only drawing and editing commands and techniques you have already learned. Do not draw
dimensions. Use your own judgment and approximate dimensions when necessary.
▼
Basic
1. General Draw Object A using the
LINE
and
ARC
commands. Make sure the corners
overrun and center the arc on the lines, but the arc should not touch the lines. Use the
TRIM, EXTEND, and
STRETCH
commands to make Object B. Save the drawing as P11-1.
Object A Object B
2. General Save
P11-1
as P11-2. In the
P11-2
file, use the
STRETCH
command to
convert Object A to Object B. Resave the drawing.
Object A Object B
3. Piping Refer to Figure 11-25 in this chapter. Draw the object shown in Option 1.
Stretch the object to twice its length, as shown in Option 2. Stretch the object again
to one and a half times its length. Hint: Use endpoint and midpoint object snap
modes to stretch accurately. Save the drawing as P11-3.
4. Mechanical Draw the part view shown. Use the
CHAMFER
command to create
the inclined surface. Save the drawing as P11-4.
.500
1.000
Ø.250
.375
.750
3.750
.300
2.250
3.250

Previous Page Next Page
