Drawing
Problems
-
Chapter
11
Chapter 11 Modifying Objects
329
Copyright Goodheart-Willcox Co., Inc.

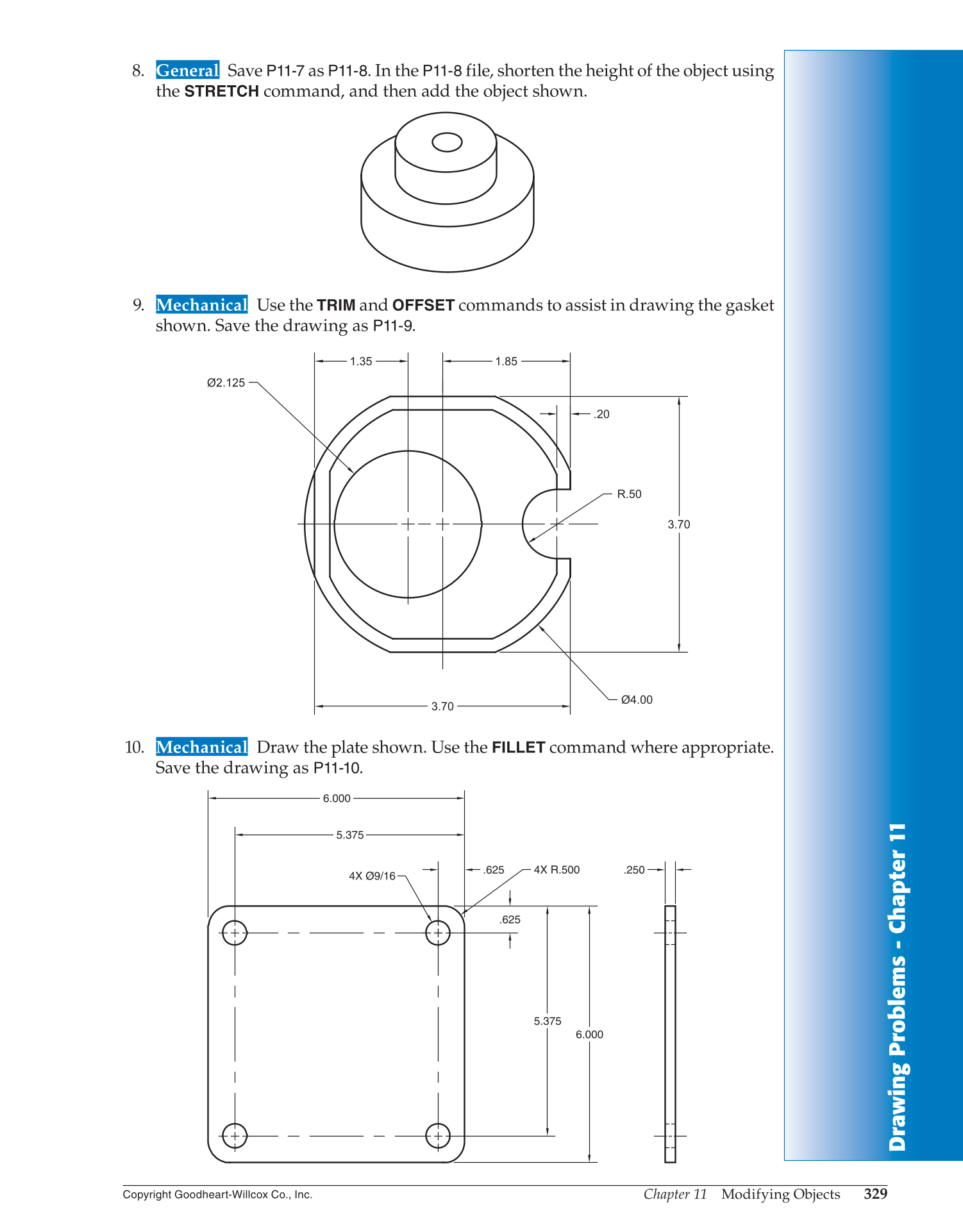

8. General Save
P11-7
as P11-8. In the
P11-8
file, shorten the height of the object using
the
STRETCH
command, and then add the object shown.
9. Mechanical Use the
TRIM
and
OFFSET
commands to assist in drawing the gasket
shown. Save the drawing as P11-9.
1.35 1.85
.20
3.70
R.50
Ø4.00
Ø2.125
3.70
10. Mechanical Draw the plate shown. Use the
FILLET
command where appropriate.
Save the drawing as P11-10.
.625
5.375
6.000
4X Ø9/16
.625
5.375
6.000
.250 4X R.500
