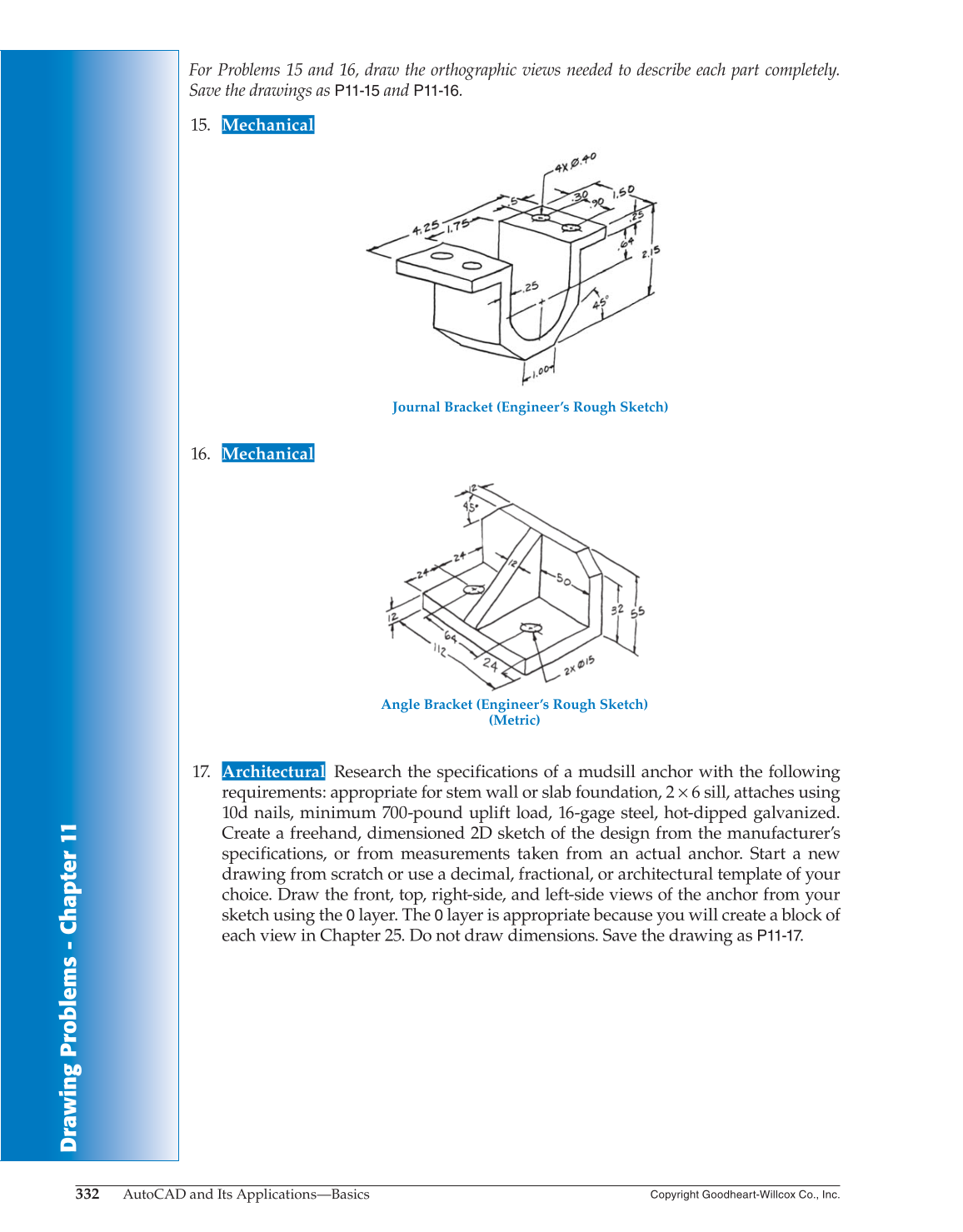

For Problems 15 and 16, draw the orthographic views needed to describe each part completely.
Save the drawings as
P11-15
and P11-16.
15. Mechanical
Journal Bracket (Engineer’s Rough Sketch)
16. Mechanical
Angle Bracket (Engineer’s Rough Sketch)
(Metric)
17. Architectural Research the specifications of a mudsill anchor with the following
requirements: appropriate for stem wall or slab foundation, 2 × 6 sill, attaches using
10d nails, minimum 700-pound uplift load, 16-gage steel, hot-dipped galvanized.
Create a freehand, dimensioned 2D sketch of the design from the manufacturer’s
specifications, or from measurements taken from an actual anchor. Start a new
drawing from scratch or use a decimal, fractional, or architectural template of your
choice. Draw the front, top, right-side, and left-side views of the anchor from your
sketch using the
0
layer. The
0
layer is appropriate because you will create a block of
each view in Chapter 25. Do not draw dimensions. Save the drawing as P11-17.
