Drawing
Problems
-
Chapter
11
Chapter 11 Modifying Objects
331
Copyright Goodheart-Willcox Co., Inc.

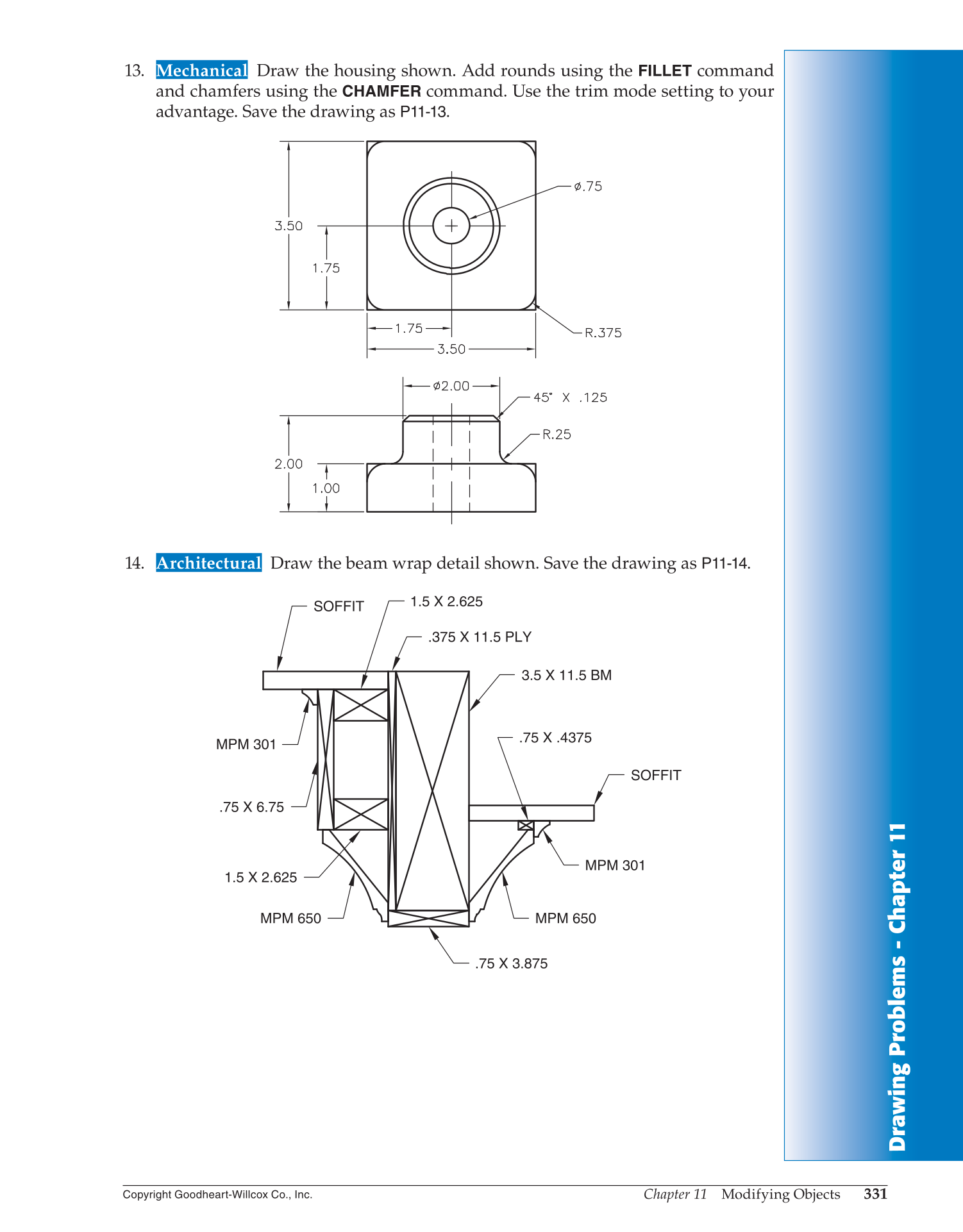

13. Mechanical Draw the housing shown. Add rounds using the
FILLET
command
and chamfers using the
CHAMFER
command. Use the trim mode setting to your
advantage. Save the drawing as P11-13.
14. Architectural Draw the beam wrap detail shown. Save the drawing as P11-14.
3.5 X 11.5 BM
.75 X .4375
MPM 301
SOFFIT
MPM 650
.75 X 3.875
.375 X 11.5 PLY
MPM 650
SOFFIT
.75 X 6.75
MPM 301
1.5 X 2.625
1.5 X 2.625
