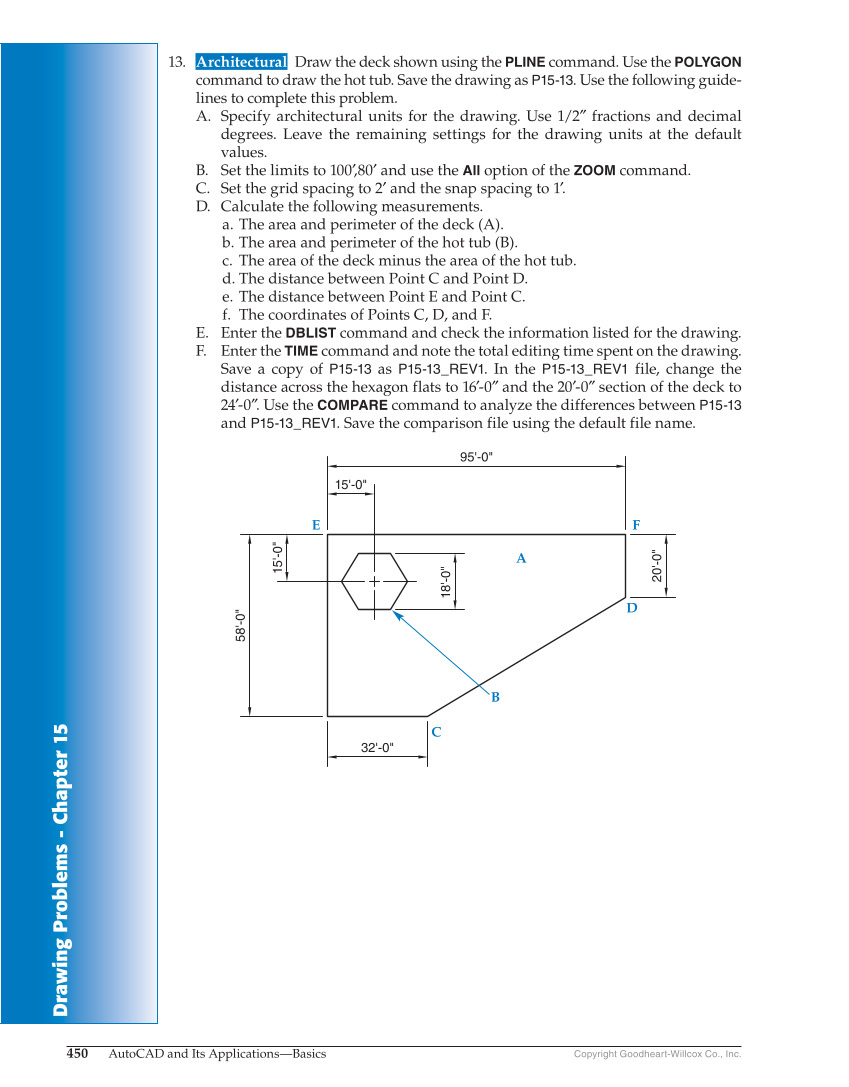

Drawing Problems - Chapter 1 Drawing Problems - Chapter 1 5 450 AutoCAD and Its Applications—Basics Copyright Goodheart-Willcox Co., Inc. 13. Architectural Draw the deck shown using the PLINE command. Use the POLYGON command to draw the hot tub. Save the drawing as P15-13. Use the following guide- lines to complete this problem. A. Specify architectural units for the drawing. Use 1/2″ fractions and decimal degrees. Leave the remaining settings for the drawing units at the default values. B. Set the limits to 100′,80′ and use the All option of the ZOOM command. C. Set the grid spacing to 2′ and the snap spacing to 1′. D. Calculate the following measurements. a. The area and perimeter of the deck (A). b. The area and perimeter of the hot tub (B). c. The area of the deck minus the area of the hot tub. d. The distance between Point C and Point D. e. The distance between Point E and Point C. f. The coordinates of Points C, D, and F. E. Enter the DBLIST command and check the information listed for the drawing. F. Enter the TIME command and note the total editing time spent on the drawing. Save a copy of P15-13 as P15-13_REV1. In the P15-13_REV1 file, change the distance across the hexagon flats to 16′-0″ and the 20′-0″ section of the deck to 24′-0″. Use the COMPARE command to analyze the differences between P15-13 and P15-13_REV1. Save the comparison file using the default file name. 15'-0" 95'-0" 20'-0" 18'-0" 15'-0" 58'-0" 32'-0" B A E F C D
