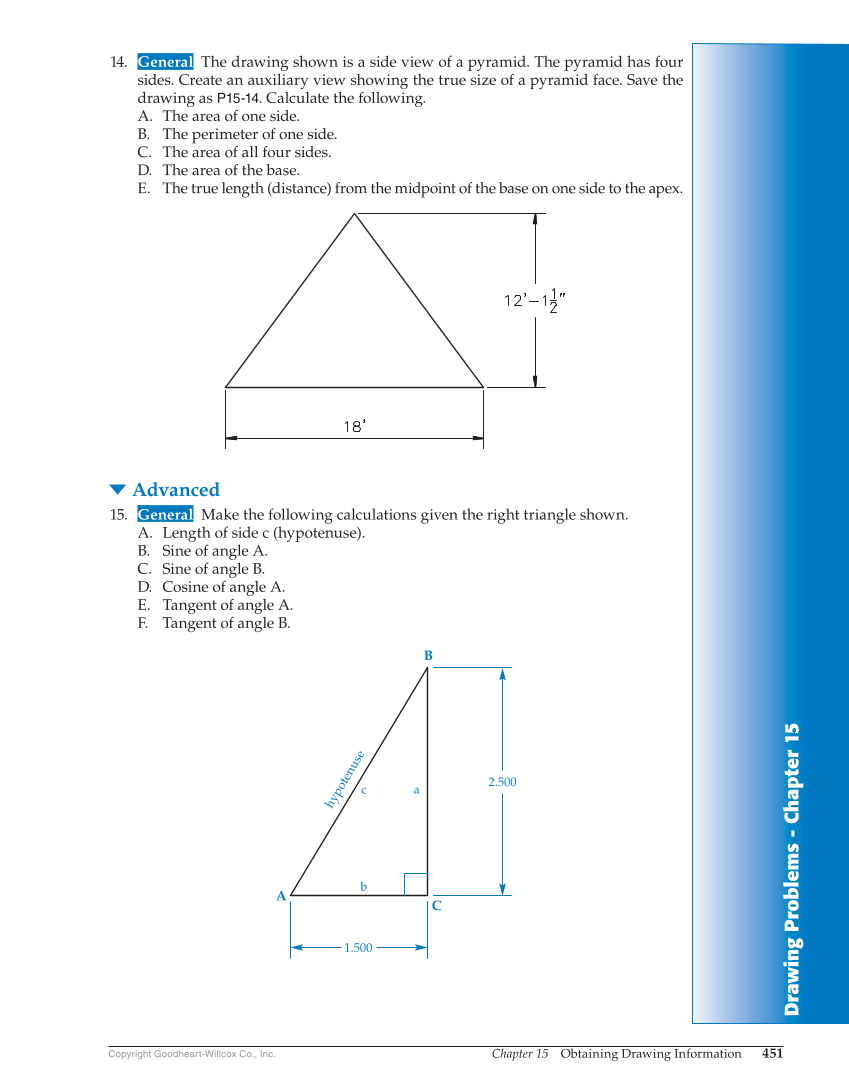

Drawing Problems - Chapter 1 5 Chapter 15 Obtaining Drawing Information 451 Copyright Goodheart-Willcox Co., Inc. 14. General The drawing shown is a side view of a pyramid. The pyramid has four sides. Create an auxiliary view showing the true size of a pyramid face. Save the drawing as P15-14. Calculate the following. A. The area of one side. B. The perimeter of one side. C. The area of all four sides. D. The area of the base. E. The true length (distance) from the midpoint of the base on one side to the apex. Advanced 15. General Make the following calculations given the right triangle shown. A. Length of side c (hypotenuse). B. Sine of angle A. C. Sine of angle B. D. Cosine of angle A. E. Tangent of angle A. F. Tangent of angle B. c b a 2.500 1.500 hypotenuse A C B
