Drawing
Problems
-
Chapter
12
Chapter 12 Arranging and Patterning Objects
371

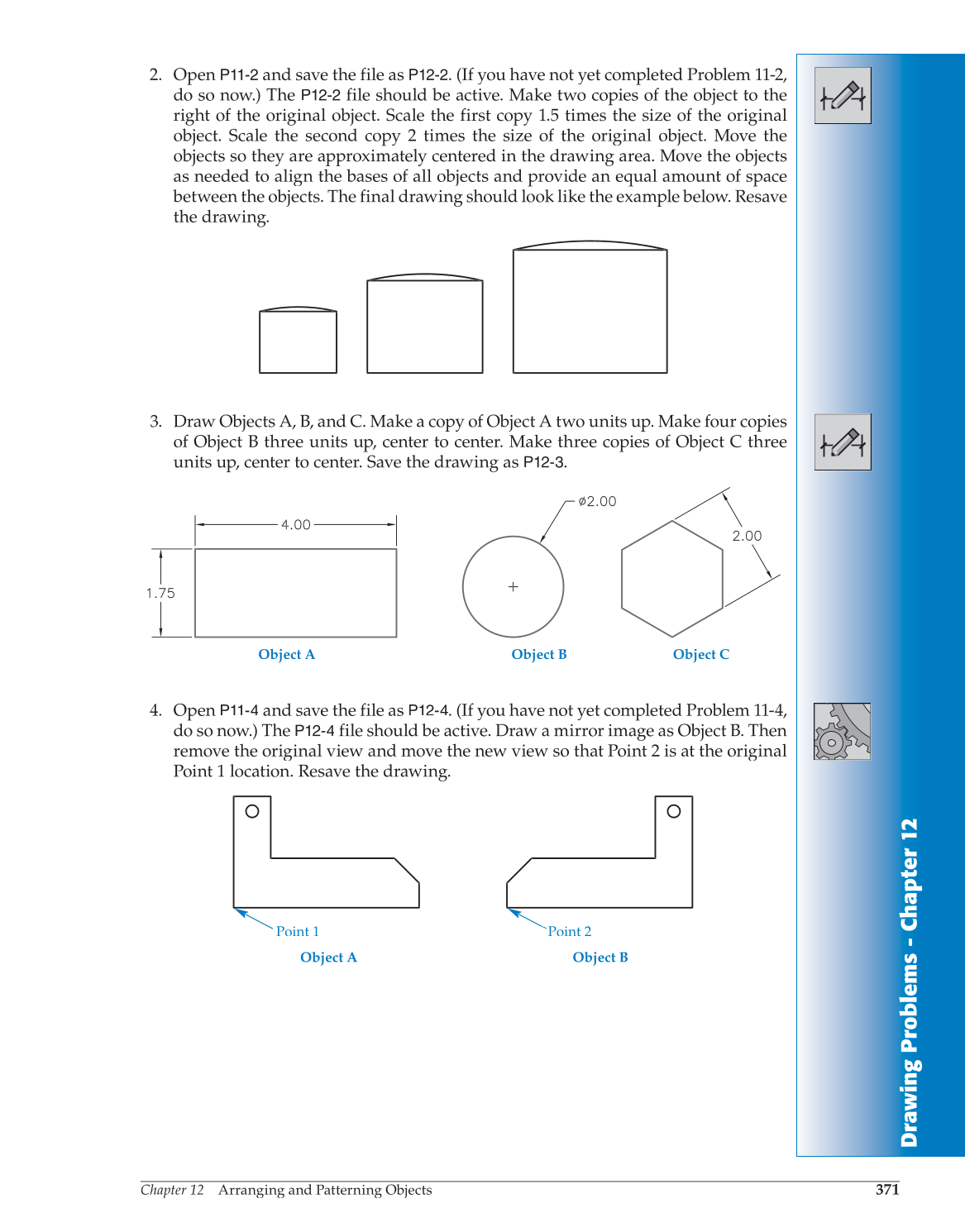

2. Open
P11-2
and save the file as P12-2. (If you have not yet completed Problem 11-2,
do so now.) The
P12-2
file should be active. Make two copies of the object to the
right of the original object. Scale the first copy 1.5 times the size of the original
object. Scale the second copy 2 times the size of the original object. Move the
objects so they are approximately centered in the drawing area. Move the objects
as needed to align the bases of all objects and provide an equal amount of space
between the objects. The final drawing should look like the example below. Resave
the drawing.
3. Draw Objects A, B, and C. Make a copy of Object A two units up. Make four copies
of Object B three units up, center to center. Make three copies of Object C three
units up, center to center. Save the drawing as P12-3.
Object A Object B Object C
4. Open
P11-4
and save the file as P12-4. (If you have not yet completed Problem 11-4,
do so now.) The
P12-4
file should be active. Draw a mirror image as Object B. Then
remove the original view and move the new view so that Point 2 is at the original
Point 1 location. Resave the drawing.
Object A Object B
Point 1 Point 2
