Drawing
Problems
-
Chapter
12
372
AutoCAD and Its Applications—Basics
▼
Intermediate

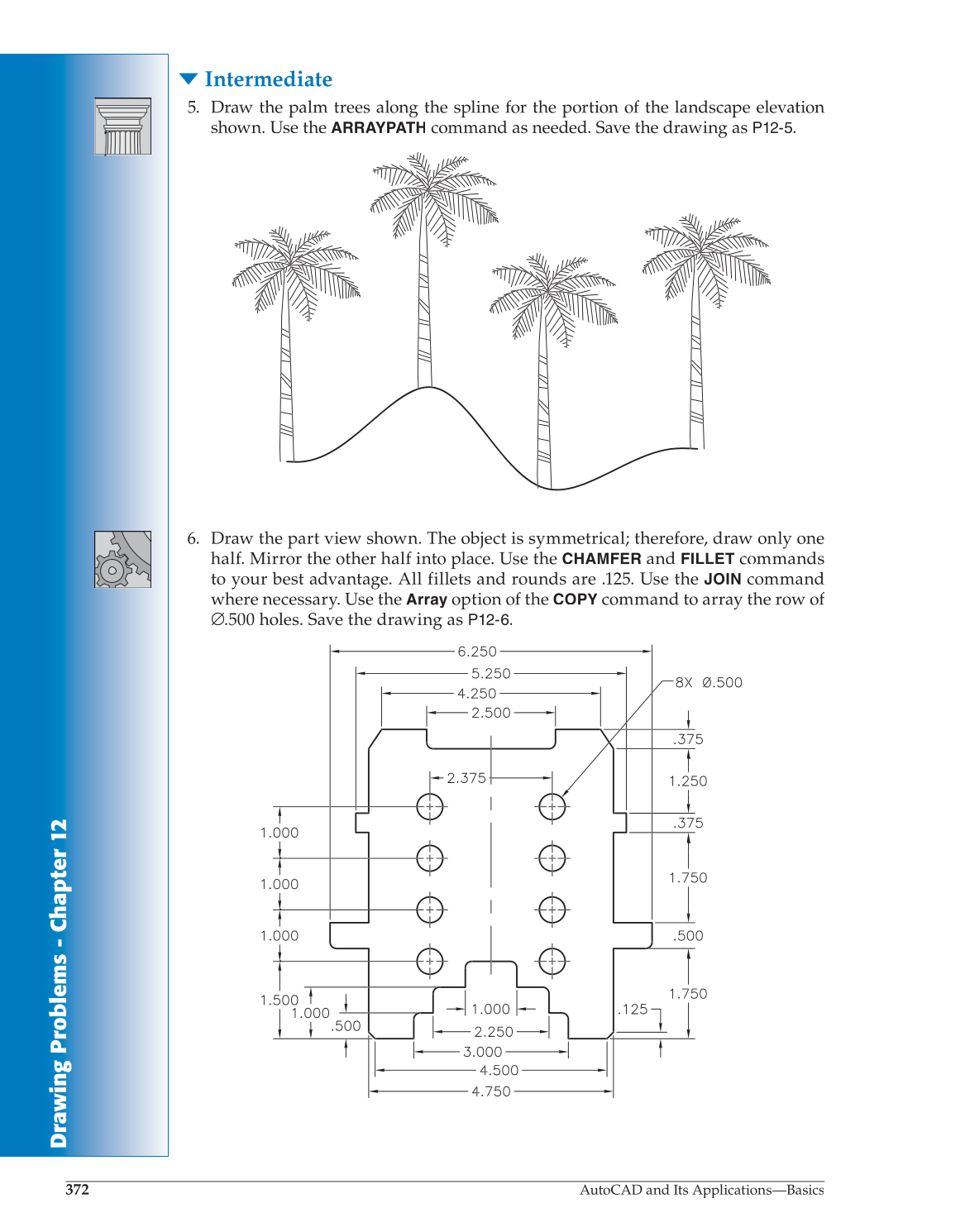

5. Draw the palm trees along the spline for the portion of the landscape elevation
shown. Use the
ARRAYPATH
command as needed. Save the drawing as P12-5.
6. Draw the part view shown. The object is symmetrical; therefore, draw only one
half. Mirror the other half into place. Use the
CHAMFER
and
FILLET
commands
to your best advantage. All fillets and rounds are .125. Use the
JOIN
command
where necessary. Use the
Array
option of the
COPY
command to array the row of
∅.500 holes. Save the drawing as P12-6.
