Chapter 8 Creating and Working with Solid Model Features
221

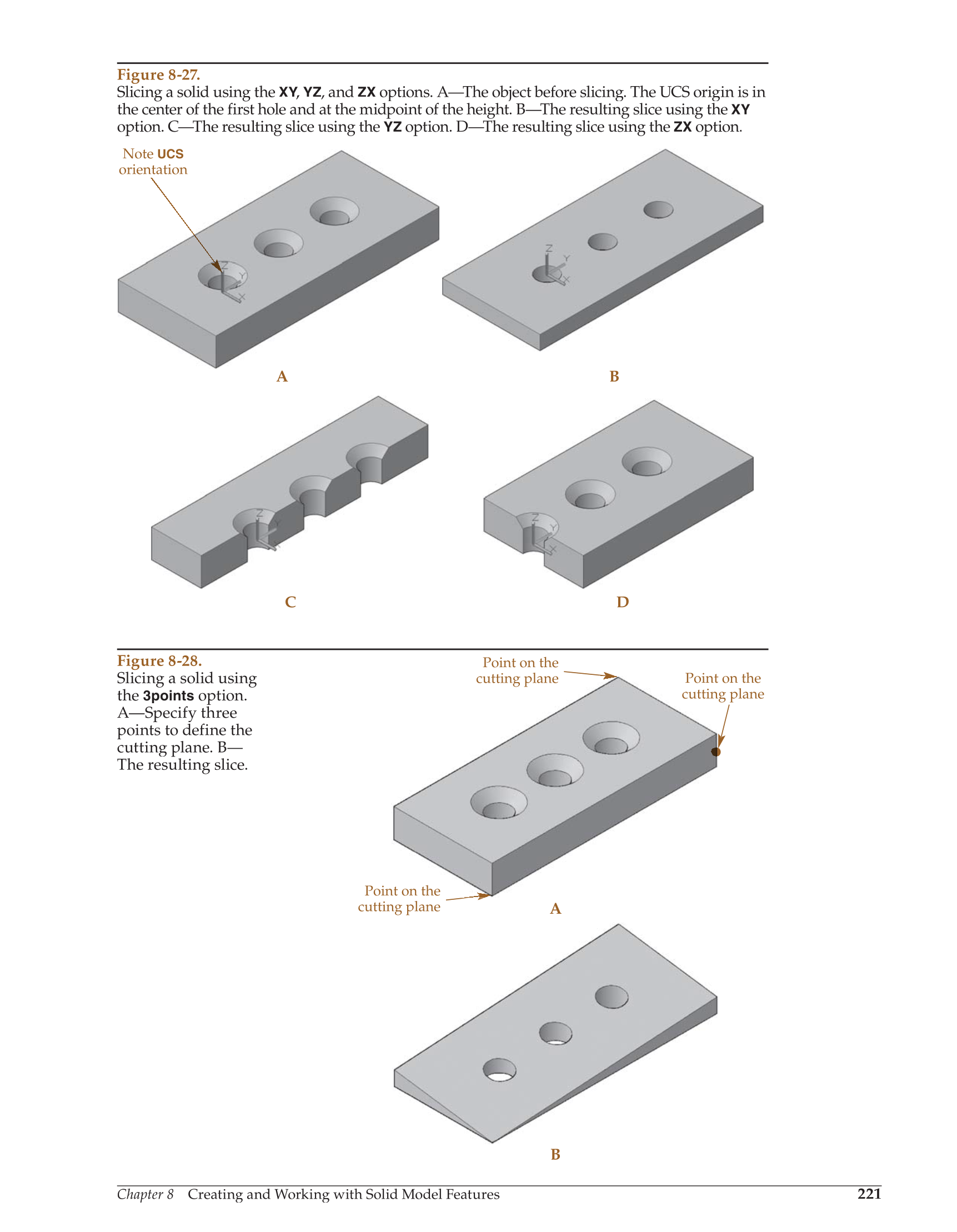

Figure 8-27.
Slicing a solid using the XY,
Y Y
YZ, and
ZX
options. A—The object before slicing. The UCS origin is in
X
the center of the first hole and at the midpoint of the height. B—The resulting slice using the
XY
option. C—The resulting slice using the
YZ
option. D—The resulting slice using the
ZX
option.
X
Note
UCS
orientation
A B
C D
Figure 8-28.
Slicing a solid using
the
3points
option.
A—Specify three
points to define the
cutting plane. B—
The resulting slice.
Point on the
cutting plane
A
B
Point on the
cutting plane
Point on the
cutting plane
