Drawing
Problems
-
Chapter
8
228
AutoCAD and Its Applications—Advanced

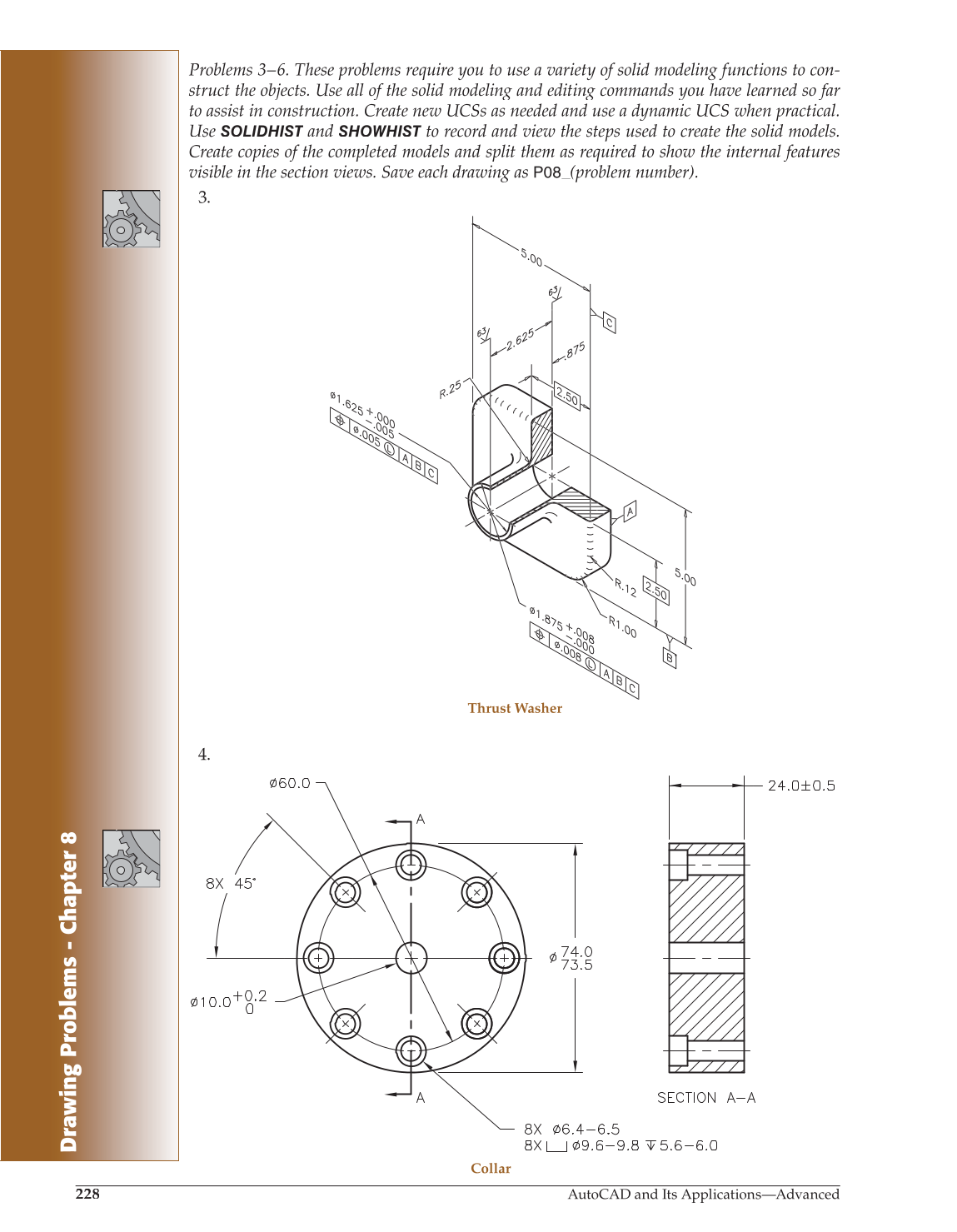

Problems 3–6. These problems require you to use a variety of solid modeling functions to con-
struct the objects. Use all of the solid modeling and editing commands you have learned so far
to assist in construction. Create new UCSs as needed and use a dynamic UCS when practical.
Use
SOLIDHIST
and
T SHOWHIST
to record and view the steps used to create the solid models.
T
Create copies of the completed models and split them as required to show the internal features
visible in the section views. Save each drawing as P08_(problem number).
3.
4.
Thrust Washer
Collar
