Conceptual 2D Wireframe Hidden
Shaded Realistic Shaded with Edges
Sketchy
X-Ray
Shades of Gray Wireframe

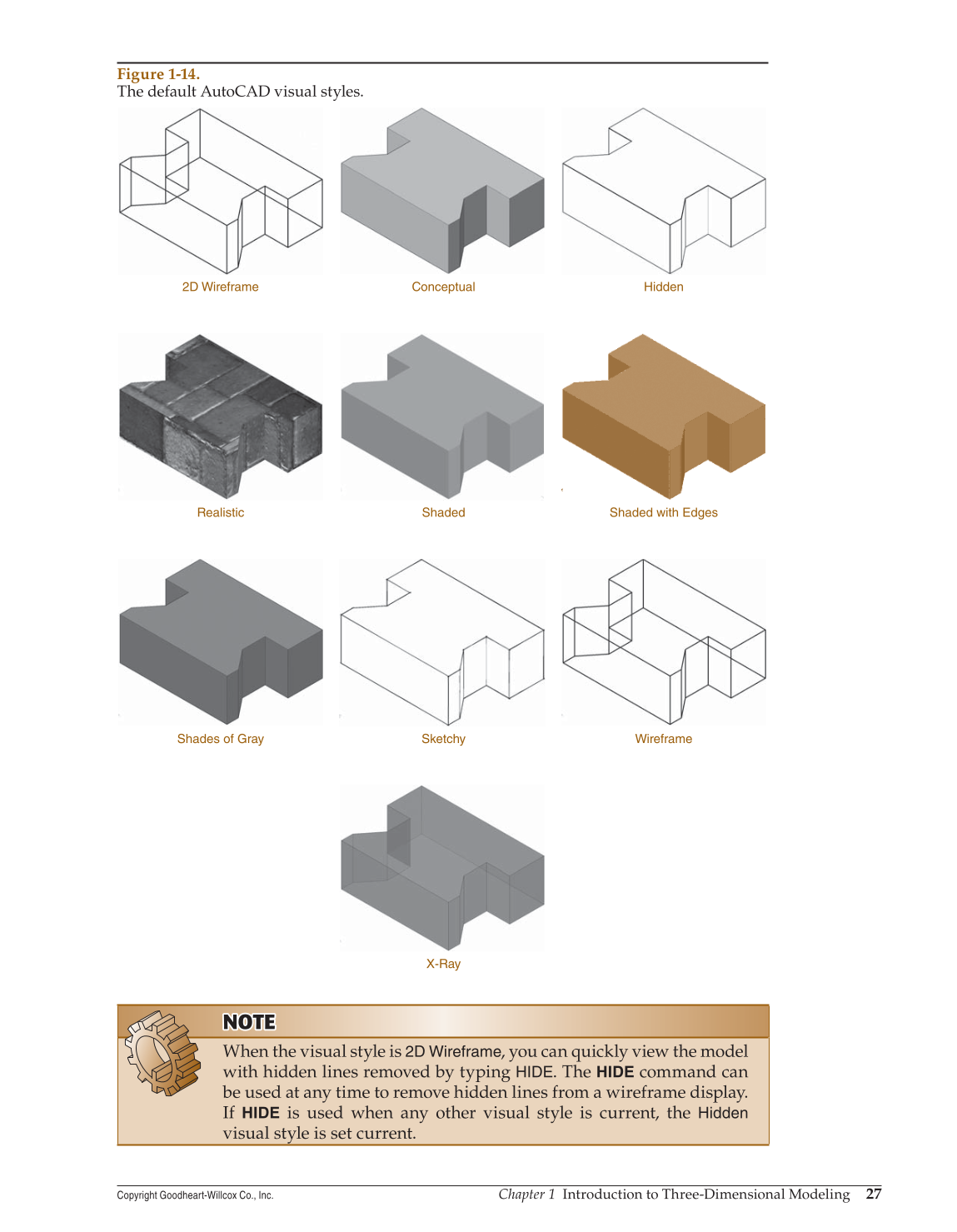

Figure 1-14.
The default AutoCAD visual styles.
NOTE NOTE
When the visual style is
2D
Wireframe, you can quickly view the model
with hidden lines removed by typing HIDE. The
HIDE
command can
be used at any time to remove hidden lines from a wireframe display.
If
HIDE
is used when any other visual style is current, the
Hidden
visual style is set current.
