NOTE NOTE
As you learn AutoCAD, you may want to customize the graphical user interface
according to common tasks and specifi c applications. Use the
Options
dialog box to
change display colors and window elements. To display the
Options
dialog box, pick
the
Options
button at the bottom of the
Application
Menu, or right-click in the drawing
area and select Options…. Use the
Customize User Interface
dialog box, accessed with
the
CUI
command, to customize the ribbon and other AutoCAD-specifi c items.
Start Tab
The
Start Tab
is an element of the AutoCAD fi le tab system and is displayed by
default. Chapter 2 explains fi le tabs. The
Create
page appears by default when you
fi rst launch AutoCAD. See Figure 1-4. The
Get Started
column includes options for
starting a new drawing or opening a saved fi le. Pick the
Start Drawing
button to
start a new drawing. The
Templates
drop-down list below the
Start Drawing
button
lists drawing templates currently found in the default template folder. The high-
lighted template is used to start a new drawing fi le when you pick the
Start Drawing
button. Pick a different template from the list to start a new drawing using the
selected template. The template you select becomes the new default assigned to the
Start Drawing
button.
Use the
Recent Documents
column to open a recently saved fi le or a fi le that has
been pinned to the
Recent Documents
list. Select from the display options below
the list to specify how recent fi les appear. You will learn more about starting new
NEW
AutoCAD
default: A value
maintained by the
computer until
changed.
drop-down list: A
list of options that
appears when you
pick a button that
contains a down
arrow.

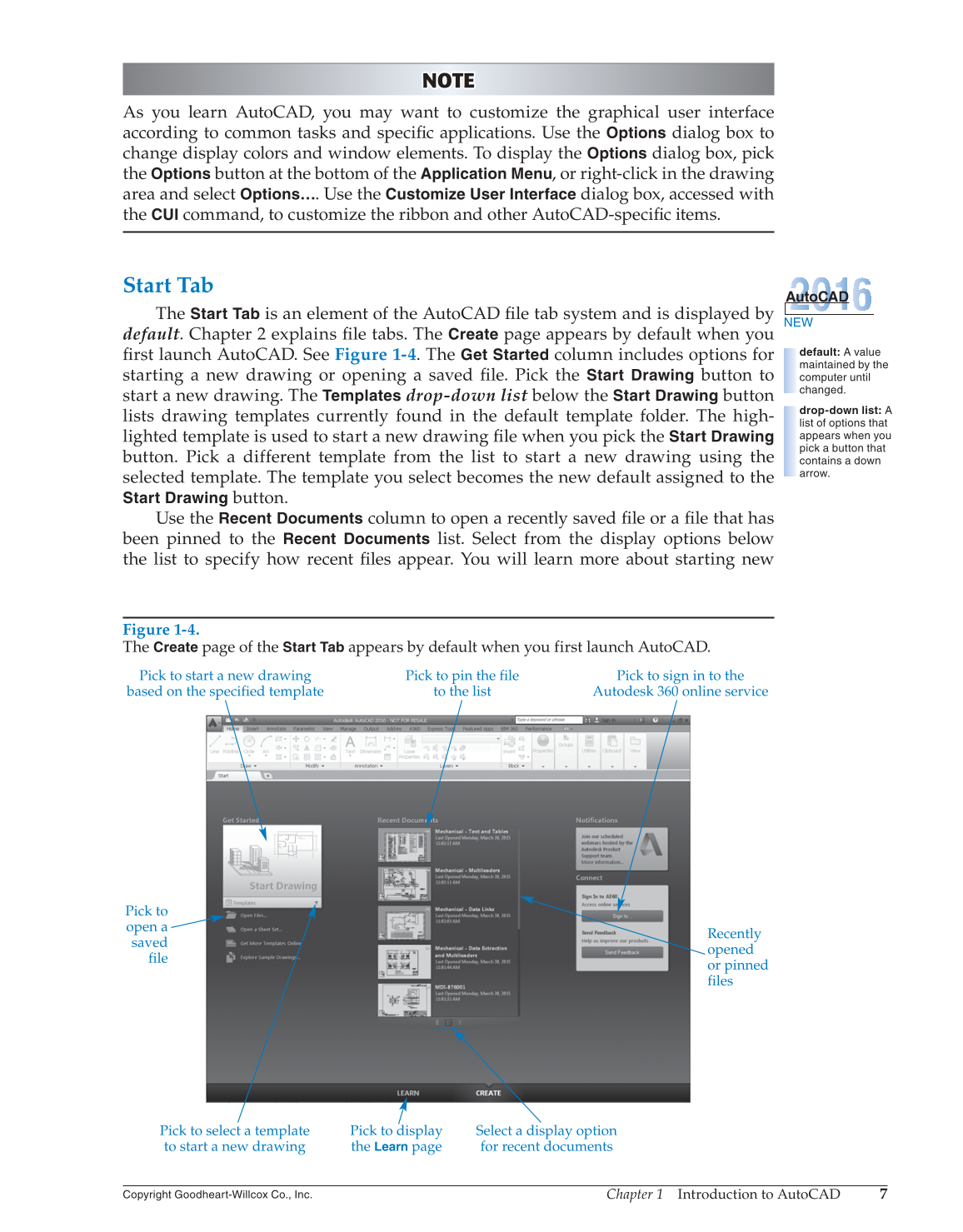

Figure 1-4.
The
Create
page of the
Start Tab
appears by default when you first launch AutoCAD.
Pick to sign in to the
Autodesk 360 online service
Pick to select a template
to start a new drawing
Pick to start a new drawing
based on the specified template
Pick to pin the file
to the list
Pick to
open a
saved
file
Pick to display
the
Learn
page
Select a display option
for recent documents
Recently
opened
or pinned
files
