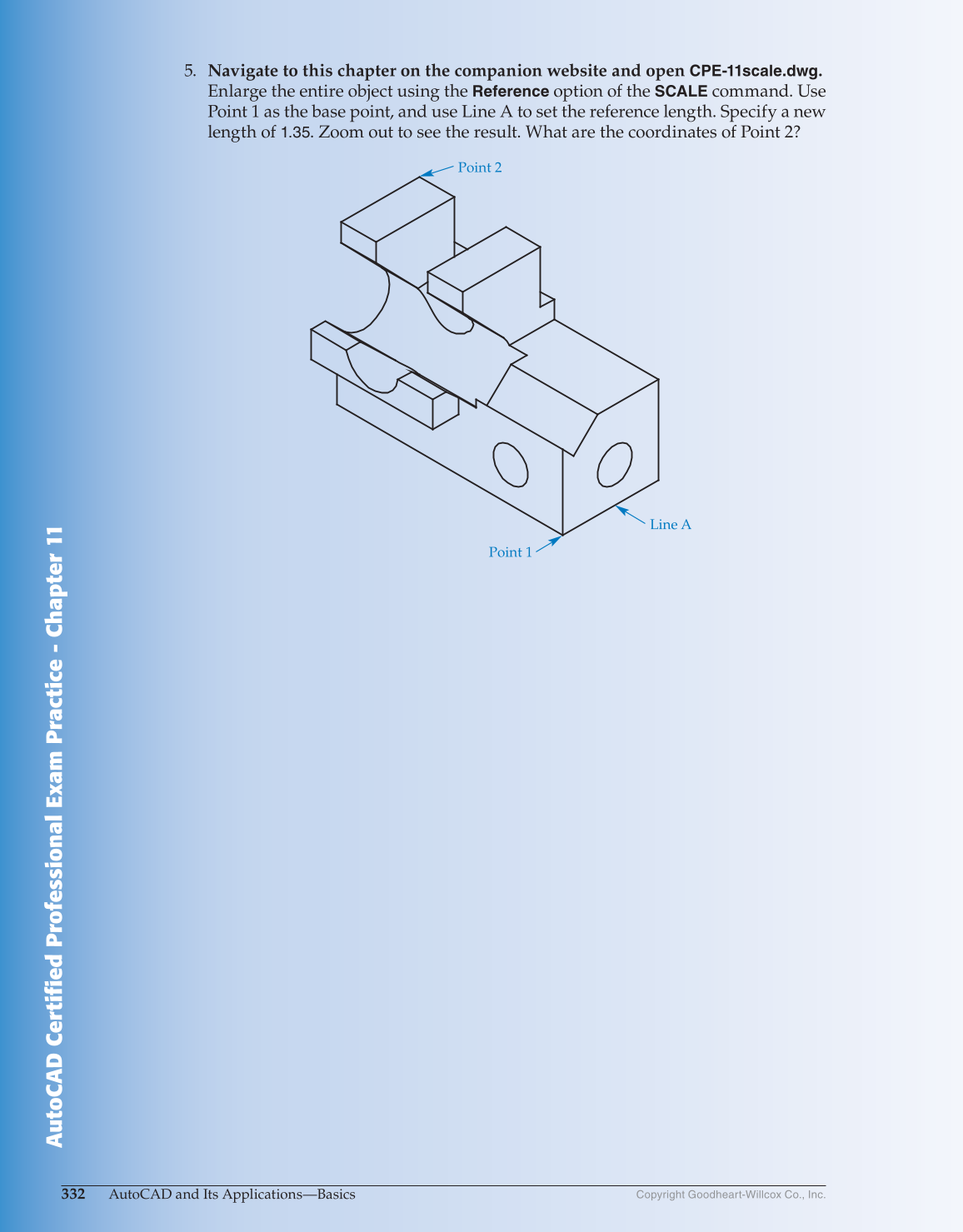

5. Navigate to this chapter on the companion website and open CPE-11scale.dwg.
Enlarge the entire object using the
Reference
option of the
SCALE
command. Use
Point 1 as the base point, and use Line A to set the reference length. Specify a new
length of 1.35. Zoom out to see the result. What are the coordinates of Point 2?
Point 1
Line A
Point 2
