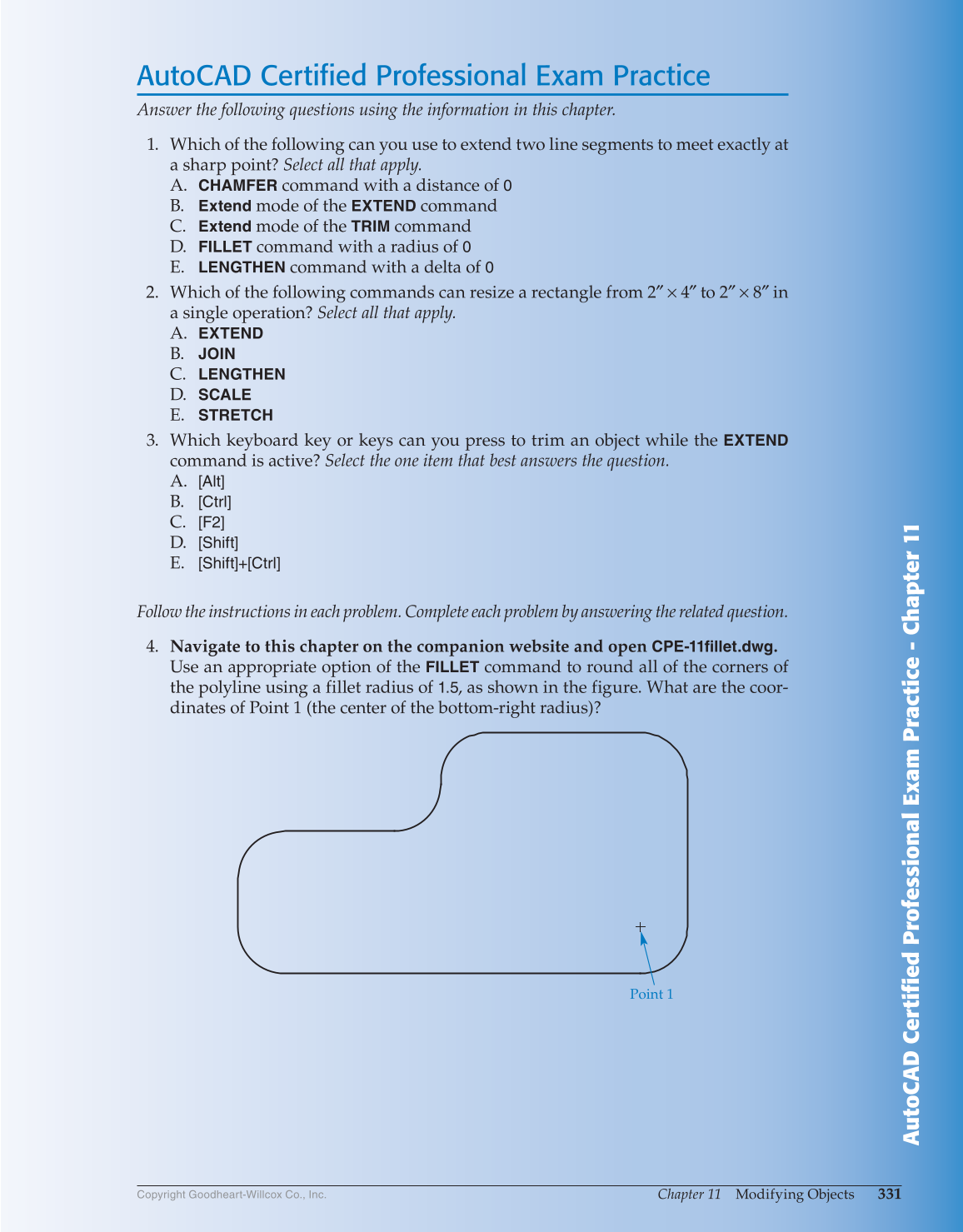

AutoCAD Certified Professional Exam Practice
Answer the following questions using the information in this chapter.
1. Which of the following can you use to extend two line segments to meet exactly at
a sharp point? Select all that apply.
A.
CHAMFER
command with a distance of
0
B.
Extend
mode of the
EXTEND
command
C.
Extend
mode of the
TRIM
command
D.
FILLET
command with a radius of
0
E.
LENGTHEN
command with a delta of
0
2. Which of the following commands can resize a rectangle from 2″ × 4″ to 2″ × 8″ in
a single operation? Select all that apply.
A.
EXTEND
B.
JOIN
C.
LENGTHEN
D.
SCALE
E.
STRETCH
3. Which keyboard key or keys can you press to trim an object while the
EXTEND
command is active? Select the one item that best answers the question.
A.
[Alt]
B.
[Ctrl]
C.
[F2]
D.
[Shift]
E.
[Shift]+[Ctrl]
Follow the instructions in each problem. Complete each problem by answering the related question.
4. Navigate to this chapter on the companion website and open CPE-11fillet.dwg.
Use an appropriate option of the
FILLET
command to round all of the corners of
the polyline using a fillet radius of 1.5, as shown in the figure. What are the coor-
dinates of Point 1 (the center of the bottom-right radius)?
Point 1
