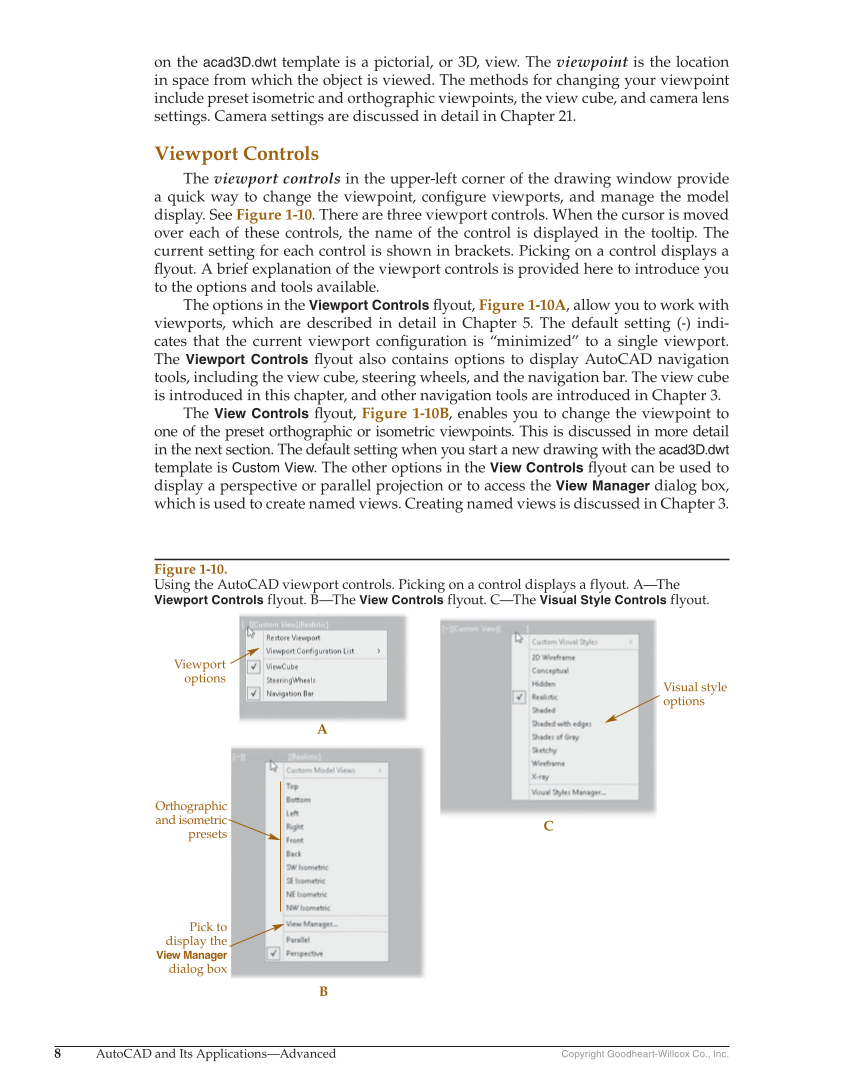

8  AutoCAD  and  Its  Applications—Advanced  Copyright  Goodheart-Willcox  Co.,  Inc.  on  the  acad3D.dwt  template  is  a  pictorial,  or  3D,  view.  The  viewpoint  is  the  location  in  space  from  which  the  object  is  viewed.  The  methods  for  changing  your  viewpoint  include  preset  isometric  and  orthographic  viewpoints,  the  view  cube,  and  camera  lens  settings.  Camera  settings  are  discussed  in  detail  in  Chapter  21.  Viewport  Controls  The  viewport  controls  in  the  upper-left  corner  of  the  drawing  window  provide  a  quick  way  to  change  the  viewpoint,  confi  gure  viewports,  and  manage  the  model  display.  See  Figure  1-10.  There  are  three  viewport  controls.  When  the  cursor  is  moved  over  each  of  these  controls,  the  name  of  the  control  is  displayed  in  the  tooltip.  The  current  setting  for  each  control  is  shown  in  brackets.  Picking  on  a  control  displays  a  fl  yout.  A  brief  explanation  of  the  viewport  controls  is  provided  here  to  introduce  you  to  the  options  and  tools  available.  The  options  in  the  Viewport  Controls  fl  yout,  Figure  1-10A,  allow  you  to  work  with  viewports,  which  are  described  in  detail  in  Chapter  5.  The  default  setting  (-)  indi-  cates  that  the  current  viewport  confi  guration  is  “minimized”  to  a  single  viewport.  The  Viewport  Controls  fl  yout  also  contains  options  to  display  AutoCAD  navigation  tools,  including  the  view  cube,  steering  wheels,  and  the  navigation  bar.  The  view  cube  is  introduced  in  this  chapter,  and  other  navigation  tools  are  introduced  in  Chapter  3.  The  View  Controls  fl  yout,  Figure  1-10B,  enables  you  to  change  the  viewpoint  to  one  of  the  preset  orthographic  or  isometric  viewpoints.  This  is  discussed  in  more  detail  in  the  next  section.  The  default  setting  when  you  start  a  new  drawing  with  the  acad3D.dwt  template  is  Custom  View.  The  other  options  in  the  View  Controls  fl  yout  can  be  used  to  display  a  perspective  or  parallel  projection  or  to  access  the  View  Manager  dialog  box,  which  is  used  to  create  named  views.  Creating  named  views  is  discussed  in  Chapter  3.  C  B  A  Visual  style  options  Viewport  options  Orthographic  and  isometric  presets  Pick  to  display  the  View  Manager  dialog  box  Figure  1-10.  Using  the  AutoCAD  viewport  controls.  Picking  on  a  control  displays  a  flyout.  A—The  Viewport  Controls  flyout.  B—The  View  Controls  flyout.  C—The  Visual  Style  Controls  flyout.
