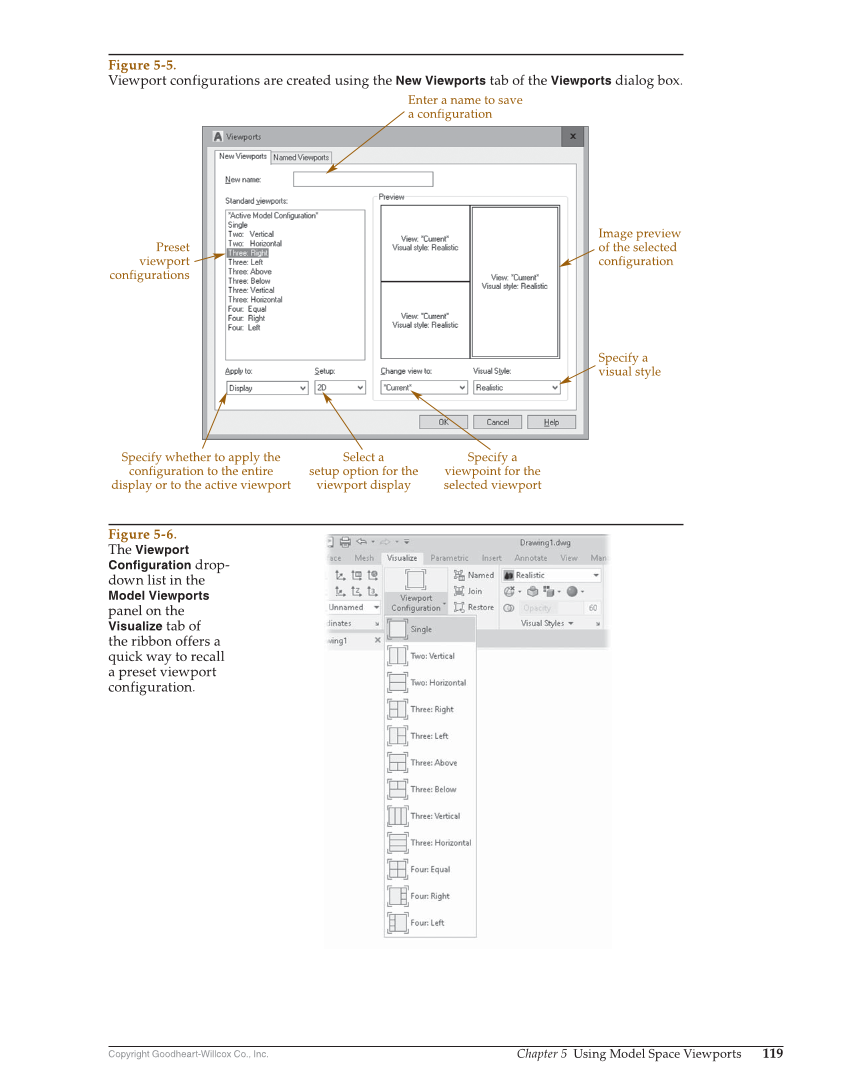

Copyright Goodheart-Willcox Co., Inc. Chapter 5 Using Model Space Viewports 119 Image preview of the selected configuration Specify a visual style Enter a name to save a configuration Preset viewport configurations Specify whether to apply the configuration to the entire display or to the active viewport Select a setup option for the viewport display Specify a viewpoint for the selected viewport Figure 5-5. Viewport configurations are created using the New Viewports tab of the Viewports dialog box. Figure 5-6. The Viewport Configuration drop- down list in the Model Viewports panel on the Visualize tab of the ribbon offers a quick way to recall a preset viewport configuration.
