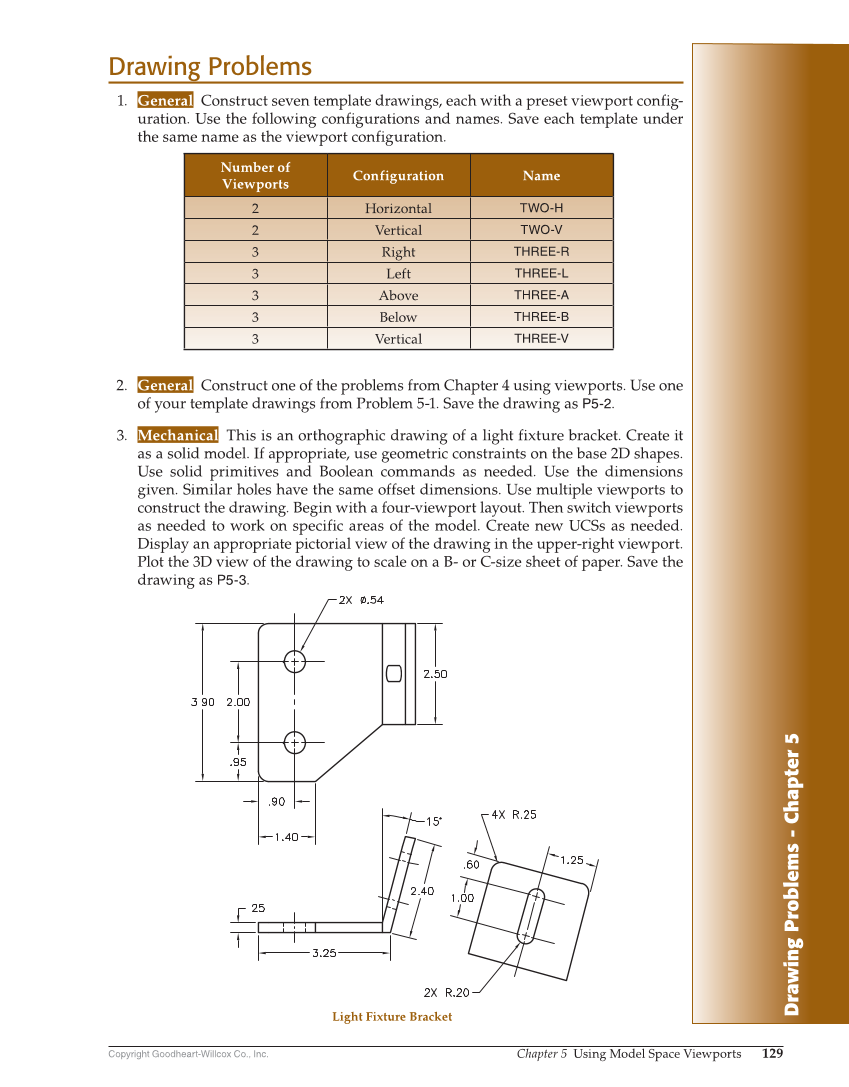

Drawing Problems - Chapter 5 Copyright Goodheart-Willcox Co., Inc. Chapter 5 Using Model Space Viewports 129 Drawing Problems 1. General Construct seven template drawings, each with a preset viewport config- uration. Use the following configurations and names. Save each template under the same name as the viewport configuration. 2. General Construct one of the problems from Chapter 4 using viewports. Use one of your template drawings from Problem 5-1. Save the drawing as P5-2. 3. Mechanical This is an orthographic drawing of a light fixture bracket. Create it as a solid model. If appropriate, use geometric constraints on the base 2D shapes. Use solid primitives and Boolean commands as needed. Use the dimensions given. Similar holes have the same offset dimensions. Use multiple viewports to construct the drawing. Begin with a four-viewport layout. Then switch viewports as needed to work on specific areas of the model. Create new UCSs as needed. Display an appropriate pictorial view of the drawing in the upper-right viewport. Plot the 3D view of the drawing to scale on a B- or C-size sheet of paper. Save the drawing as P5-3. Number of Viewports Configuration Name 2 Horizontal TWO-H 2 Vertical TWO-V 3 Right THREE-R 3 Left THREE-L 3 Above THREE-A 3 Below THREE-B 3 Vertical THREE-V Light Fixture Bracket
