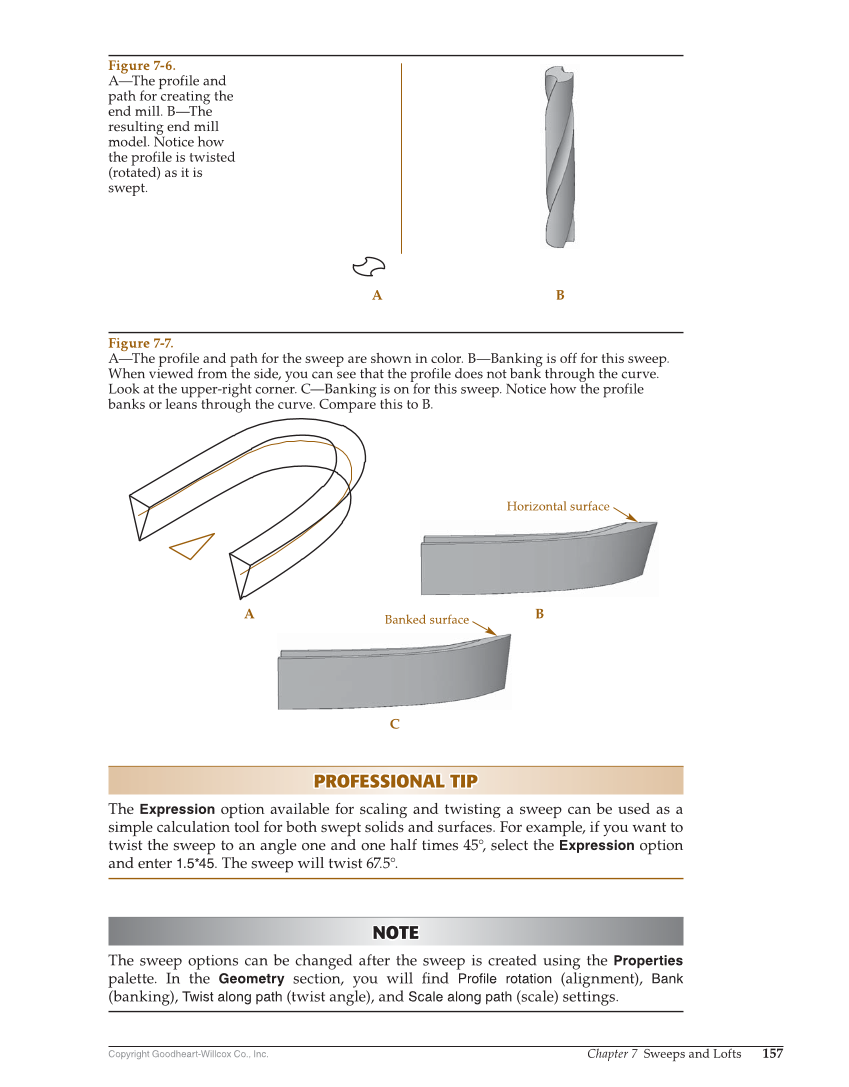

Copyright Goodheart-Willcox Co., Inc. Chapter 7 Sweeps and Lofts 157 PROFESSIONAL TIP PROFESSIONAL TIP The Expression option available for scaling and twisting a sweep can be used as a simple calculation tool for both swept solids and surfaces. For example, if you want to twist the sweep to an angle one and one half times 45°, select the Expression option and enter 1.5*45. The sweep will twist 67.5°. NOTE NOTE The sweep options can be changed after the sweep is created using the Properties palette. In the Geometry section, you will fi nd Profile rotation (alignment), Bank (banking), Twist along path (twist angle), and Scale along path (scale) settings. A B C Horizontal surface Banked surface A B Figure 7-6. A—The profile and path for creating the end mill. B—The resulting end mill model. Notice how the profile is twisted (rotated) as it is swept. Figure 7-7. A—The profile and path for the sweep are shown in color. B—Banking is off for this sweep. When viewed from the side, you can see that the profile does not bank through the curve. Look at the upper-right corner. C—Banking is on for this sweep. Notice how the profile banks or leans through the curve. Compare this to B.
