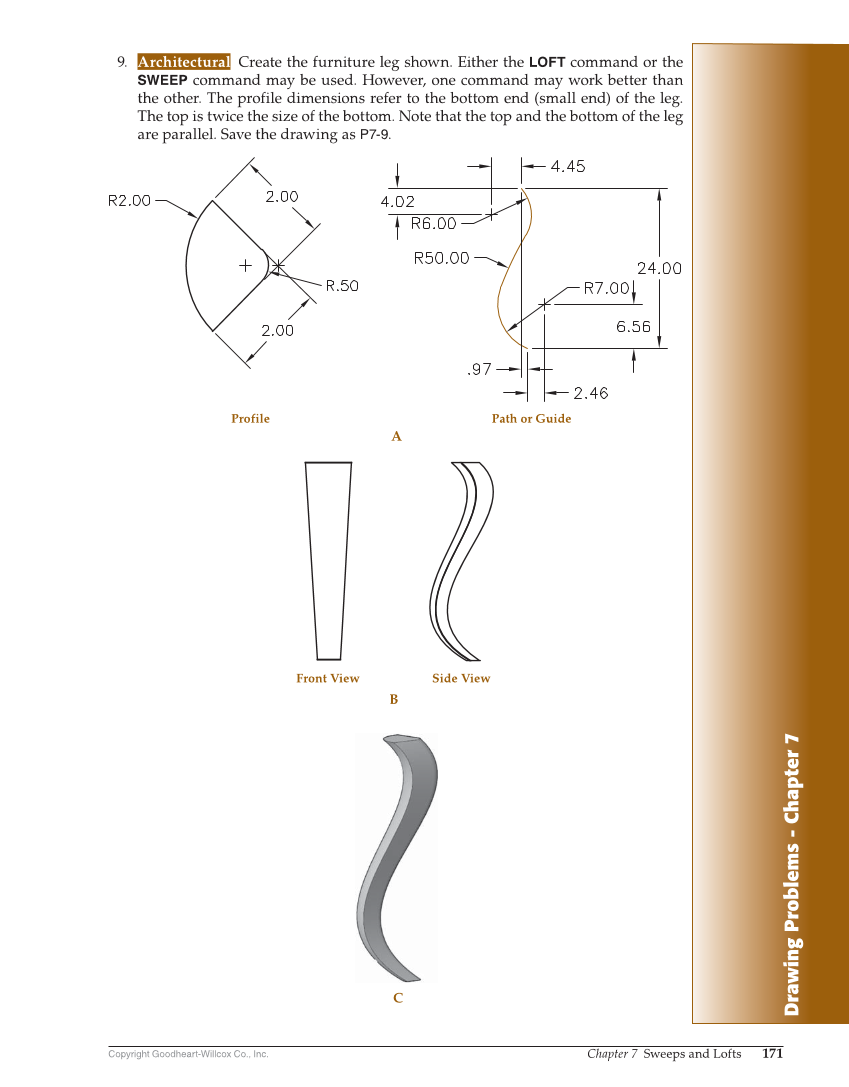

Drawing Problems - Chapter 7 Copyright Goodheart-Willcox Co., Inc. Chapter 7 Sweeps and Lofts 171 9. Architectural Create the furniture leg shown. Either the LOFT command or the SWEEP command may be used. However, one command may work better than the other. The profile dimensions refer to the bottom end (small end) of the leg. The top is twice the size of the bottom. Note that the top and the bottom of the leg are parallel. Save the drawing as P7-9. A Profile Front View Side View Path or Guide B C
