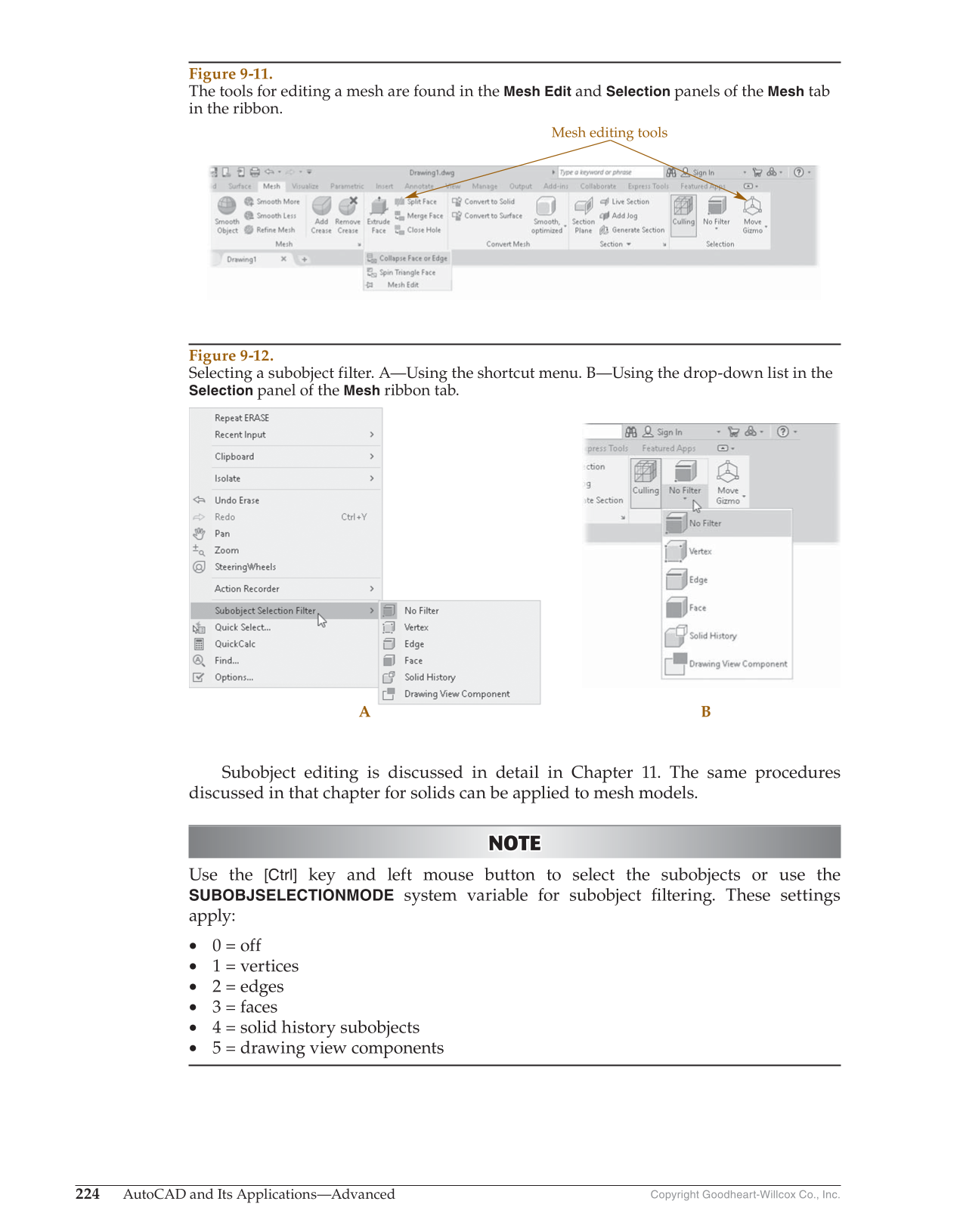

Copyright Goodheart-Willcox Co., Inc. 224 AutoCAD and Its Applications—Advanced Subobject editing is discussed in detail in Chapter 11. The same procedures discussed in that chapter for solids can be applied to mesh models. NOTE NOTE Use the [Ctrl] key and left mouse button to select the subobjects or use the SUBOBJSELECTIONMODE system variable for subobject fi ltering. These settings apply: • 0 = off • 1 = vertices • 2 = edges • 3 = faces • 4 = solid history subobjects • 5 = drawing view components Mesh editing tools Figure 9-11. The tools for editing a mesh are found in the Mesh Edit and Selection panels of the Mesh tab in the ribbon. A B Figure 9-12. Selecting a subobject filter. A—Using the shortcut menu. B—Using the drop-down list in the Selection panel of the Mesh ribbon tab.
