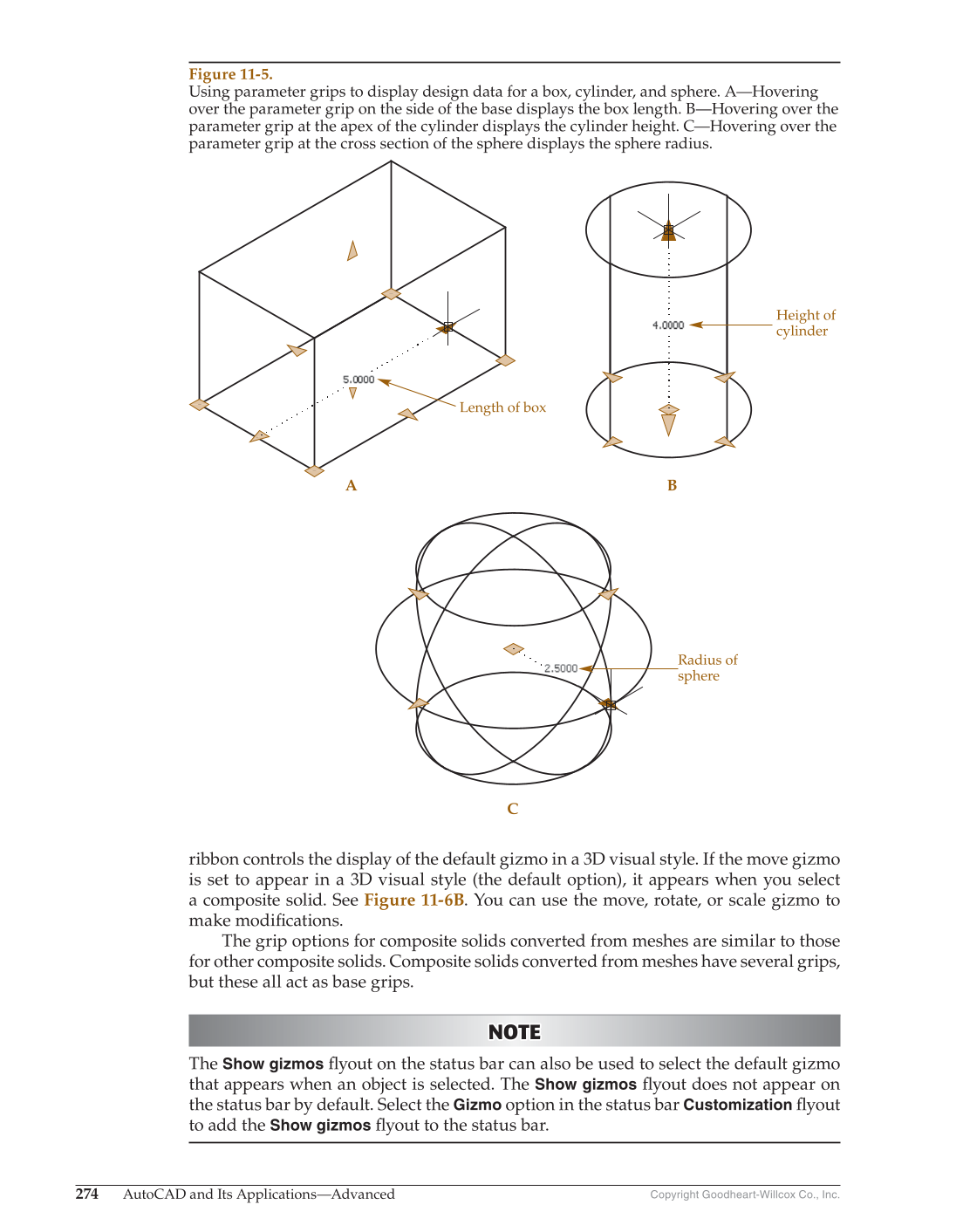

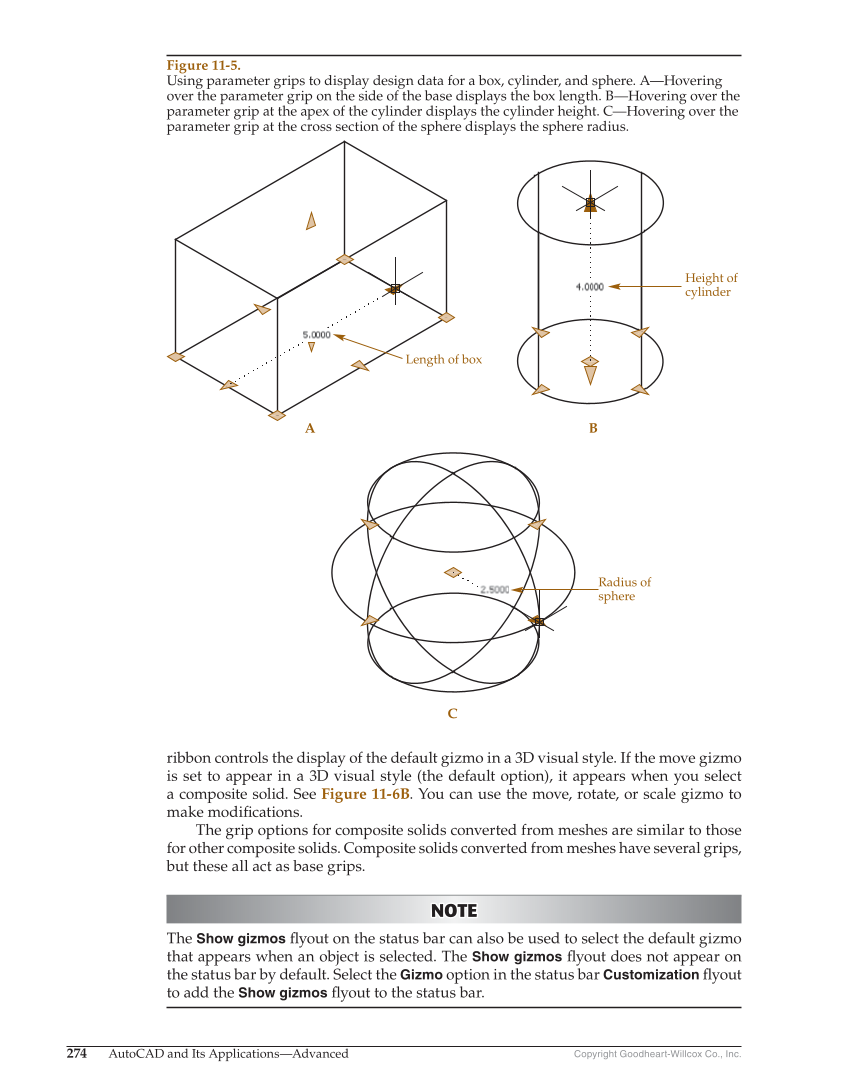

Copyright Goodheart-Willcox Co., Inc. 274 AutoCAD and Its Applications—Advanced ribbon controls the display of the default gizmo in a 3D visual style. If the move gizmo is set to appear in a 3D visual style (the default option), it appears when you select a composite solid. See Figure 11-6B. You can use the move, rotate, or scale gizmo to make modifi cations. The grip options for composite solids converted from meshes are similar to those for other composite solids. Composite solids converted from meshes have several grips, but these all act as base grips. NOTE NOTE The Show gizmos fl yout on the status bar can also be used to select the default gizmo that appears when an object is selected. The Show gizmos fl yout does not appear on the status bar by default. Select the Gizmo option in the status bar Customization fl yout to add the Show gizmos fl yout to the status bar. A B C Height of cylinder Length of box Radius of sphere Figure 11-5. Using parameter grips to display design data for a box, cylinder, and sphere. A—Hovering over the parameter grip on the side of the base displays the box length. B—Hovering over the parameter grip at the apex of the cylinder displays the cylinder height. C—Hovering over the parameter grip at the cross section of the sphere displays the sphere radius.
