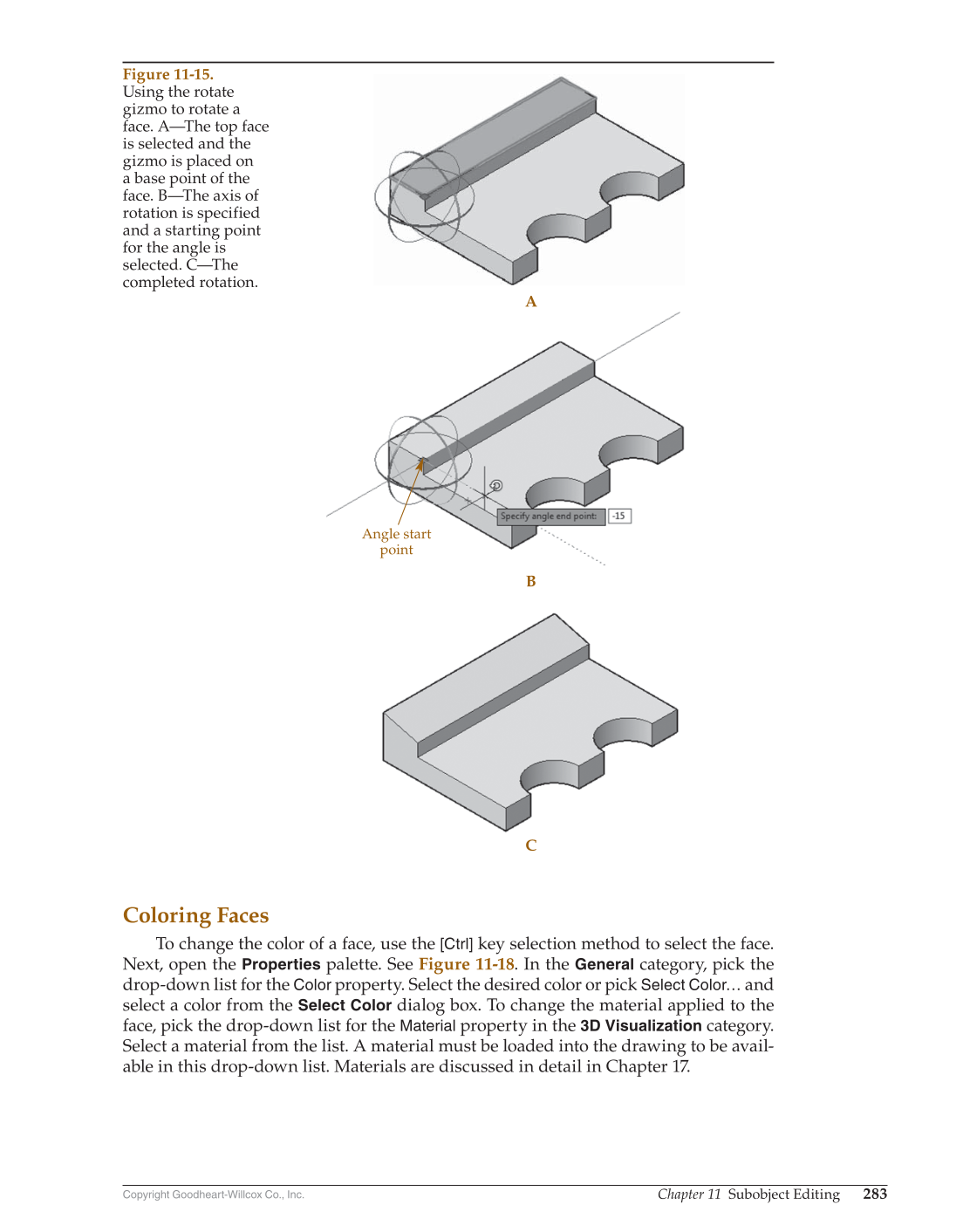

Copyright Goodheart-Willcox Co., Inc. Chapter 11 Subobject Editing 283 Coloring Faces To change the color of a face, use the [Ctrl] key selection method to select the face. Next, open the Properties palette. See Figure 11-18. In the General category, pick the drop-down list for the Color property. Select the desired color or pick Select Color… and select a color from the Select Color dialog box. To change the material applied to the face, pick the drop-down list for the Material property in the 3D Visualization category. Select a material from the list. A material must be loaded into the drawing to be avail- able in this drop-down list. Materials are discussed in detail in Chapter 17. Angle start point A B C Figure 11-15. Using the rotate gizmo to rotate a face. A—The top face is selected and the gizmo is placed on a base point of the face. B—The axis of rotation is specified and a starting point for the angle is selected. C—The completed rotation.
