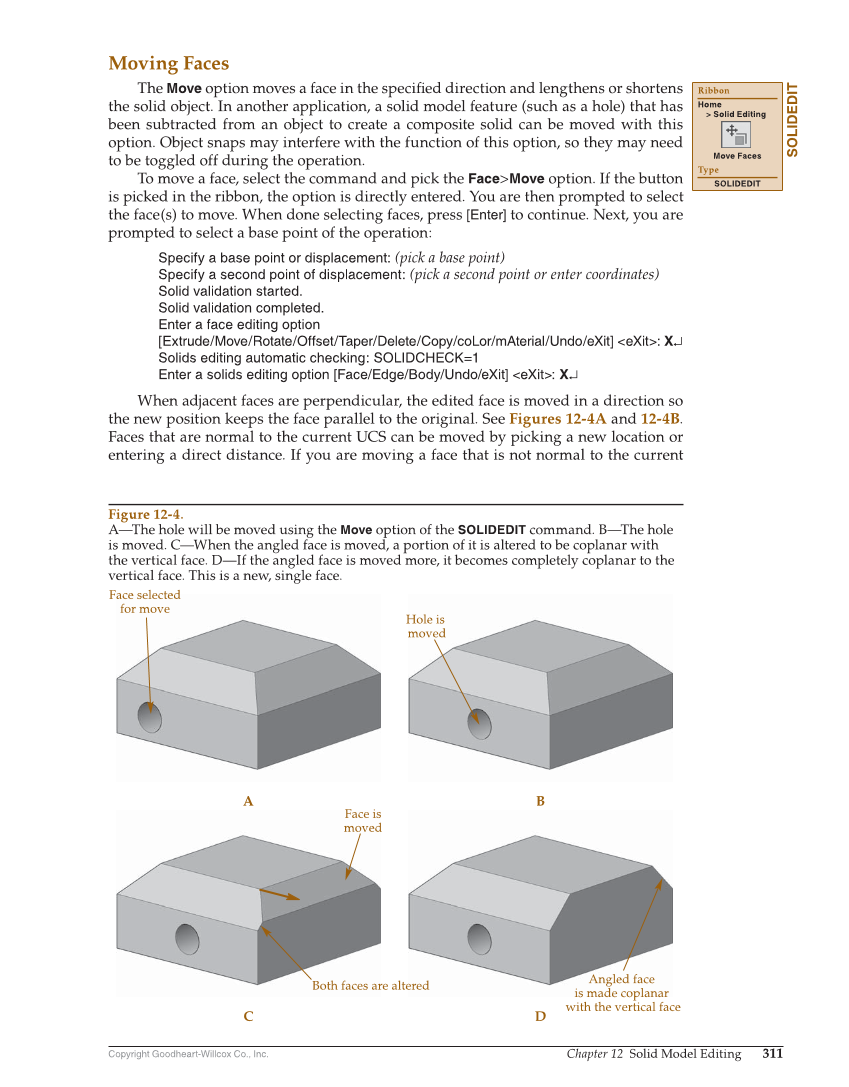

Copyright Goodheart-Willcox Co., Inc. Chapter 12 Solid Model Editing 311 Moving Faces The Move option moves a face in the specifi ed direction and lengthens or shortens the solid object. In another application, a solid model feature (such as a hole) that has been subtracted from an object to create a composite solid can be moved with this option. Object snaps may interfere with the function of this option, so they may need to be toggled off during the operation. To move a face, select the command and pick the Face Move option. If the button is picked in the ribbon, the option is directly entered. You are then prompted to select the face(s) to move. When done selecting faces, press [Enter] to continue. Next, you are prompted to select a base point of the operation: Specify a base point or displacement: (pick a base point) Specify a second point of displacement: (pick a second point or enter coordinates) Solid validation started. Solid validation completed. Enter a face editing option [Extrude/Move/Rotate/Offset/Taper/Delete/Copy/coLor/mAterial/Undo/eXit] eXit: X↵ Solids editing automatic checking: SOLIDCHECK=1 Enter a solids editing option [Face/Edge/Body/Undo/eXit] eXit: X↵ When adjacent faces are perpendicular, the edited face is moved in a direction so the new position keeps the face parallel to the original. See Figures 12-4A and 12-4B. Faces that are normal to the current UCS can be moved by picking a new location or entering a direct distance. If you are moving a face that is not normal to the current SOLIDEDIT Ribbon Home Solid Editing Move Faces Type SOLIDEDIT Face selected for move A B C D Hole is moved Face is moved Both faces are altered Angled face is made coplanar with the vertical face Figure 12-4. A—The hole will be moved using the Move option of the SOLIDEDIT command. B—The hole is moved. C—When the angled face is moved, a portion of it is altered to be coplanar with the vertical face. D—If the angled face is moved more, it becomes completely coplanar to the vertical face. This is a new, single face.
