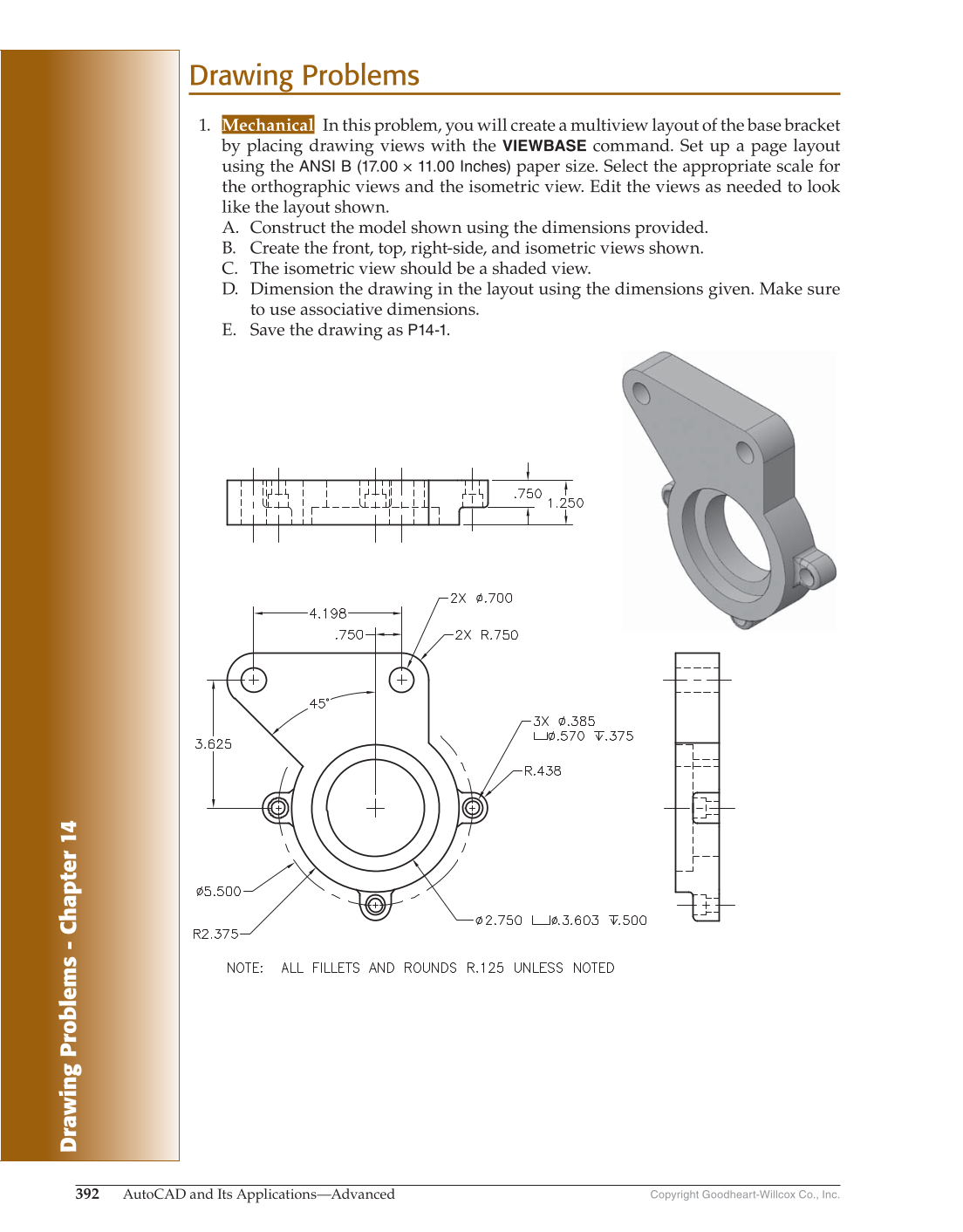

Drawing Problems - Chapter 14 Copyright Goodheart-Willcox Co., Inc. 392 AutoCAD and Its Applications—Advanced Drawing Problems 1. Mechanical In this problem, you will create a multiview layout of the base bracket by placing drawing views with the VIEWBASE command. Set up a page layout using the ANSI B (17.00 × 11.00 Inches) paper size. Select the appropriate scale for the orthographic views and the isometric view. Edit the views as needed to look like the layout shown. A. Construct the model shown using the dimensions provided. B. Create the front, top, right-side, and isometric views shown. C. The isometric view should be a shaded view. D. Dimension the drawing in the layout using the dimensions given. Make sure to use associative dimensions. E. Save the drawing as P14-1.
