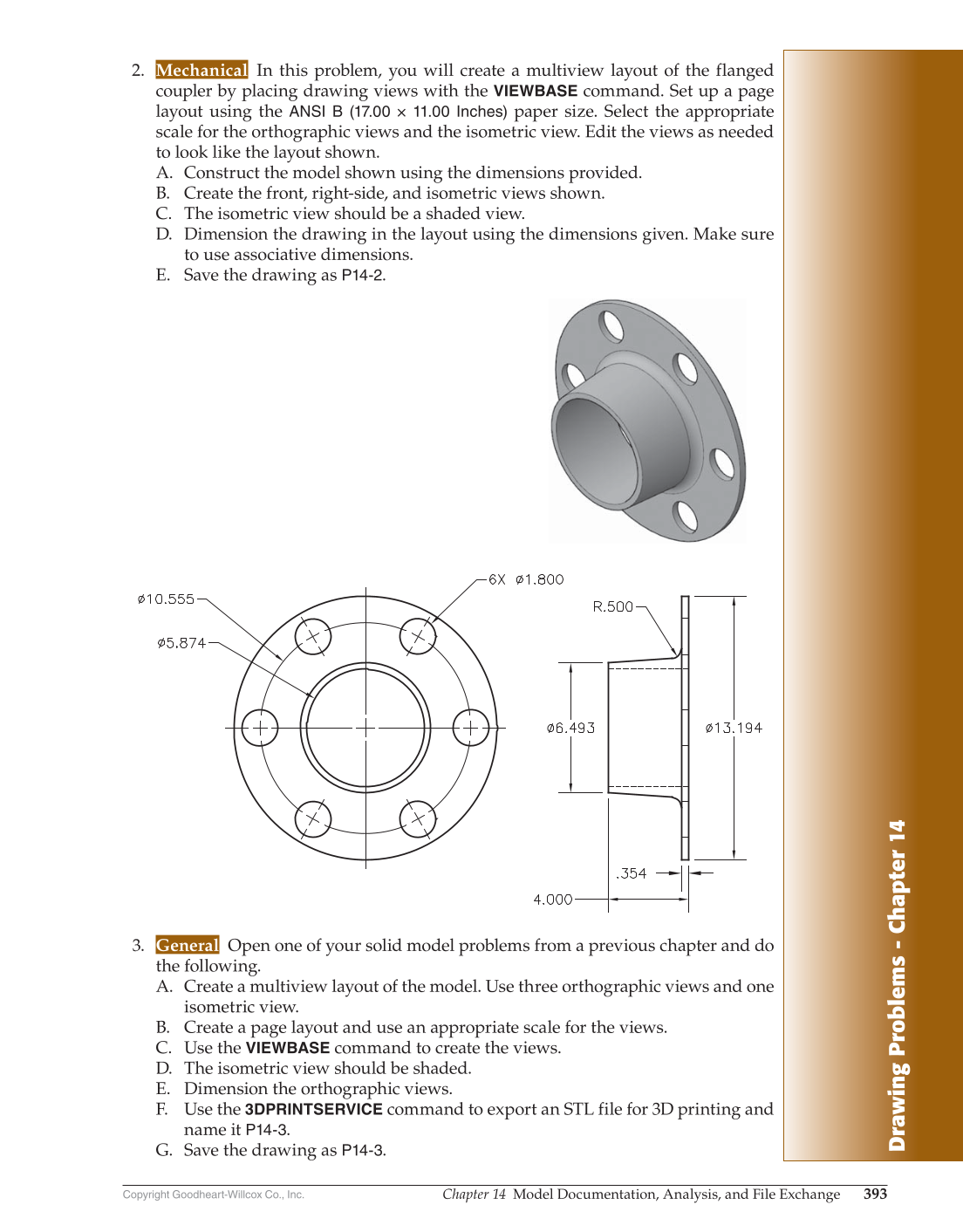

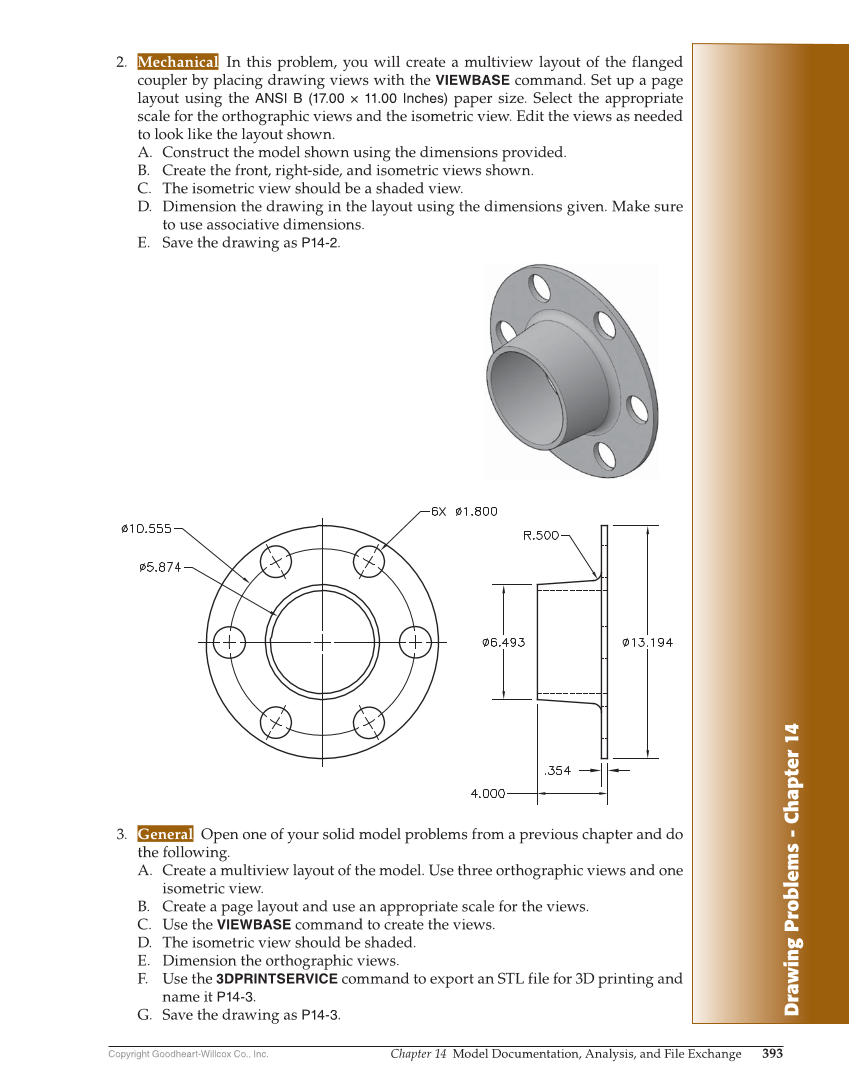

Drawing Problems - Chapter 14 Copyright Goodheart-Willcox Co., Inc. Chapter 14 Model Documentation, Analysis, and File Exchange 393 2. Mechanical In this problem, you will create a multiview layout of the flanged coupler by placing drawing views with the VIEWBASE command. Set up a page layout using the ANSI B (17.00 × 11.00 Inches) paper size. Select the appropriate scale for the orthographic views and the isometric view. Edit the views as needed to look like the layout shown. A. Construct the model shown using the dimensions provided. B. Create the front, right-side, and isometric views shown. C. The isometric view should be a shaded view. D. Dimension the drawing in the layout using the dimensions given. Make sure to use associative dimensions. E. Save the drawing as P14-2. 3. General Open one of your solid model problems from a previous chapter and do the following. A. Create a multiview layout of the model. Use three orthographic views and one isometric view. B. Create a page layout and use an appropriate scale for the views. C. Use the VIEWBASE command to create the views. D. The isometric view should be shaded. E. Dimension the orthographic views. F. Use the 3DPRINTSERVICE command to export an STL file for 3D printing and name it P14-3. G. Save the drawing as P14-3.
