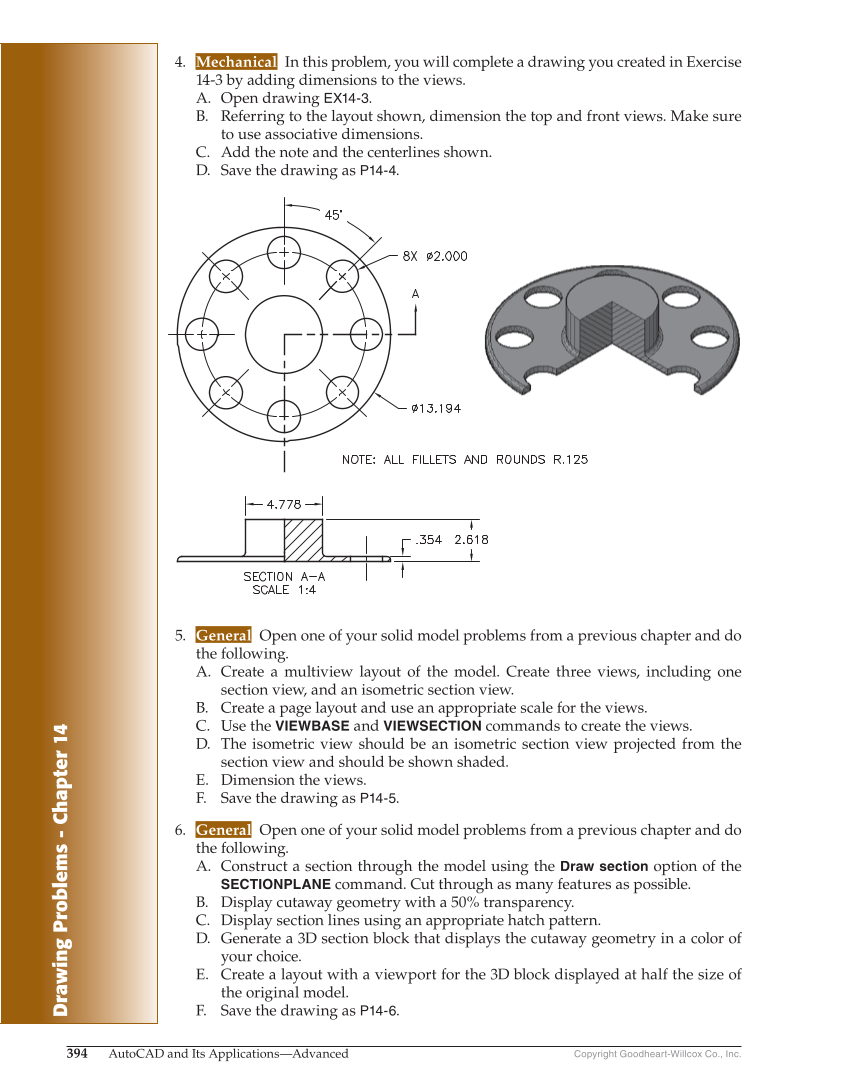

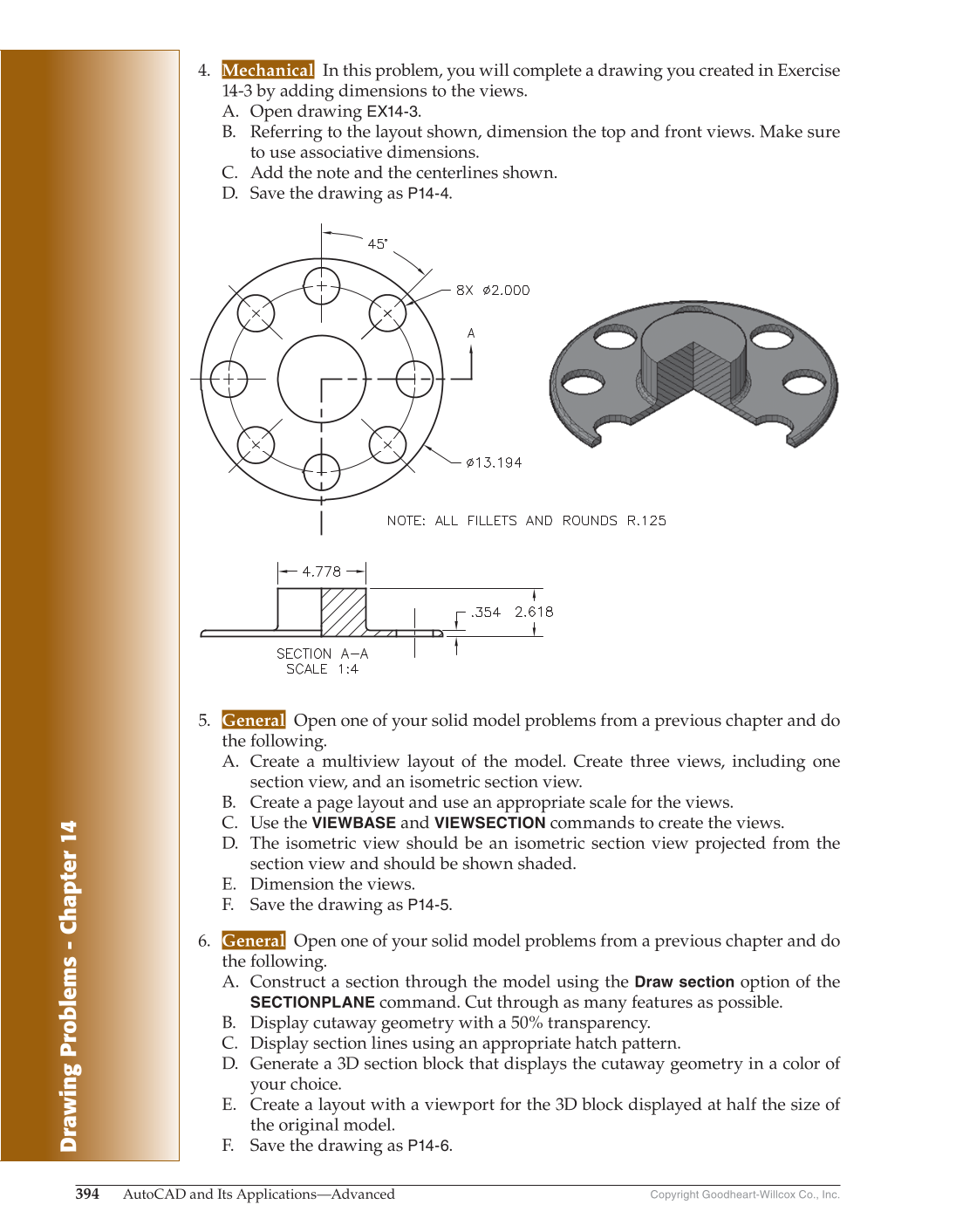

Drawing Problems - Chapter 14 Copyright Goodheart-Willcox Co., Inc. 394 AutoCAD and Its Applications—Advanced 4. Mechanical In this problem, you will complete a drawing you created in Exercise 14-3 by adding dimensions to the views. A. Open drawing EX14-3. B. Referring to the layout shown, dimension the top and front views. Make sure to use associative dimensions. C. Add the note and the centerlines shown. D. Save the drawing as P14-4. 5. General Open one of your solid model problems from a previous chapter and do the following. A. Create a multiview layout of the model. Create three views, including one section view, and an isometric section view. B. Create a page layout and use an appropriate scale for the views. C. Use the VIEWBASE and VIEWSECTION commands to create the views. D. The isometric view should be an isometric section view projected from the section view and should be shown shaded. E. Dimension the views. F. Save the drawing as P14-5. 6. General Open one of your solid model problems from a previous chapter and do the following. A. Construct a section through the model using the Draw section option of the SECTIONPLANE command. Cut through as many features as possible. B. Display cutaway geometry with a 50% transparency. C. Display section lines using an appropriate hatch pattern. D. Generate a 3D section block that displays the cutaway geometry in a color of your choice. E. Create a layout with a viewport for the 3D block displayed at half the size of the original model. F. Save the drawing as P14-6.
