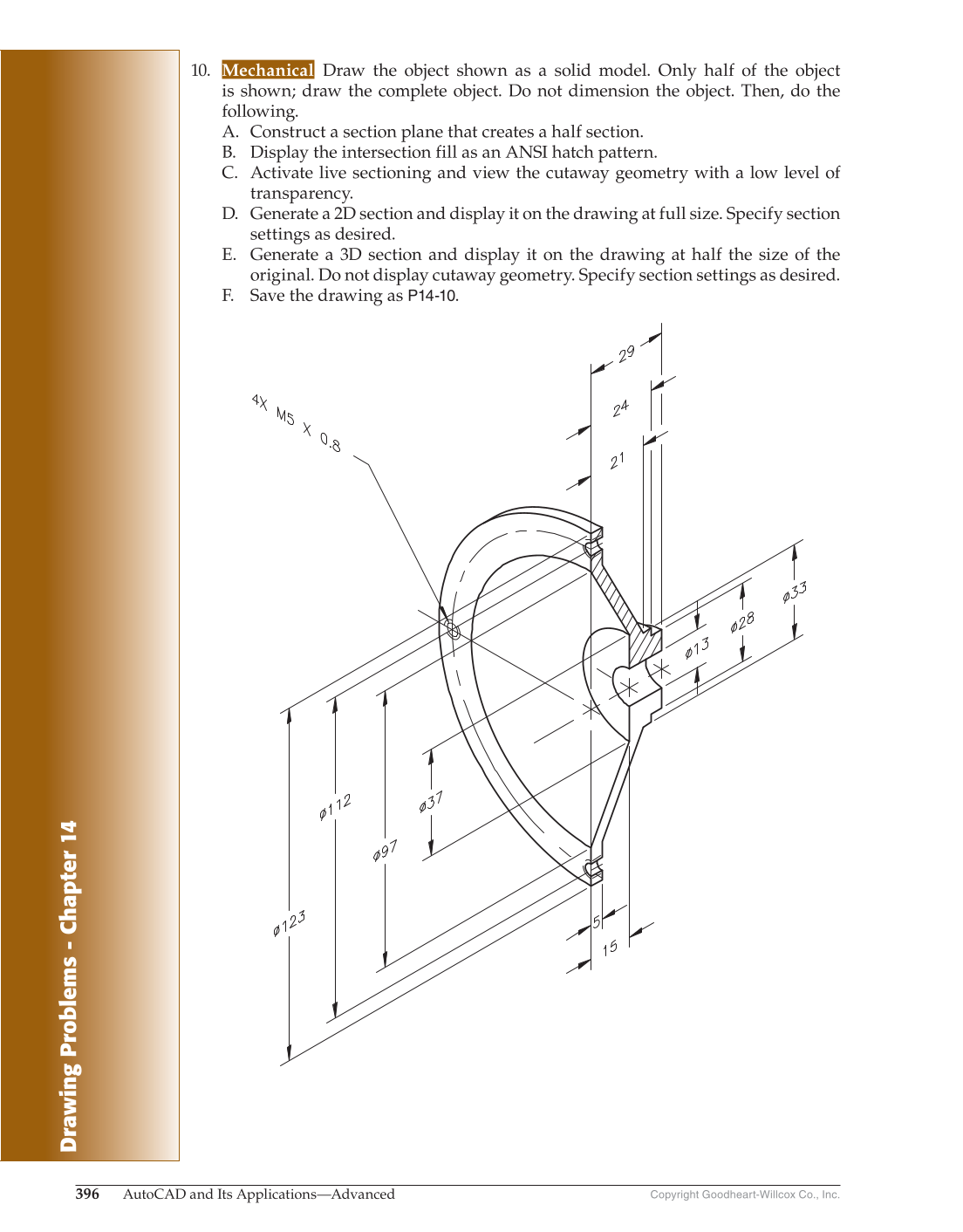

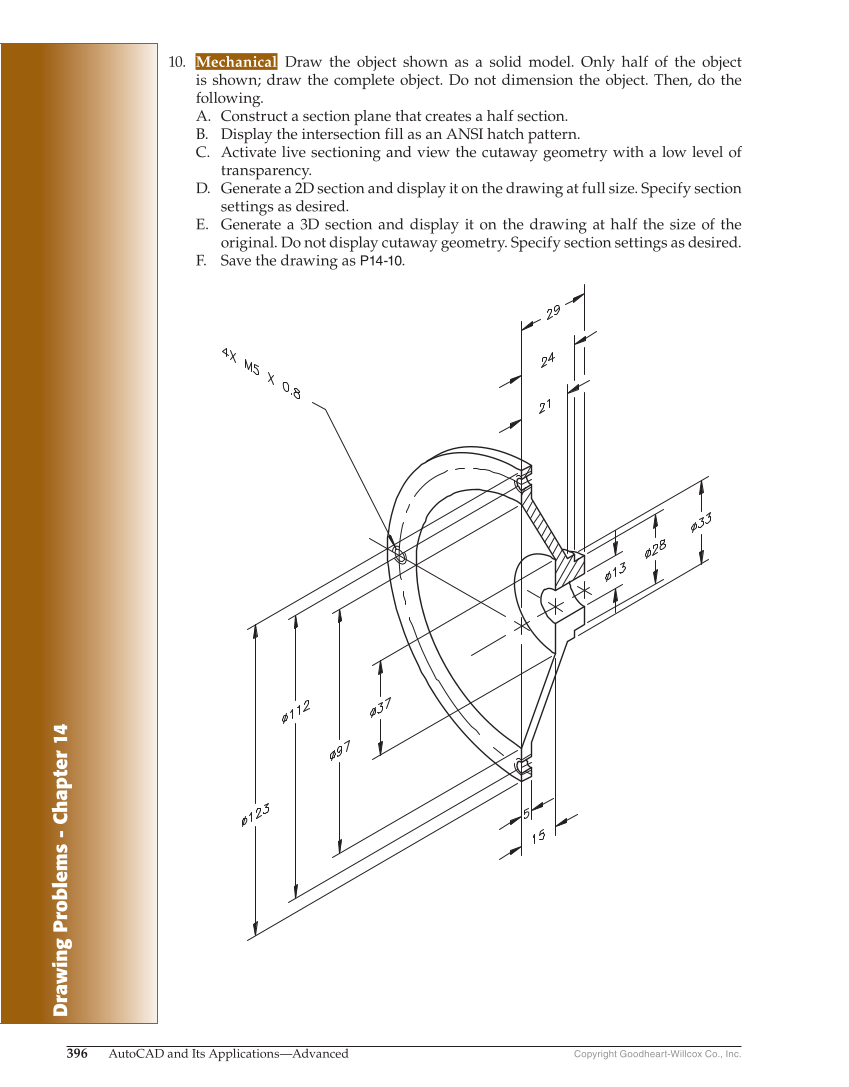

Drawing Problems - Chapter 14 Copyright Goodheart-Willcox Co., Inc. 396 AutoCAD and Its Applications—Advanced 10. Mechanical Draw the object shown as a solid model. Only half of the object is shown draw the complete object. Do not dimension the object. Then, do the following. A. Construct a section plane that creates a half section. B. Display the intersection fill as an ANSI hatch pattern. C. Activate live sectioning and view the cutaway geometry with a low level of transparency. D. Generate a 2D section and display it on the drawing at full size. Specify section settings as desired. E. Generate a 3D section and display it on the drawing at half the size of the original. Do not display cutaway geometry. Specify section settings as desired. F. Save the drawing as P14-10.
