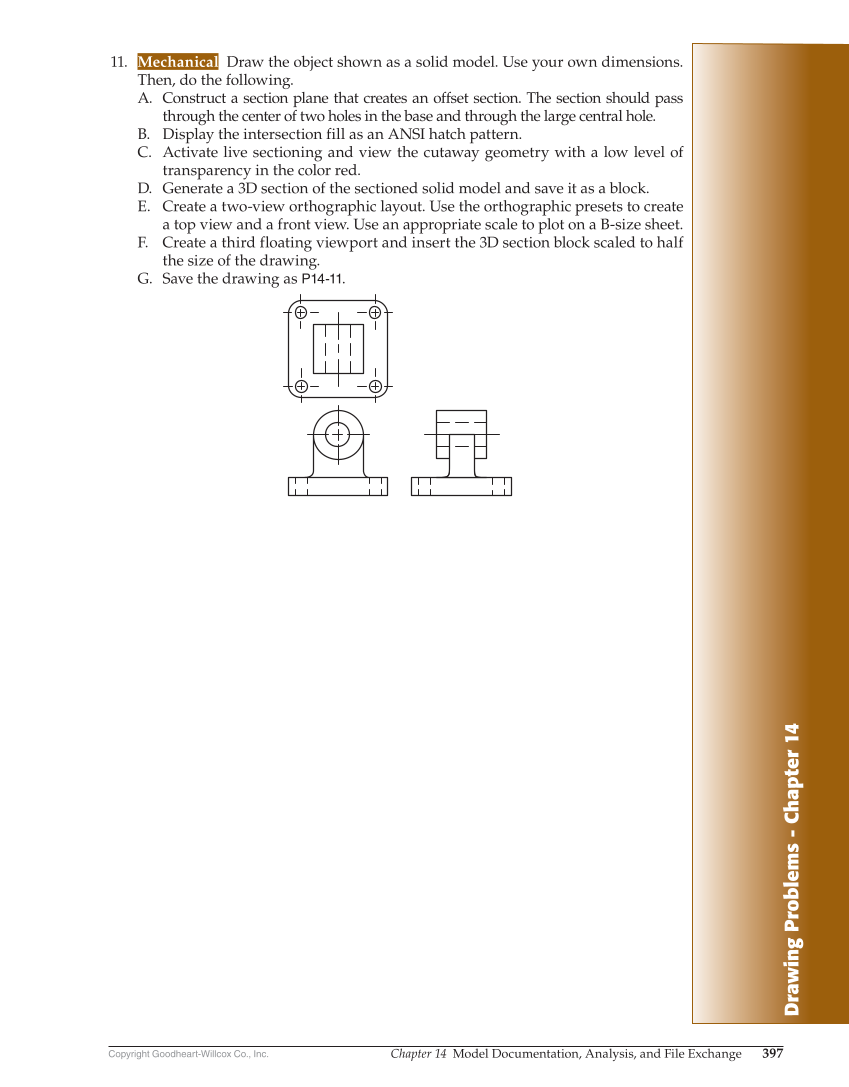

Drawing Problems - Chapter 14 Copyright Goodheart-Willcox Co., Inc. Chapter 14 Model Documentation, Analysis, and File Exchange 397 11. Mechanical Draw the object shown as a solid model. Use your own dimensions. Then, do the following. A. Construct a section plane that creates an offset section. The section should pass through the center of two holes in the base and through the large central hole. B. Display the intersection fill as an ANSI hatch pattern. C. Activate live sectioning and view the cutaway geometry with a low level of transparency in the color red. D. Generate a 3D section of the sectioned solid model and save it as a block. E. Create a two-view orthographic layout. Use the orthographic presets to create a top view and a front view. Use an appropriate scale to plot on a B-size sheet. F. Create a third floating viewport and insert the 3D section block scaled to half the size of the drawing. G. Save the drawing as P14-11.
