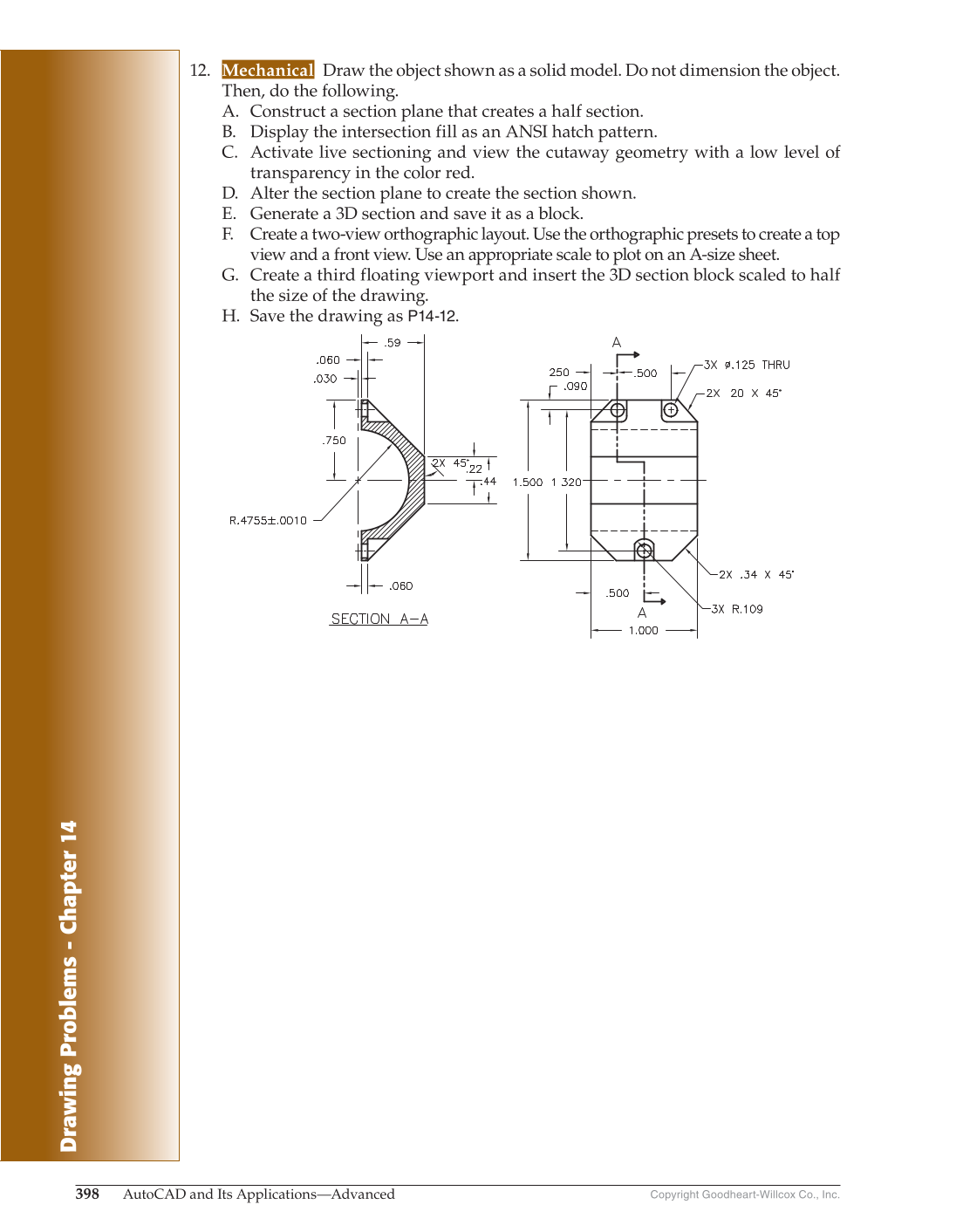

Drawing Problems - Chapter 14 Copyright Goodheart-Willcox Co., Inc. 398 AutoCAD and Its Applications—Advanced 12. Mechanical Draw the object shown as a solid model. Do not dimension the object. Then, do the following. A. Construct a section plane that creates a half section. B. Display the intersection fill as an ANSI hatch pattern. C. Activate live sectioning and view the cutaway geometry with a low level of transparency in the color red. D. Alter the section plane to create the section shown. E. Generate a 3D section and save it as a block. F. Create a two-view orthographic layout. Use the orthographic presets to create a top view and a front view. Use an appropriate scale to plot on an A-size sheet. G. Create a third floating viewport and insert the 3D section block scaled to half the size of the drawing. H. Save the drawing as P14-12.
