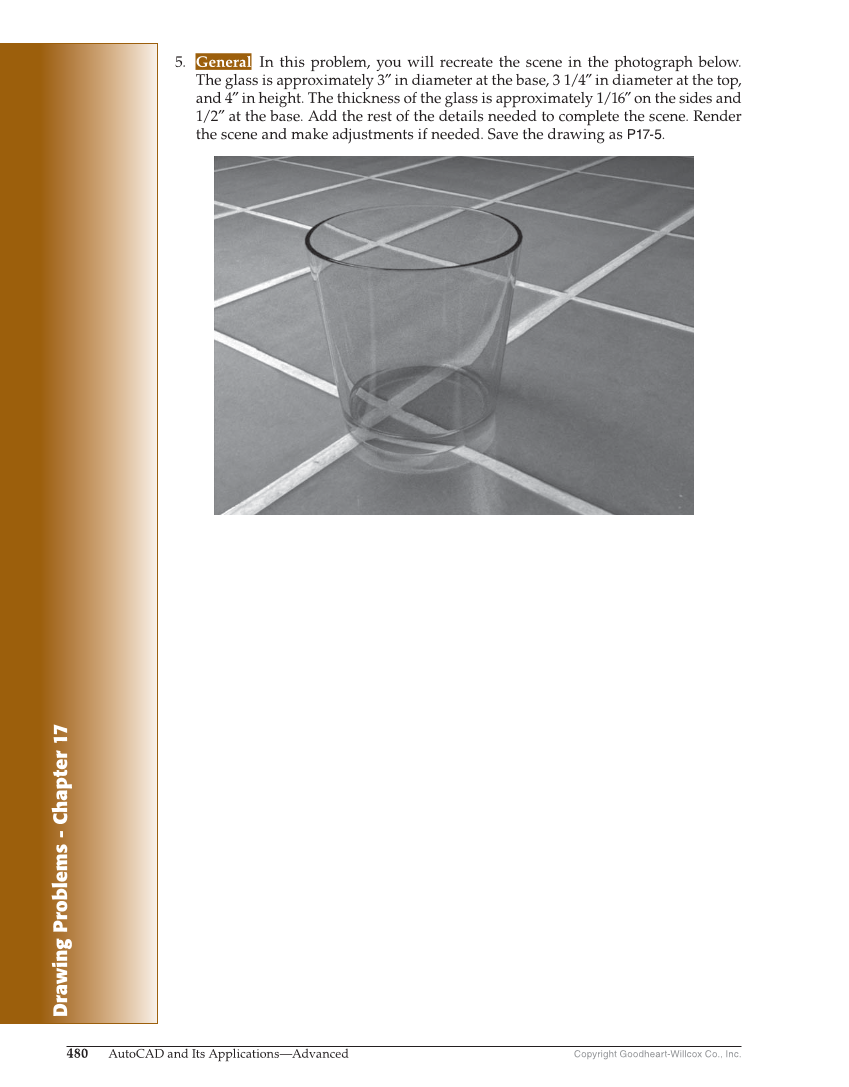

Drawing Problems - Chapter 1 Drawing Problems - Chapter 17 Copyright Goodheart-Willcox Co., Inc. 480 AutoCAD and Its Applications—Advanced 5. General In this problem, you will recreate the scene in the photograph below. The glass is approximately 3″ in diameter at the base, 3 1/4″ in diameter at the top, and 4″ in height. The thickness of the glass is approximately 1/16″ on the sides and 1/2″ at the base. Add the rest of the details needed to complete the scene. Render the scene and make adjustments if needed. Save the drawing as P17-5.
