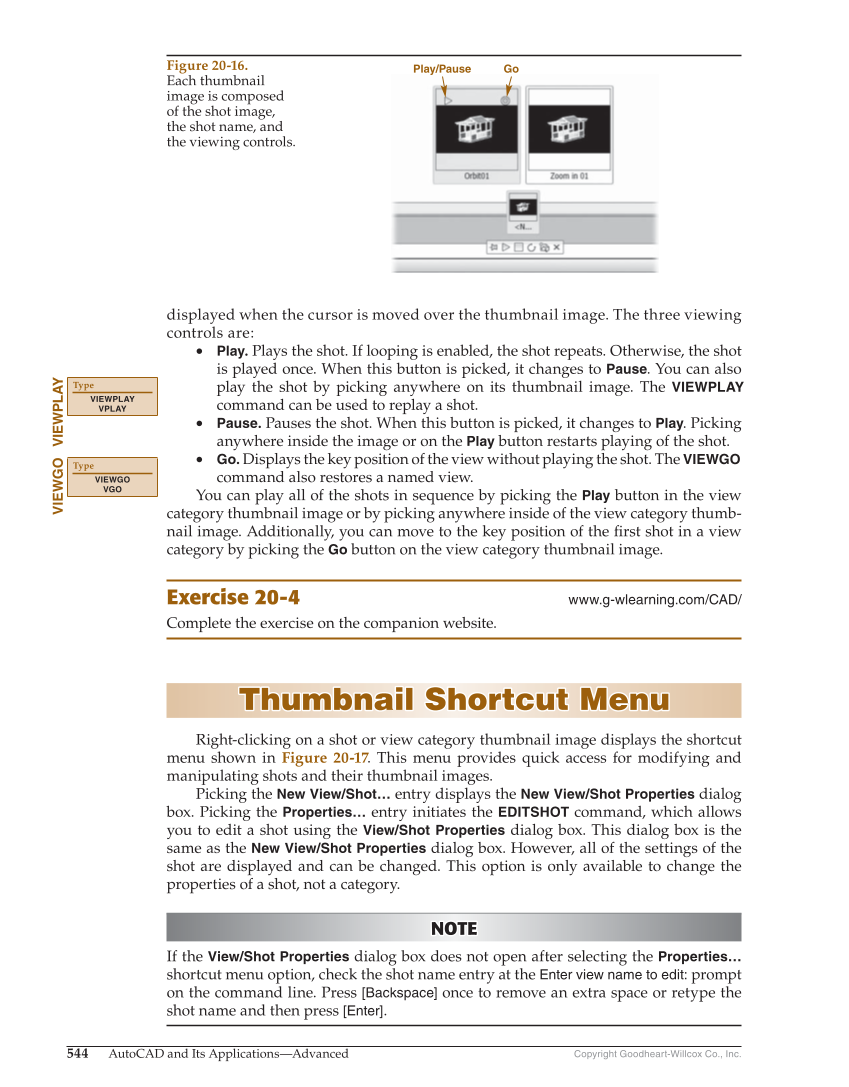

544 AutoCAD and Its Applications—Advanced Copyright Goodheart-Willcox Co., Inc. displayed when the cursor is moved over the thumbnail image. The three viewing controls are: • Play. Plays the shot. If looping is enabled, the shot repeats. Otherwise, the shot is played once. When this button is picked, it changes to Pause. You can also play the shot by picking anywhere on its thumbnail image. The VIEWPLAY command can be used to replay a shot. • Pause. Pauses the shot. When this button is picked, it changes to Play. Picking anywhere inside the image or on the Play button restarts playing of the shot. • Go. Displays the key position of the view without playing the shot. The VIEWGO command also restores a named view. You can play all of the shots in sequence by picking the Play button in the view category thumbnail image or by picking anywhere inside of the view category thumb- nail image. Additionally, you can move to the key position of the fi rst shot in a view category by picking the Go button on the view category thumbnail image. Exercise 20-4 www.g-wlearning.com/CAD/ Complete the exercise on the companion website. Thumbnail Shortcut Menu Thumbnail Shortcut Menu Right-clicking on a shot or view category thumbnail image displays the shortcut menu shown in Figure 20-17. This menu provides quick access for modifying and manipulating shots and their thumbnail images. Picking the New View/Shot… entry displays the New View/Shot Properties dialog box. Picking the Properties… entry initiates the EDITSHOT command, which allows you to edit a shot using the View/Shot Properties dialog box. This dialog box is the same as the New View/Shot Properties dialog box. However, all of the settings of the shot are displayed and can be changed. This option is only available to change the properties of a shot, not a category. NOTE NOTE If the View/Shot Properties dialog box does not open after selecting the Properties… shortcut menu option, check the shot name entry at the Enter view name to edit: prompt on the command line. Press [Backspace] once to remove an extra space or retype the shot name and then press [Enter]. VIEWPLAY Type VIEWPLAY VPLAY VIEWGO Type VIEWGO VGO Play/Pause Go Figure 20-16. Each thumbnail image is composed of the shot image, the shot name, and the viewing controls.
