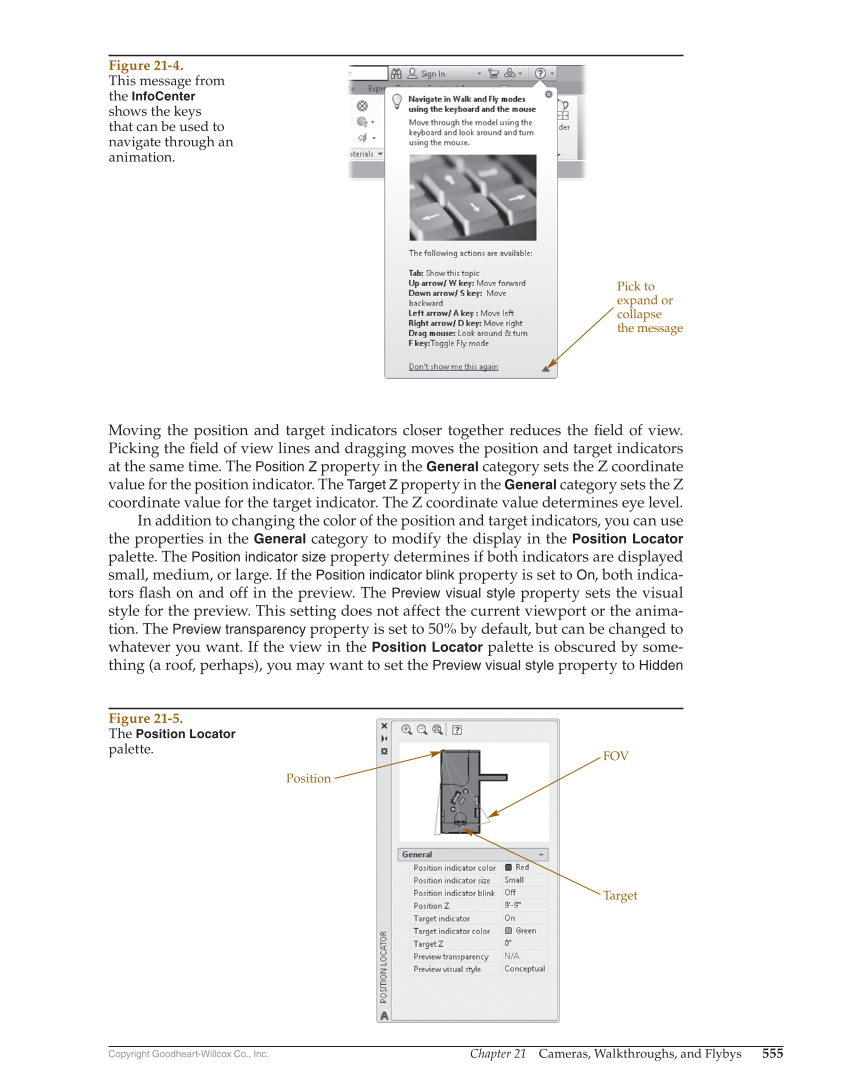

Chapter 21 Cameras, Walkthroughs, and Flybys 555 Copyright Goodheart-Willcox Co., Inc. Moving the position and target indicators closer together reduces the fi eld of view. Picking the fi eld of view lines and dragging moves the position and target indicators at the same time. The Position Z property in the General category sets the Z coordinate value for the position indicator. The Target Z property in the General category sets the Z coordinate value for the target indicator. The Z coordinate value determines eye level. In addition to changing the color of the position and target indicators, you can use the properties in the General category to modify the display in the Position Locator palette. The Position indicator size property determines if both indicators are displayed small, medium, or large. If the Position indicator blink property is set to On, both indica- tors fl ash on and off in the preview. The Preview visual style property sets the visual style for the preview. This setting does not affect the current viewport or the anima- tion. The Preview transparency property is set to 50% by default, but can be changed to whatever you want. If the view in the Position Locator palette is obscured by some- thing (a roof, perhaps), you may want to set the Preview visual style property to Hidden Pick to expand or collapse the message Figure 21-4. This message from the InfoCenter shows the keys that can be used to navigate through an animation. FOV Position Target Figure 21-5. The Position Locator palette.
