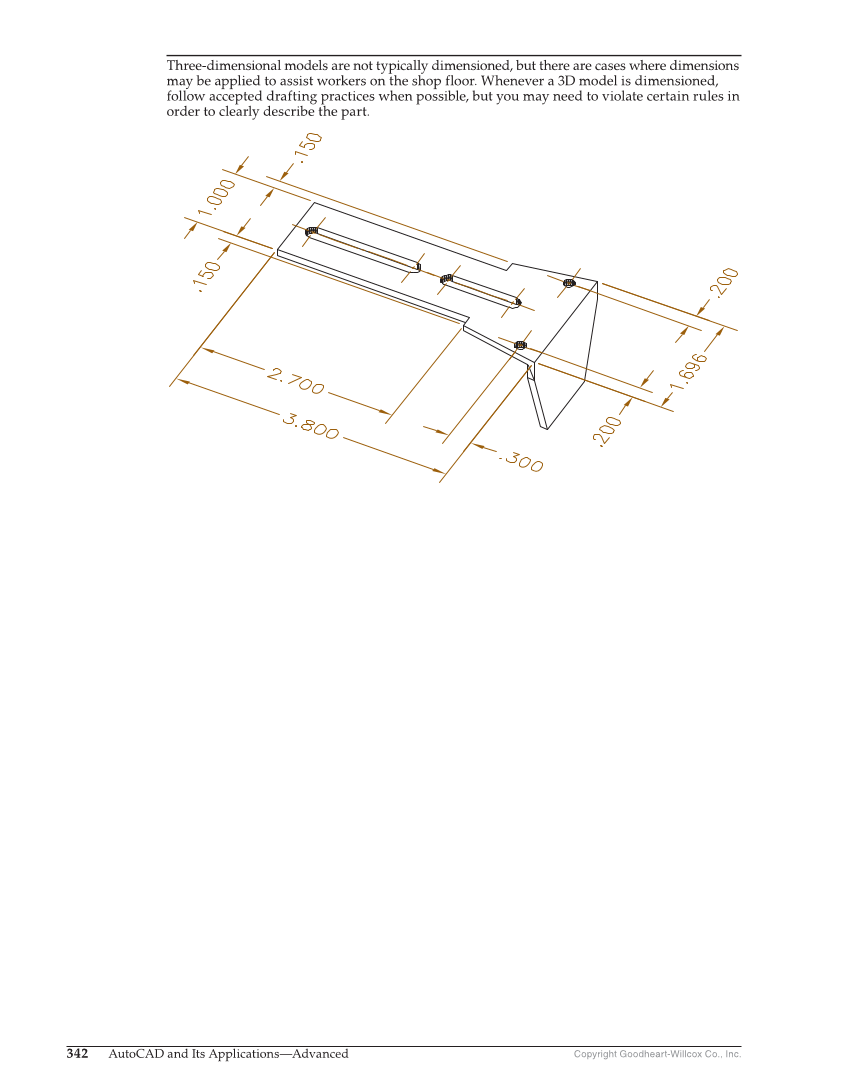

Copyright Goodheart-Willcox Co., Inc. 342 AutoCAD and Its Applications—Advanced Three-dimensional models are not typically dimensioned, but there are cases where dimensions may be applied to assist workers on the shop floor. Whenever a 3D model is dimensioned, follow accepted drafting practices when possible, but you may need to violate certain rules in order to clearly describe the part.
