Summary
❚ The body and frame support, stop, and enclose
the vehicle.
❚ The engine provides dependable, effi cient power
for propulsion and electrical systems.
❚ The computer system uses electronic and electri-
cal devices to monitor and control various auto
assemblies.
❚ The fuel system provides the correct mixture of air
and fuel for effi cient and complete combustion.
❚ Electrical systems operate the electrical-electronic
circuits, components, and devices, as well as pro-
pulsion in hybrid vehicles.
❚ The cooling system maintains a constant operating
temperature for improved combustion effi ciency.
❚ The lubrication system reduces friction between
moving parts inside the engine.
❚ Emission control systems reduce air pollution
produced by the vehicle.
❚ Drive train systems transfer turning force from the
engine crankshaft and/or the motor-generator to
the drive wheels.
Internal
combustion
engine
Motor-generator
HV battery
HV power
control module
HV power
cables

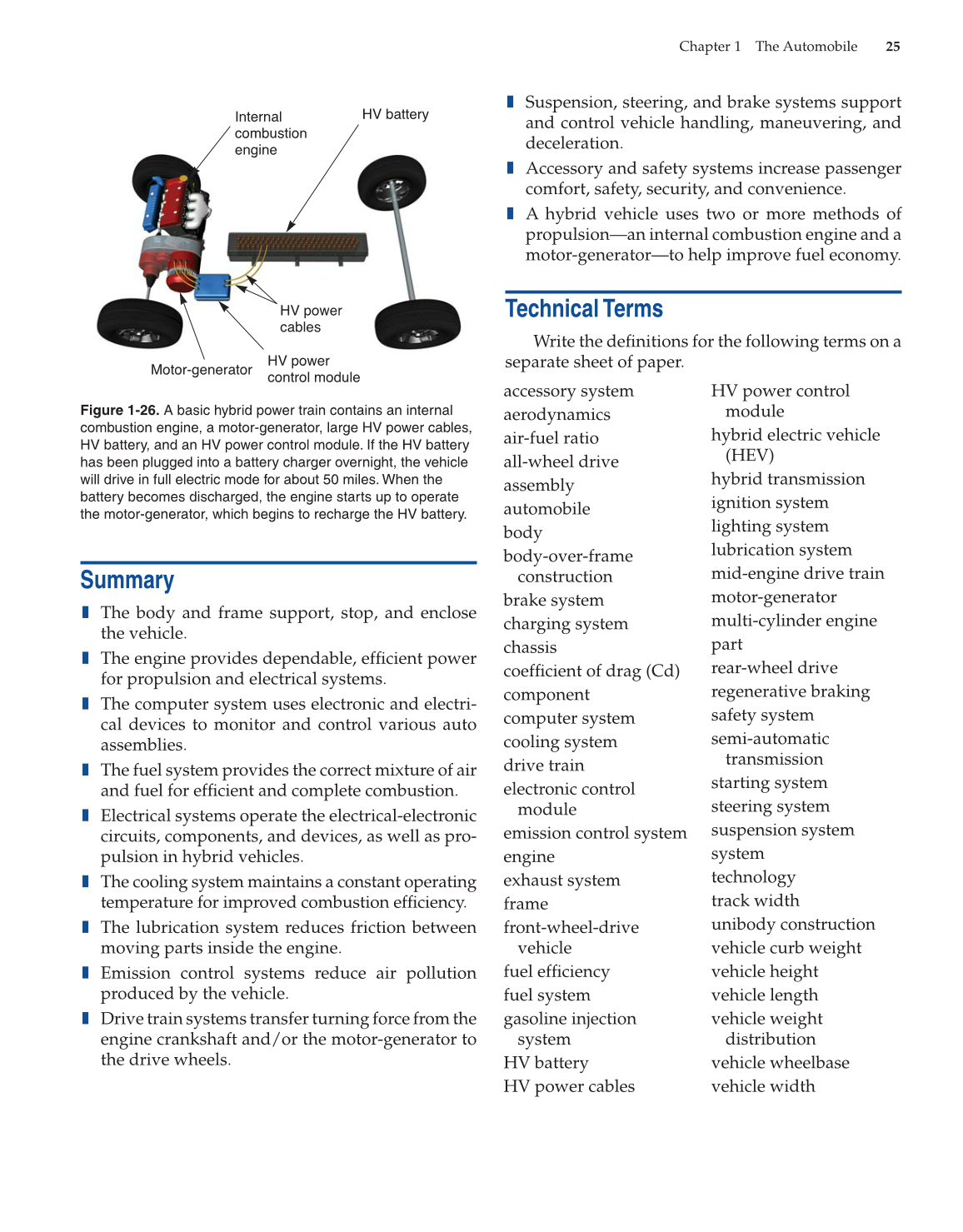

Figure 1-26. A basic hybrid power train contains an internal
combustion engine, a motor-generator, large HV power cables,
HV battery, and an HV power control module. If the HV battery
has been plugged into a battery charger overnight, the vehicle
will drive in full electric mode for about 50 miles. When the
battery becomes discharged, the engine starts up to operate
the motor-generator, which begins to recharge the HV battery.
❚ Suspension, steering, and brake systems support
and control vehicle handling, maneuvering, and
deceleration.
❚ Accessory and safety systems increase passenger
comfort, safety, security, and convenience.
❚ A hybrid vehicle uses two or more methods of
propulsion—an internal combustion engine and a
motor-generator—to help improve fuel economy.
Technical Terms
Write the defi nitions for the following terms on a
separate sheet of paper.
accessory system
aerodynamics
air-fuel ratio
all-wheel drive
assembly
automobile
body
body-over-frame
construction
brake system
charging system
chassis
coeffi cient of drag (Cd)
component
computer system
cooling system
drive train
electronic control
module
emission control system
engine
exhaust system
frame
front-wheel-drive
vehicle
fuel effi ciency
fuel system
gasoline injection
system
HV battery
HV power cables
HV power control
module
hybrid electric vehicle
(HEV)
hybrid transmission
ignition system
lighting system
lubrication system
mid-engine drive train
motor-generator
multi-cylinder engine
part
rear-wheel drive
regenerative braking
safety system
semi-automatic
transmission
starting system
steering system
suspension system
system
technology
track width
unibody construction
vehicle curb weight
vehicle height
vehicle length
vehicle weight
distribution
vehicle wheelbase
vehicle width
