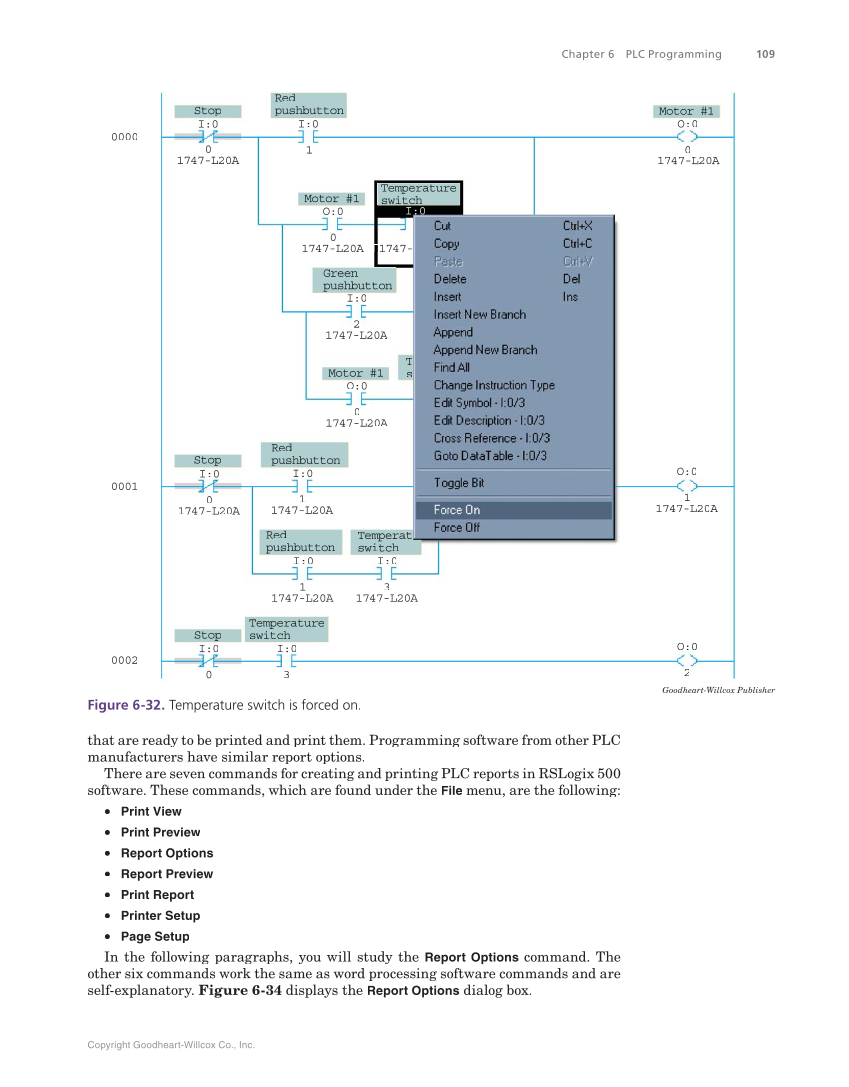

Copyright Goodheart-Willcox Co., Inc. Chapter 6 PLC Programming 109 that are ready to be printed and print them. Programming software from other PLC manufacturers have similar report options. There are seven commands for creating and printing PLC reports in RSLogix 500 software. These commands, which are found under the File menu, are the following: • Print View • Print Preview • Report Options • Report Preview • Print Report • Printer Setup • Page Setup In the following paragraphs, you will study the Report Options command. The other six commands work the same as word processing software commands and are self-explanatory. Figure 6-34 displays the Report Options dialog box. 0000 0002 0001 Red pushbutton Green pushbutton I:0 1 Stop I:0 0 1747-L20A 1747-L20A 1747- Motor #1 O:0 0 1747-L20A Motor #1 O:0 I:0 0 1747-L20A I:0 2 1747-L20A Motor #1 O:0 0 1747-L20A Stop I:0 0 Red pushbutton 1747-L20A I:0 1 Red pushbutton 1747-L20A I:0 1 Temperat switch 1747-L20A I:0 3 Temperature switch I:0 3 I:0 0 Stop 1747-L20A O:0 1 O:0 2 Temperature switch T s Goodheart-Willcox Publisher Figure 6-32. Temperature switch is forced on.
