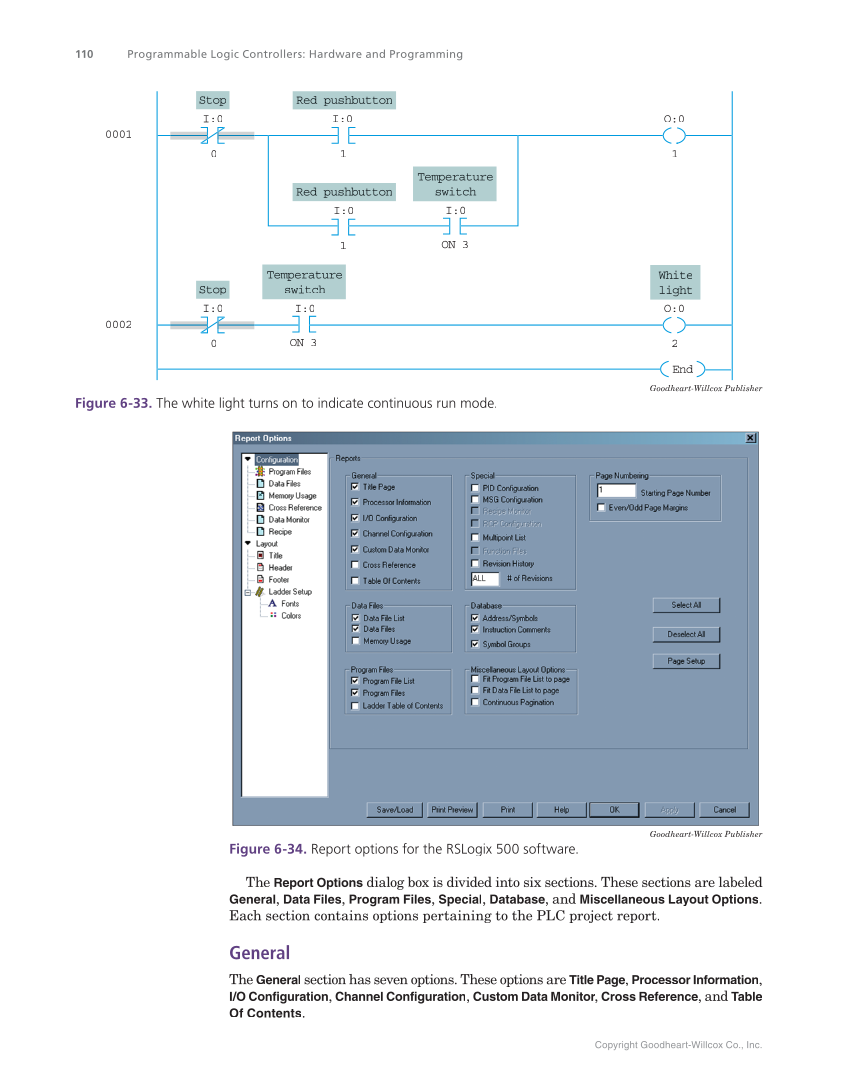

Copyright Goodheart-Willcox Co., Inc. 110 Programmable Logic Controllers: Hardware and Programming 0001 0002 Stop Red pushbutton O:0 I:0 I:0 Temperature switch I:0 ON 3 1 0 1 Stop O:0 I:0 0 2 Red pushbutton I:0 1 Temperature switch I:0 ON 3 End White light Goodheart-Willcox Publisher Figure 6-33. The white light turns on to indicate continuous run mode. Goodheart-Willcox Publisher Figure 6-34. Report options for the RSLogix 500 software. The Report Options dialog box is divided into six sections. These sections are labeled General, Data Files, Program Files, Special, Database, and Miscellaneous Layout Options. Each section contains options pertaining to the PLC project report. General The General section has seven options. These options are Title Page, Processor Information, I/O Configuration, Channel Configuration, Custom Data Monitor, r Cross Reference, and Table Of Contents.
