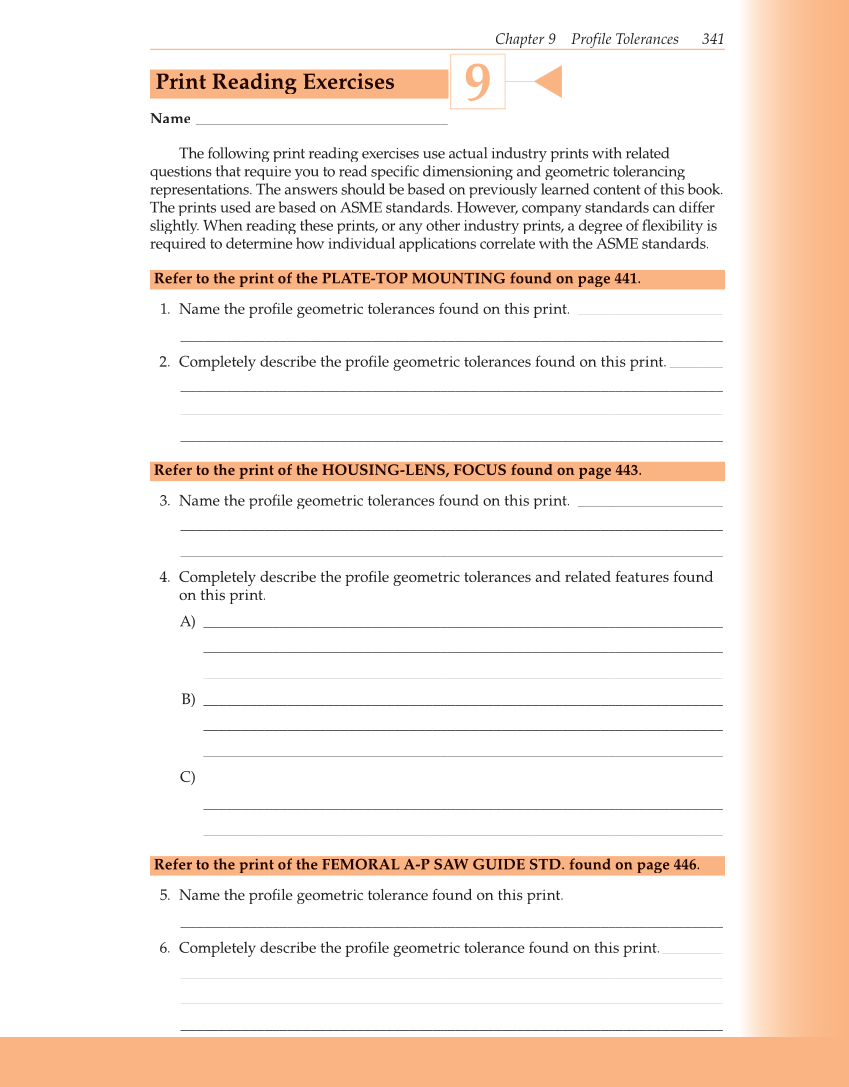

Chapter 9 Profile Tolerances 341 Print Reading Exercises Name _________________________________ The following print reading exercises use actual industry prints with related questions that require you to read specifi c dimensioning and geometric tolerancing representations. The answers should be based on previously learned content of this book. The prints used are based on ASME standards. However, company standards can differ slightly. When reading these prints, or any other industry prints, a degree of fl exibility is required to determine how individual applications correlate with the ASME standards. Refer to the print of the PLATE-TOP MOUNTING found on page 441. 1. Name the profi le geometric tolerances found on this print. ___________________ _______________________________________________________________________ 2. Completely describe the profi le geometric tolerances found on this print. _______ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ Refer to the print of the HOUSING-LENS, FOCUS found on page 443. 3. Name the profi le geometric tolerances found on this print. ___________________ _______________________________________________________________________ _______________________________________________________________________ 4. Completely describe the profi le geometric tolerances and related features found on this print. A) ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ B) ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ C) ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ Refer to the print of the FEMORAL A-P SAW GUIDE STD. found on page 446. 5. Name the profi le geometric tolerance found on this print. ____________________ _______________________________________________________________________ 6. Completely describe the profi le geometric tolerance found on this print. ________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 9
