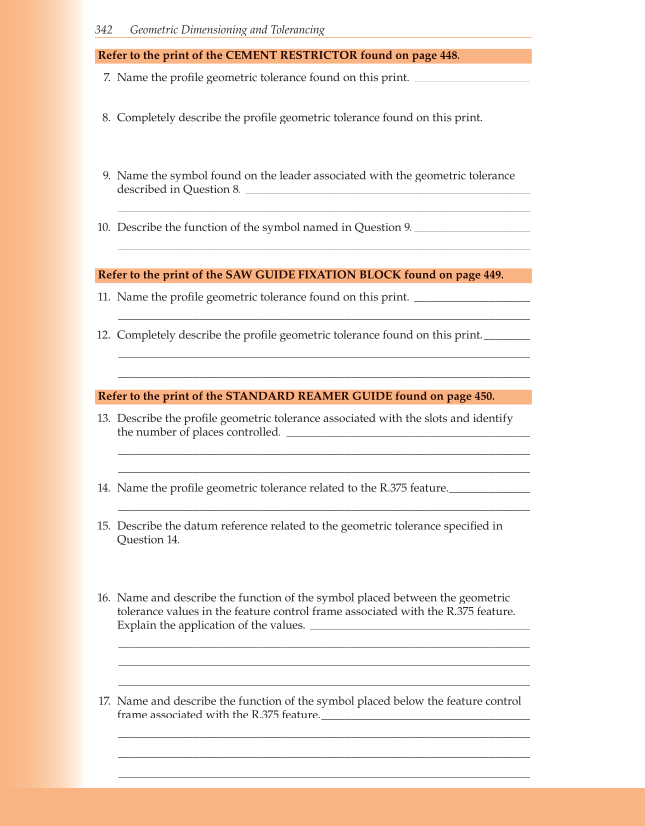

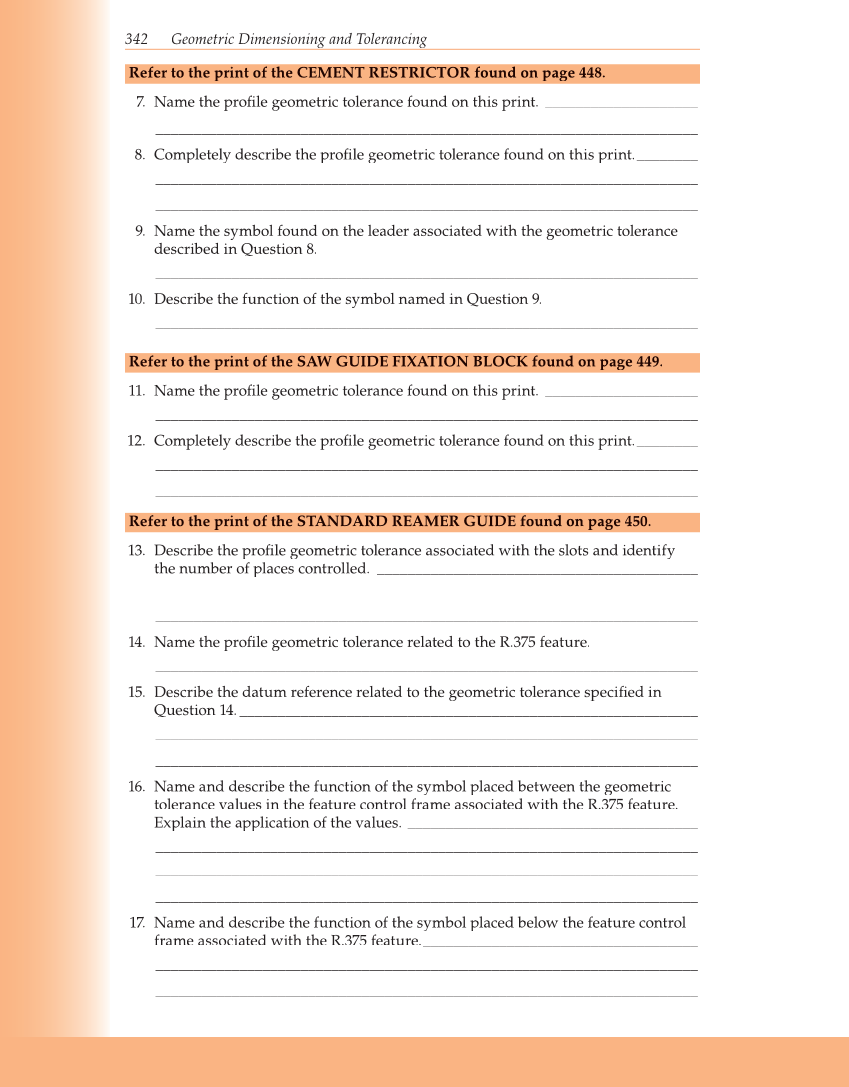

342 Geometric Dimensioning and Tolerancing Refer to the print of the CEMENT RESTRICTOR found on page 448. 7. Name the profi le geometric tolerance found on this print. ____________________ _______________________________________________________________________ 8. Completely describe the profi le geometric tolerance found on this print. ________ _______________________________________________________________________ _______________________________________________________________________ 9. Name the symbol found on the leader associated with the geometric tolerance described in Question 8. _________________________________________________ _______________________________________________________________________ 10. Describe the function of the symbol named in Question 9. ____________________ _______________________________________________________________________ Refer to the print of the SAW GUIDE FIXATION BLOCK found on page 449. 11. Name the profi le geometric tolerance found on this print. ____________________ _______________________________________________________________________ 12. Completely describe the profi le geometric tolerance found on this print. ________ _______________________________________________________________________ _______________________________________________________________________ Refer to the print of the STANDARD REAMER GUIDE found on page 450. 13. Describe the profi le geometric tolerance associated with the slots and identify the number of places controlled. __________________________________________ _______________________________________________________________________ _______________________________________________________________________ 14. Name the profi le geometric tolerance related to the R.375 feature. ______________ _______________________________________________________________________ 15. Describe the datum reference related to the geometric tolerance specifi ed in Question 14. ____________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 16. Name and describe the function of the symbol placed between the geometric tolerance values in the feature control frame associated with the R.375 feature. Explain the application of the values. ______________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 17. Name and describe the function of the symbol placed below the feature control frame associated with the R.375 feature. ____________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________
