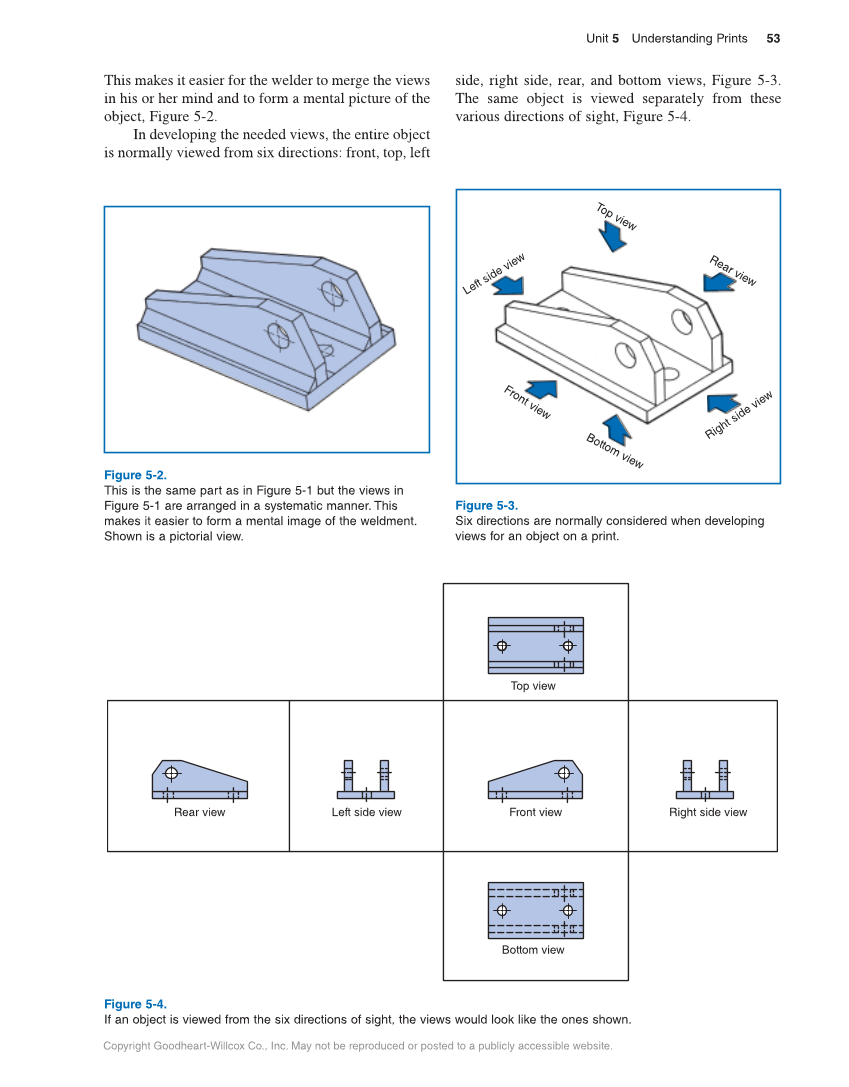

Unit 5 Understanding Prints 53 Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. This makes it easier for the welder to merge the views in his or her mind and to form a mental picture of the object, Figure 5-2. In developing the needed views, the entire object is normally viewed from six directions: front, top, left side, right side, rear, and bottom views, Figure 5-3. The same object is viewed separately from these various directions of sight, Figure 5-4. Figure 5-2. This is the same part as in Figure 5-1 but the views in Figure 5-1 are arranged in a systematic manner. This makes it easier to form a mental image of the weldment. Shown is a pictorial view. Figure 5-3. Six directions are normally considered when developing views for an object on a print. Left side view Top view Front view Bottom view Right side view Rear view Figure 5-4. If an object is viewed from the six directions of sight, the views would look like the ones shown. Top view Bottom view Left side view Front view Right side view Rear view
