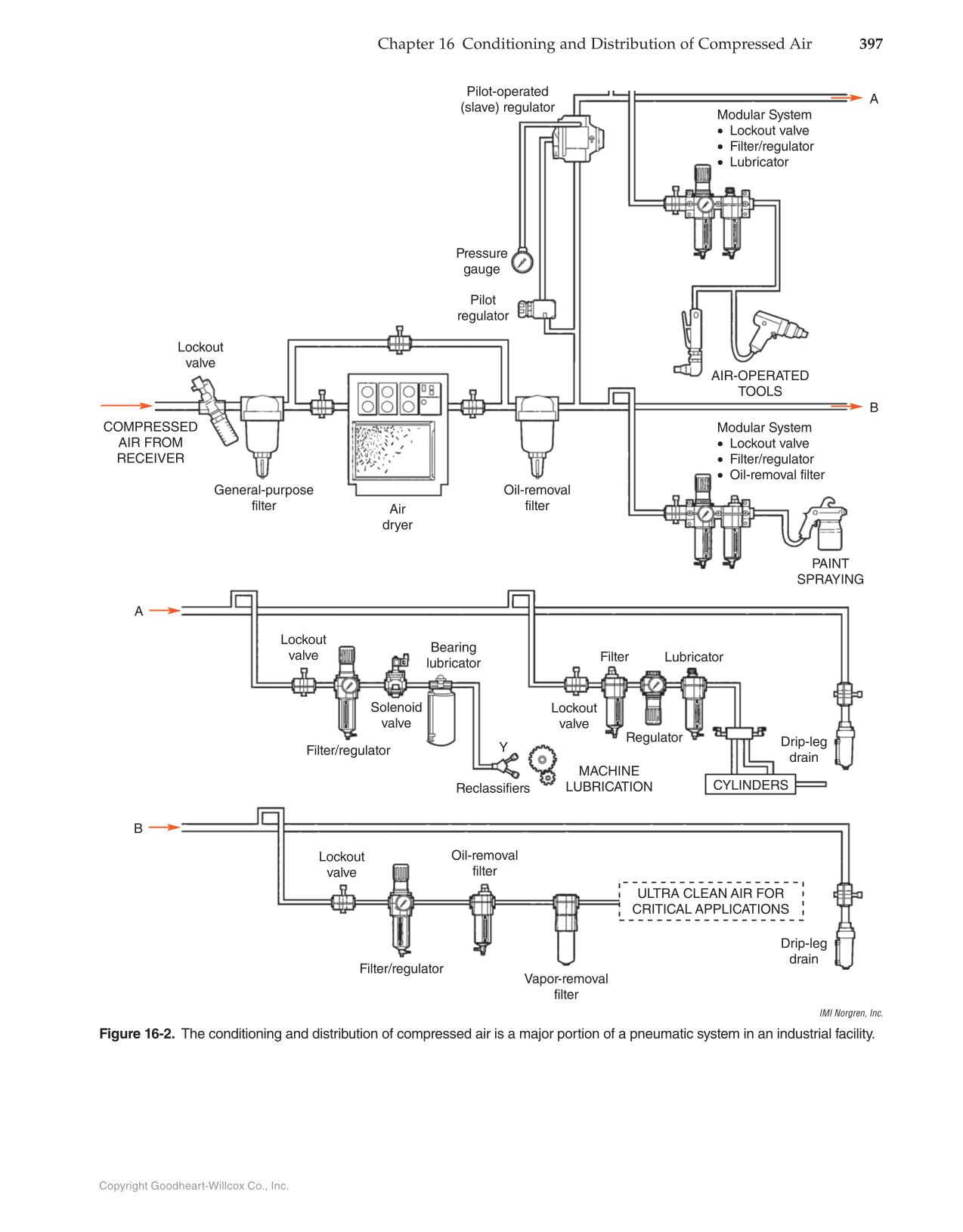

Copyright Goodheart-Willcox Co., Inc. Chapter 16 Conditioning and Distribution of Compressed Air 397 B A B A Pilot-operated (slave) regulator Modular System Lockout valve Filter/regulator Lubricator Modular System Lockout valve Filter/regulator Oil-removal filter Pressure gauge Pilot regulator Lockout valve General-purpose filter COMPRESSED AIR FROM RECEIVER Air dryer Oil-removal filter AIR-OPERATED TOOLS PAINT SPRAYING MACHINE LUBRICATION Lockout valve Lockout valve Solenoid valve Filter/regulator Bearing lubricator Y Reclassifiers Lockout valve Filter Regulator Lubricator CYLINDERS Drip-leg drain Drip-leg drain Filter/regulator Oil-removal filter Vapor-removal filter ULTRA CLEAN AIR FOR CRITICAL APPLICATIONS IMI Norgren, Inc. Figure 16-2. The conditioning and distribution of compressed air is a major portion of a pneumatic system in an industrial facility.
