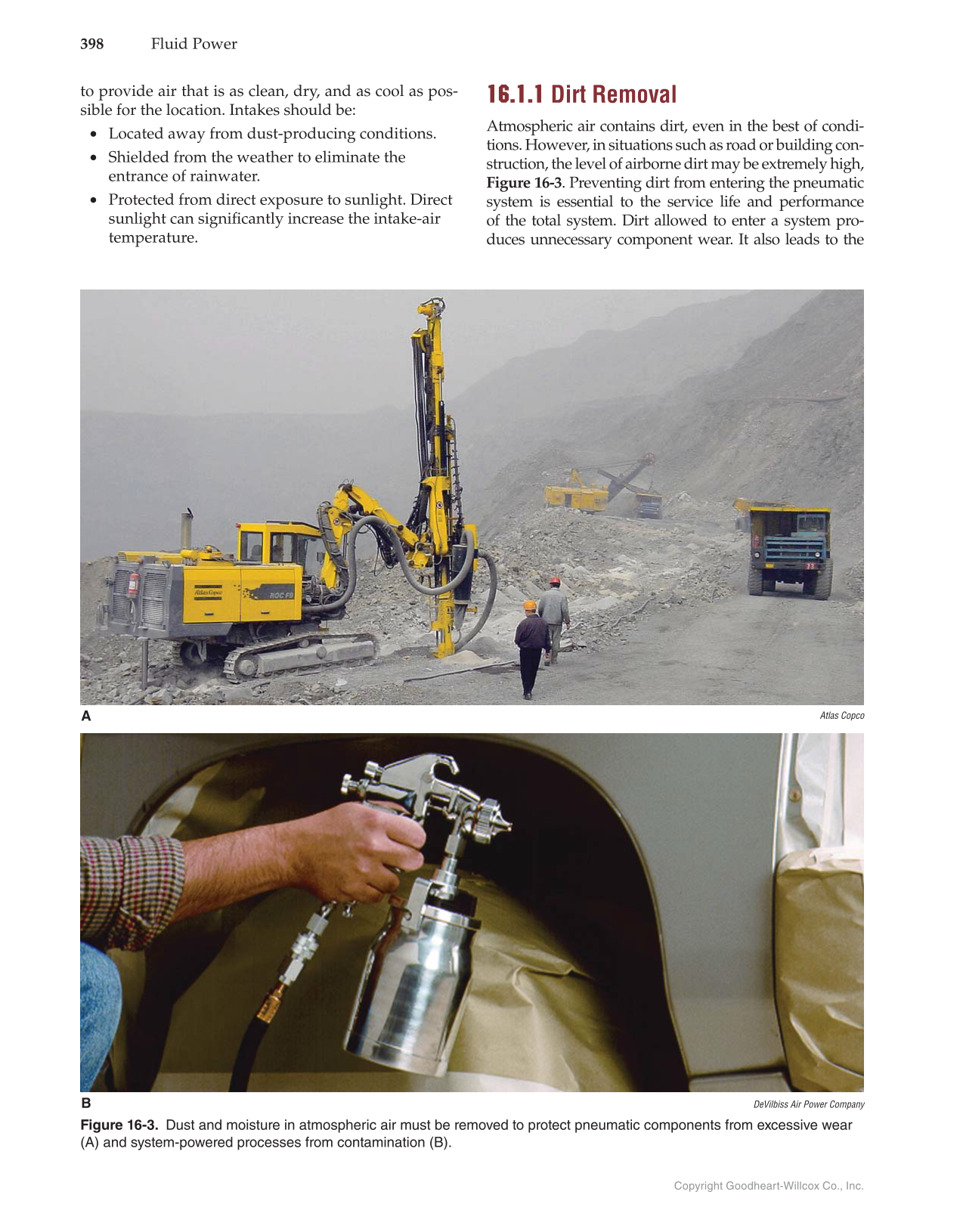

Copyright Goodheart-Willcox Co., Inc. 398 Fluid Power 16.1.1 Dirt Removal Atmospheric air contains dirt, even in the best of condi- tions. However, in situations such as road or building con- struction, the level of airborne dirt may be extremely high, Figure 16-3. Preventing dirt from entering the pneumatic system is essential to the service life and performance of the total system. Dirt allowed to enter a system pro- duces unnecessary component wear. It also leads to the to provide air that is as clean, dry, and as cool as pos- sible for the location. Intakes should be: • Located away from dust-producing conditions. • Shielded from the weather to eliminate the entrance of rainwater. • Protected from direct exposure to sunlight. Direct sunlight can signifi cantly increase the intake-air temperature. B A DeVilbiss Air Power Company Figure 16-3. Dust and moisture in atmospheric air must be removed to protect pneumatic components from excessive wear (A) and system-powered processes from contamination (B). Atlas Copco
