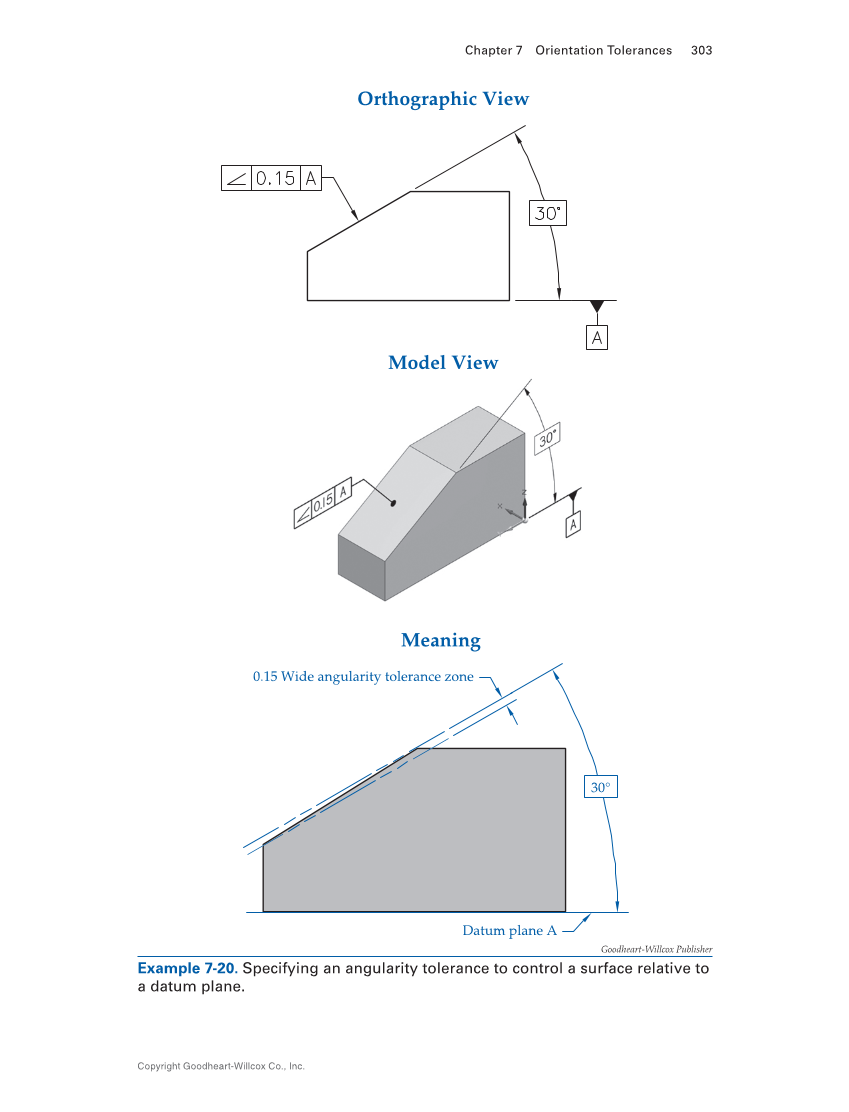

Chapter 7 Orientation Tolerances 303 Copyright Goodheart-Willcox Co., Inc. 30° Meaning 0.15 Wide angularity tolerance zone Datum plane A Orthographic View Model View Goodheart-Willcox Publisher Example 7-20. Specifying an angularity tolerance to control a surface relative to a datum plane.
