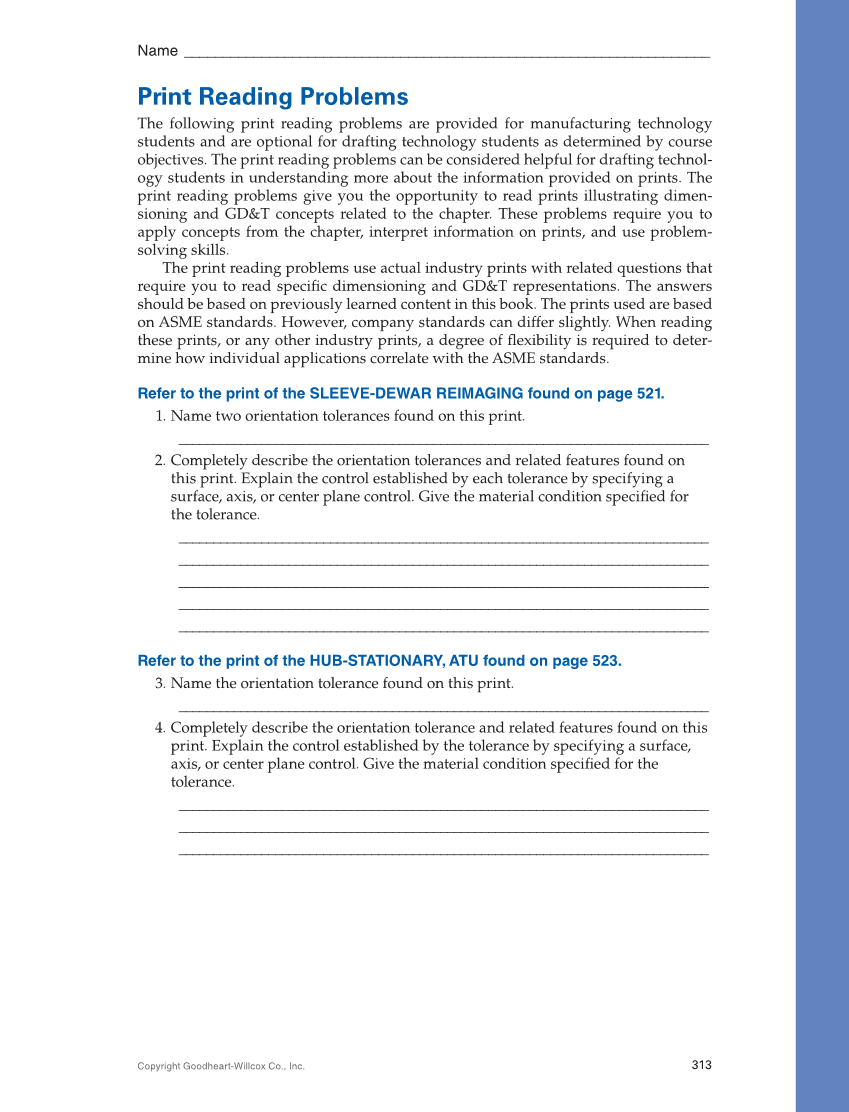

Copyright Goodheart-Willcox Co., Inc. Name _____________________________________________________________________ 313 Print Reading Problems The following print reading problems are provided for manufacturing technology students and are optional for drafting technology students as determined by course objectives. The print reading problems can be considered helpful for drafting technol- ogy students in understanding more about the information provided on prints. The print reading problems give you the opportunity to read prints illustrating dimen- sioning and GD&T concepts related to the chapter. These problems require you to apply concepts from the chapter, interpret information on prints, and use problem- solving skills. The print reading problems use actual industry prints with related questions that require you to read specific dimensioning and GD&T representations. The answers should be based on previously learned content in this book. The prints used are based on ASME standards. However, company standards can differ slightly. When reading these prints, or any other industry prints, a degree of flexibility is required to deter- mine how individual applications correlate with the ASME standards. Refer to the print of the SLEEVE-DEWAR REIMAGING found on page 521. 1. Name two orientation tolerances found on this print. _ _____________________________________________________________________________ 2. Completely describe the orientation tolerances and related features found on this print. Explain the control established by each tolerance by specifying a surface, axis, or center plane control. Give the material condition specified for the tolerance. _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ Refer to the print of the HUB-STATIONARY, ATU found on page 523. 3. Name the orientation tolerance found on this print. _ _____________________________________________________________________________ 4. Completely describe the orientation tolerance and related features found on this print. Explain the control established by the tolerance by specifying a surface, axis, or center plane control. Give the material condition specified for the tolerance. _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________
