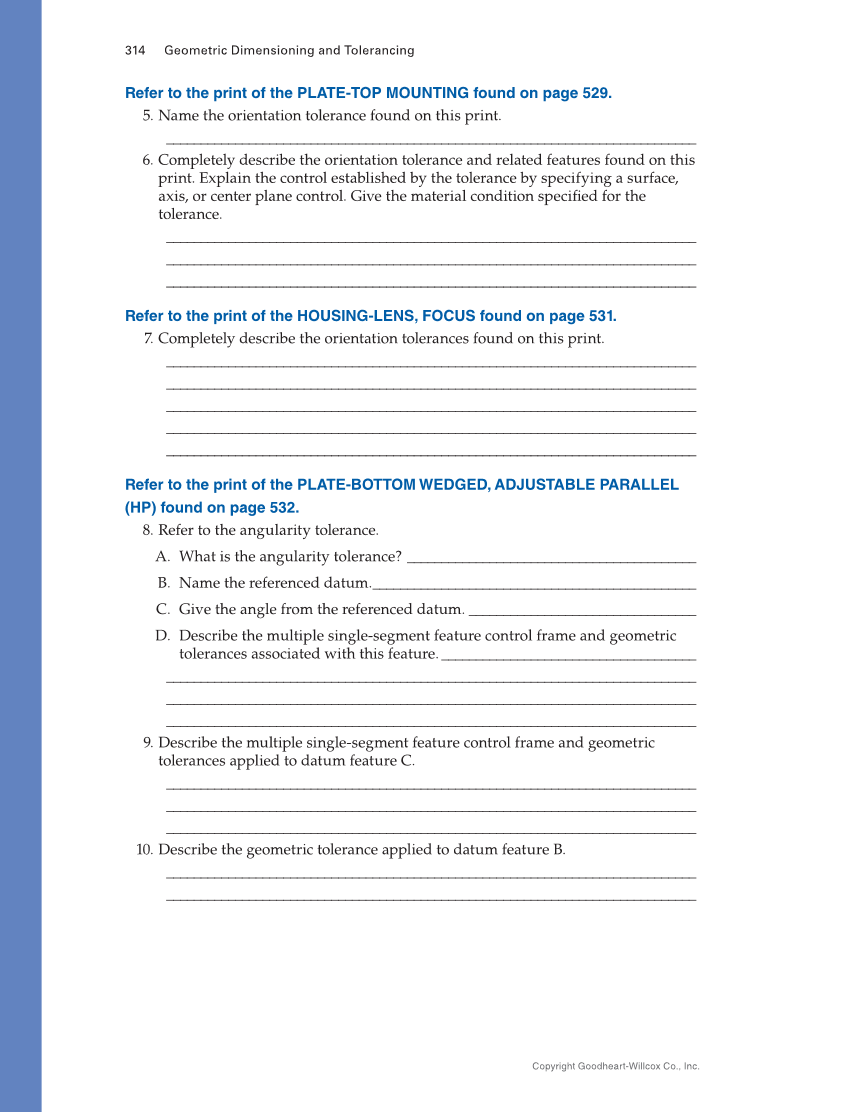

314 Geometric Dimensioning and Tolerancing Copyright Goodheart-Willcox Co., Inc. Refer to the print of the PLATE-TOP MOUNTING found on page 529. 5. Name the orientation tolerance found on this print. _ _____________________________________________________________________________ 6. Completely describe the orientation tolerance and related features found on this print. Explain the control established by the tolerance by specifying a surface, axis, or center plane control. Give the material condition specified for the tolerance. _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ Refer to the print of the HOUSING-LENS, FOCUS found on page 531. 7. Completely describe the orientation tolerances found on this print. _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ Refer to the print of the PLATE-BOTTOM WEDGED, ADJUSTABLE PARALLEL (HP) found on page 532. 8. Refer to the angularity tolerance. A. What is the angularity tolerance?_ __________________________________________ B. Name the referenced datum.________________________________________________ C. Give the angle from the referenced datum._ _________________________________ D. Describe the multiple single-segment feature control frame and geometric tolerances associated with this feature.______________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ 9. Describe the multiple single-segment feature control frame and geometric tolerances applied to datum feature C. _ _____________________________________________________________________________ _ _____________________________________________________________________________ _ _____________________________________________________________________________ 10. Describe the geometric tolerance applied to datum feature B. _ _____________________________________________________________________________ _ _____________________________________________________________________________
